200A Loop Resistance Tester for Large Current and Micro Resistance Test

Wuhan GDZX Power Equipment Co., Ltd.
  • After-sales Service：Provided
  • Warranty：1 Year
  • Control：Computer Control
  • Test Report：Yes
  • Test Current：DC 50A,100A,150A,200A fixed output
  • Measurement Accuracy：0.5%

Base Info

  • Model NO.：ZXHL-200A
  • Display：three and a half LCD
  • Power Supply：AC220V 50Hz
  • Transport Package：Wooden Case
  • Specification：Universal Testing Machine
  • Trademark：GDZX
  • Origin：China
  • HS Code：9030820000
  • Production Capacity：1200sets,Year

Description

Work EnvironmentTemperature: 10ºC~40ºCHumidity:≤80 %RHDimension380*350*260mmWeight10Kg(Accessories excluded)
      200A Loop Resistance Tester for Large Current and Micro Resistance Test200A Loop Resistance Tester for Large Current and Micro Resistance Test

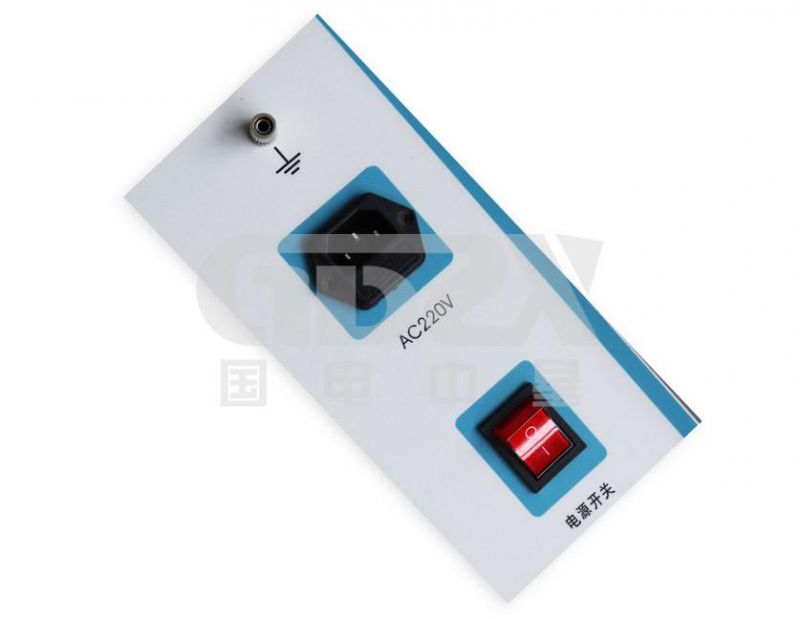

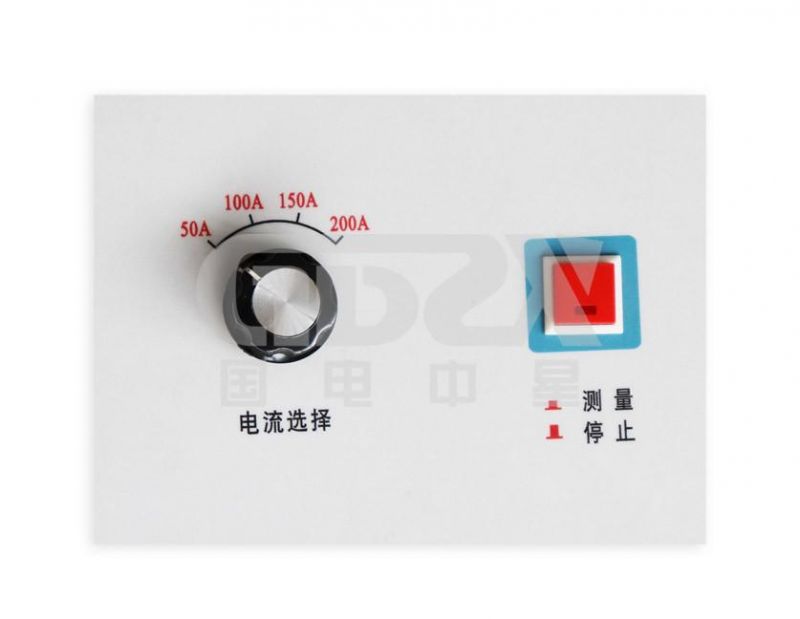

      Device display
      200A Loop Resistance Tester for Large Current and Micro Resistance Test200A Loop Resistance Tester for Large Current and Micro Resistance Test
      About GDZX
      Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
      200A Loop Resistance Tester for Large Current and Micro Resistance Test      200A Loop Resistance Tester for Large Current and Micro Resistance Test200A Loop Resistance Tester for Large Current and Micro Resistance Test200A Loop Resistance Tester for Large Current and Micro Resistance Test
      Shipping and packaging
      200A Loop Resistance Tester for Large Current and Micro Resistance TestFeatures


      1. High current: For latest power supply technology, the tester can continuously output high current which overcomes the weakness of instantaneous current produced by pulsed power. It can effectively breakdown/puncture the oxide layer of the switches and then get precise results.
      2. Strong anti-interference ability: The last number of test data will stably show in the LCD screen only with ±1d error even in strong Interference situation.
      3. Long service life: All the precise resistances used in the tester can reduce the temperature's impact on the measurement results.
      4. Convenience: Small size, light weight.
