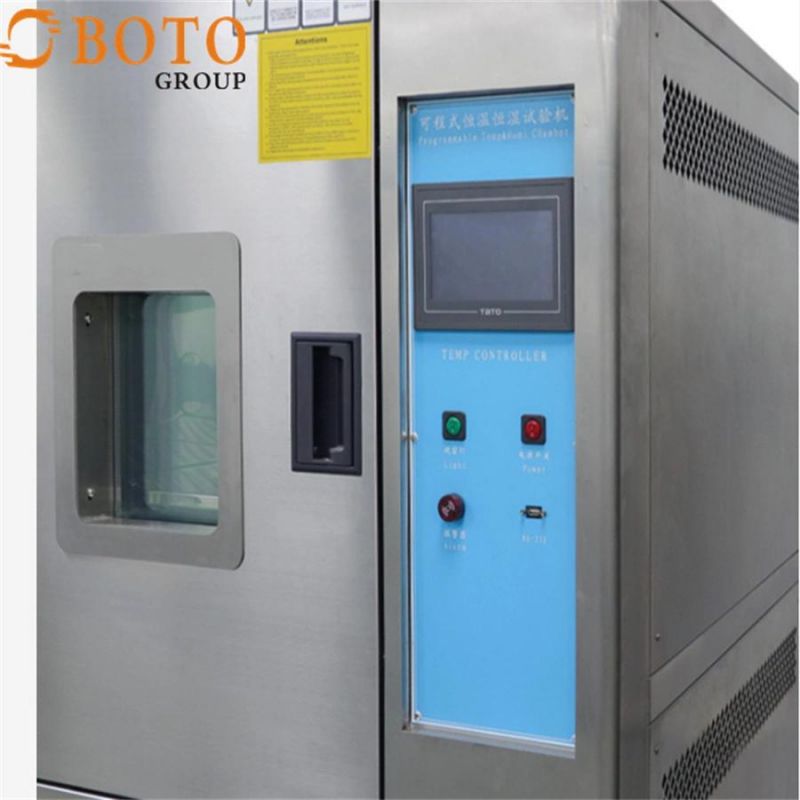

Environmental Test Climatic Chambers -70 Degree to +150 Degree

Boto Group Ltd
  • After-sales Service：12 Months
  • Power Supply：AC380V
  • Certification：CE, TUV, ISO
  • Warranty：3 Years
  • Temperature Range：-70ºC~+150ºC
  • Transport Package：Strong Wooden Case

Base Info

  • Model NO.：B-T
  • Specification：1000L
  • Trademark：BOTO
  • Origin：China
  • HS Code：85141090
  • Production Capacity：60000sets ,Month

Description

Absorbs residual moisture and acidic substances in the refrigerant of the refrigeration system, and filters out solid rest particles and copper shavings in the system to protect the normal operation of the expansion valve and capillary from ice and dirty plugging Environmental Test Climatic Chambers -70 Degree to +150 DegreeControl SystemScreen display function1. Temperature and humidity setting (SV) actual (PV) value is displayed directly
2. Can display the execution program number, segment, remaining time and cycle number, running time display
3. Program editing and graphic curve display
4. With a separate program editing screen, each page can enter 4 segments of temperature and humidity, time
5. Fixed point or program action status display
6. Language conversion can switch Chinese / English
7.7 inch true color display screenProgram capacity and control function1. Program quantity that can be used: maximum 120 groups, 1 program can be composed of 1 ~ 99 stages, capacity: 1200 stages
2. Commands can be executed repeatedly: each command can be up to 999 times, the temperature and humidity slope can be set by the time axis; 3. The program can be set to connect to use; the production of the program is easy to use conversational operation; with editing, Clear, insert and other functions; group time signal output control (can control the ON / OFF action of the test object)
4. With 9 groups of PID parameter settings
5. With skipping and holding functions during program execution
6. With power-off program memory, it can automatically start and resume the program after power is restored
7. Data acquisition, export, view graphics function
8. PID automatic calculation and FUZZY control function
9. The screen can be adjusted for backlight, and the backlight time can be set
10. On-screen display protection function can be set to close regularly or manually
11. Program copy, COPY, connection function, edit experiment title and other program editing functions
12. With appointment start and shutdown function
13. With date and time adjustment function
14. Button and screen lock (LOCK) function
15. Standby picture viewing function and exception handling picture explanation functionCommunication interface1.R232 / 485 communication
2. Can display curves and obtain data
3. Can be used as a monitoring and remote control systemSetting methodChinese / English interface, touch inputOperation modeProgram method / fixed value methodPredetermined areaMaximum temperature range: 5 ºCDisplay resolutionTemperature:0.01ºC;Time:0.1minPower off memory functionCan set power failure recovery mode as: hot start / cold start / stopInputPlatinum resistanceStorage functionStandard configuration 2G SD card to record test data curve, can upload and download data, expand storage capacityEnvironmental Test Climatic Chambers -70 Degree to +150 Degree
Environmental Test Climatic Chambers -70 Degree to +150 DegreeEnvironmental Test Climatic Chambers -70 Degree to +150 DegreeEnvironmental Test Climatic Chambers -70 Degree to +150 Degree
Environmental Test Climatic Chambers -70 Degree to +150 Degree
Environmental Test Climatic Chambers -70 Degree to +150 DegreeOur Services

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.

Onsite Service:

1. Device installation;

2. Equipment Operation Test Technology training;

3. Equipment Calibration;

4. Daily maintenance and maintenance of equipment

Free technical training for visiting factories

24-hour Online contact

Free software upgrades

Free information:

1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)

Device Problem Handling:

1. Social media 24 hours online communication;

2. Mail Seamless Docking;

3. Video Conferencing;

4. Artificial free door-to-door service
