• Model NO.：YT-YS05BKN
• Dimension：550(L)*415(W)*790(H)mm
• Transport Package：Wooden Box
• Trademark：YANTE
• Origin：Hangzhou, China
• HS Code：9024800000

Basic Info.

Model NO. YT-YS05BKN Dimension 550(L)*415(W)*790(H)mm Transport Package Wooden Box Trademark YANTE Origin Hangzhou, China HS Code 9024800000

Product Description

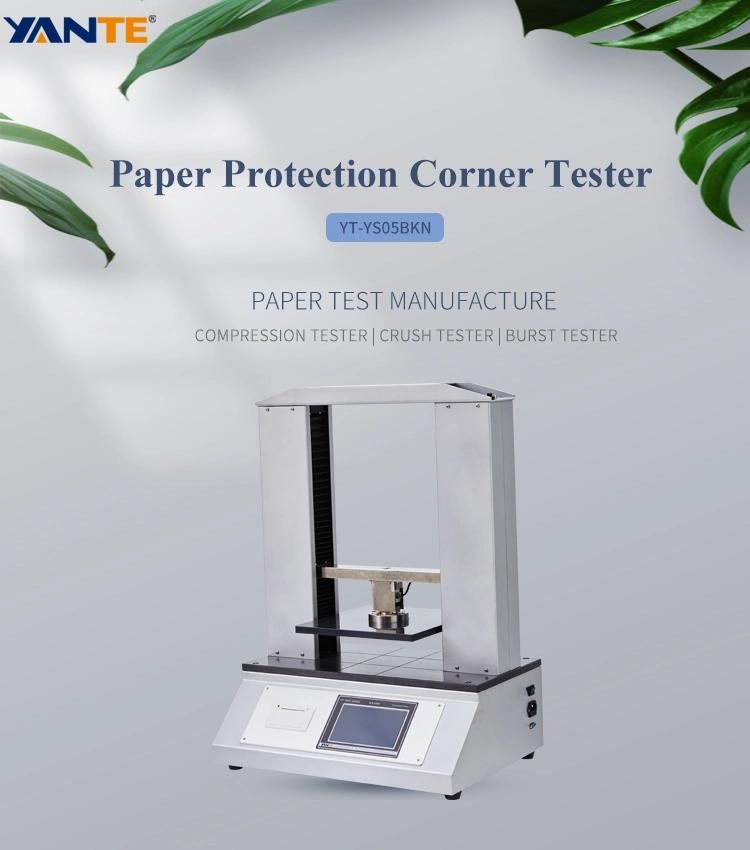

Paper Protection Corner Tester is a testing instrument used to measure the cross direction compressive strength and machine direction strength of paper corner guards. It is an ideal testing equipment for paper corner guard manufacturers, quality inspection agencies and other departments.



Product FeaturesThe ARM processor and 24-bit high-speed analog-to-digital converter improve the response speed and sampling accuracy of the instrument.Closed-loop servo stepping motor, ball screw, dual optical axis guide, stable operation and precise positioning.The 7-inch color touch screen displays the force-displacement curve in real time.Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.Features of automatic reset, data memory, overload protection and fault self-diagnosis.Cooperate with computer software for communication (purchased separately).

Standards
 BB/T 0023


Technical Parameters

No.	Parameter item	Technical index
1	Power Supply	AC(100~240)V,(50/60)Hz 100W
2	Working Environment	Temperature(10~35)ºC, Humidity≤ 85%
3	Display	7 inch color touch screen
4	Measuring range	5N~5kN
5	Indication accuracy	±1%(Range 5%~100%)
6	Measured Area	300×300 mm
7	Work Capacity	5~300 mm
8	Parallelism Between Plates	≤ 1:2000 (0.15mm)
9	The pressure plate shakes laterally	≤ 0.05mm
10	Machine direction compression test speed	10±2 mm/min(machine direction compression) (1~500mm/min adjustable)
11	cross direction compression test speed	100±10 mm/min(cross direction compression)(1~500mm/min adjustable)
12	Return Speed	1~500 mm/min adjustable
13	Print	Built-in thermal printer
14	Communication Interface	RS232(Default) (USB, WIFI optional)
15	Dimension	545×380×825 mm
16	Net Weight	62.5kg around
