10A 20kOhm DC Transformer Winding Resistance Tester
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- Output current：10A,5A,1A,200mA,400mA,40mA,<5mA
- Accuracy：0.2%+-2Micro ohm
- Resolution：0.1Micro ohm
- Operating temperature：-20-40centigrade
Base Info
- Model NO.：ZXR-10A
- Environment humidity：Less than or equal to 80%RH,No condensation
- Working power：AC220V
- Volume：400*220*320mm
- Weight：10kg
- Transport Package：Wooden Case or Carton
- Specification：Universal Testing Machine
- Trademark：GDZX
- Origin：China
- Production Capacity：1200sets,Year
Description
1. Output current:10A,5A,1A,200mA,400mA,40mA,<5mA
2. Range:0-180mΩ (10A)
180mΩ-360mΩ (5A)
360mΩ-1.8Ω (1A)
1.8Ω-4.5Ω (400mA)
4.5Ω-9Ω (200mA)
9Ω-45Ω (40mA)
45Ω-20kΩ (<5mA)
0mΩ-20kΩ (automatic)
3. Accuracy:0.2%±2μΩ
4. Resolution:0.1μΩ
5. Operating temperature:-20~40ºC
6. Environment humidity:≤80%RH,No condensation
7. Working power:AC220V
8. Volume:400×220×320mm
9. Weight:10kg
Product pictures
Features
1. The instrument has a large output current and is light in weight.
2. The instrument provides 7-speed output current selection, which can output up to 10A current.
3. The measuring range of the instrument is 0uΩ-20KΩ.
4. With perfect protection circuit, the performance is more reliable.
5. Lithium battery power supply for easy on-site operation.
6. The LCD prompt menu is easy to use.
7. It has sound and liquid crystal indicating discharge alarm, clear discharge index and reduce misoperation.
Company introduction
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user's questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others. Warranty* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.* Our products are guaranteed with one year warranty and life-long tech support.* Provide solutions within 24 hours when there is problems feedback from customer.
PACKING AND SHIPPING
(1)We will ship products within 8-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.(5)After shipping, we will remain attentive till goods well received. If you need detailed specification, please feel free to contact us.

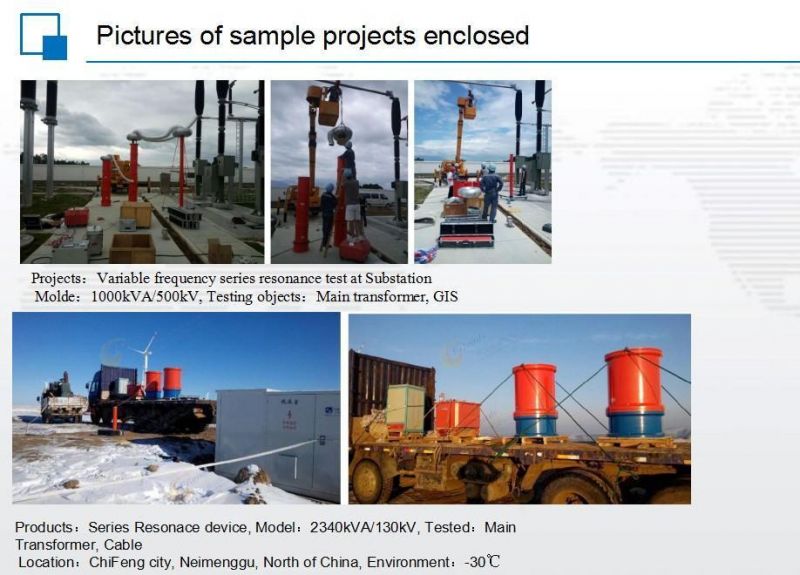

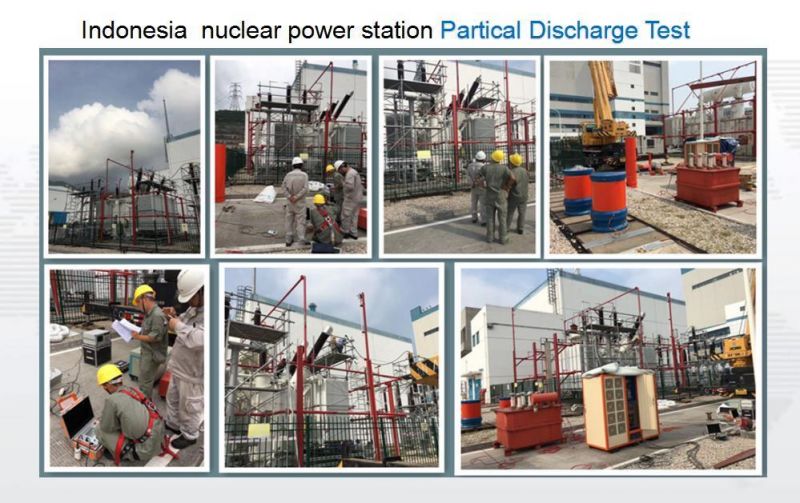

Test cases
