• Model NO.：HJ-2
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-2 Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Test purposes

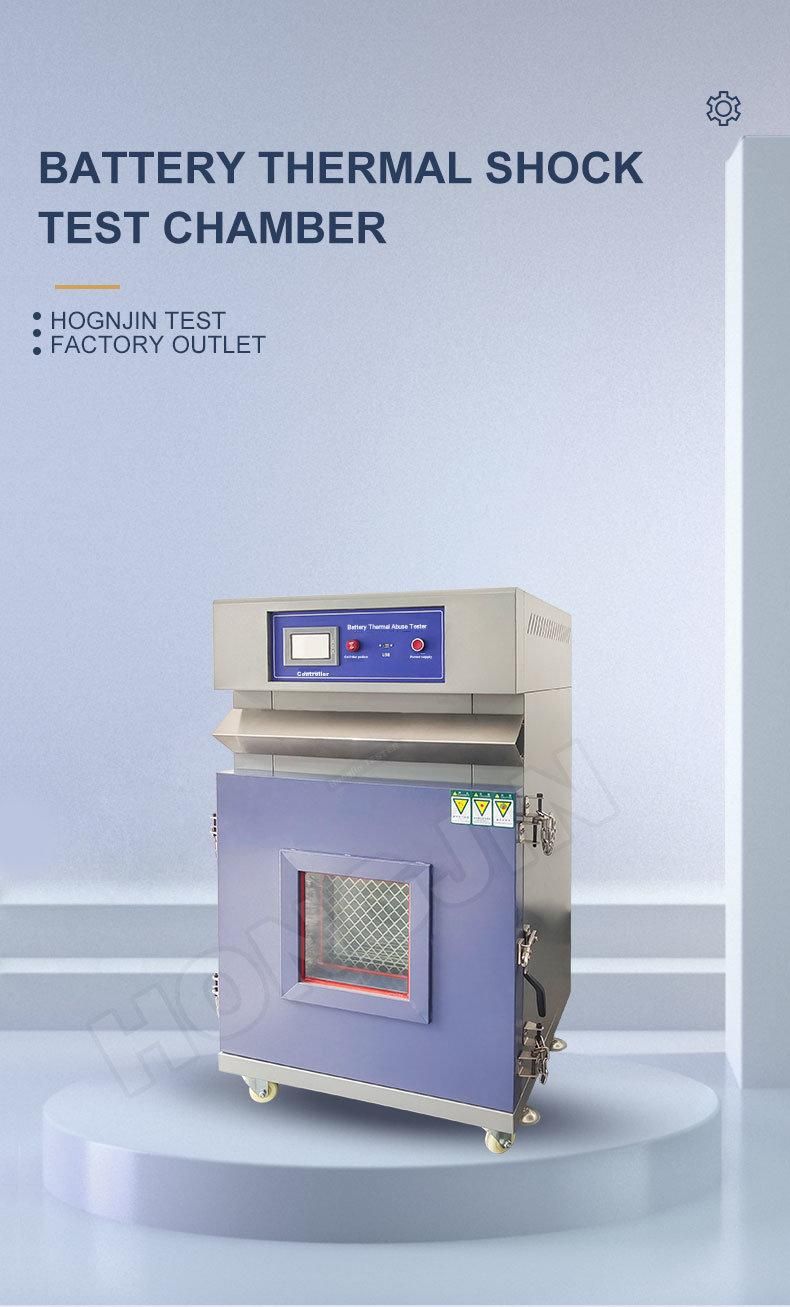

The battery thermal shock tester simulates that the battery is placed in a high temperature box with natural convection or forced ventilation, and is heated to the set test temperature at a certain heating rate and maintained for a certain period of time. The hot air circulation system can ensure uniform working temperature distribution.

Product Application
Battery thermal shock test chamber is an analog battery placed in a high temperature tank with natural convection or forced ventilation, and is heated to a set test temperature at a certain heating rate for a certain period of time. The hot air circulation system ensures uniform distribution of working temperature.

Test Method :
Put the battery sample into the test box with the original temperature of  20±5ºC , then rise the temperature to 130±2ºC at the rate of (5±2ºC) per minute. Keep the temperature for 10 min. The battery is qualified if no fire or explosion.

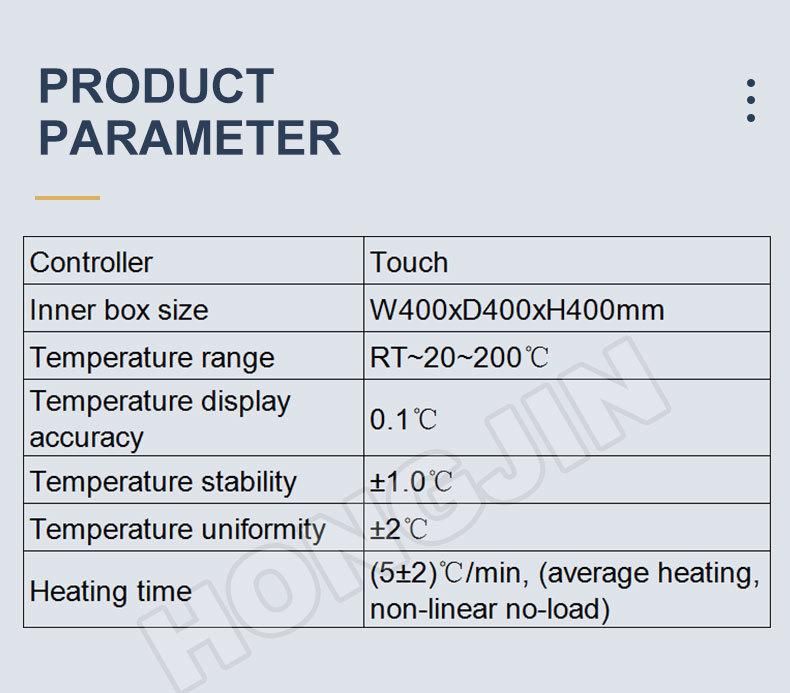

Controller:	Touch
Inner box size:	W400xD400xH400mm
Temperature range:	RT~20~200ºC
Temperature display accuracy:	0.1ºC
Temperature stability:	±1.0ºC
Temperature uniformity:	±2ºC
Heating time:	(5±2)ºC/min, (average temperature rise, non-linear no-load)
