• Model NO.：IT-800A
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Display Method：English Display
• Printer：Within
• Transport Package：Wooden Case
• Specification：800mm* 335mm*490mm
• Trademark：Top
• Origin：Chongqing, China
• HS Code：9027
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. IT-800A Loading Method Static Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Display Method English Display Printer Within Transport Package Wooden Case Specification 800mm* 335mm*490mm Trademark Top Origin Chongqing, China HS Code 9027 Production Capacity 1000 Sets/Month

Product Description

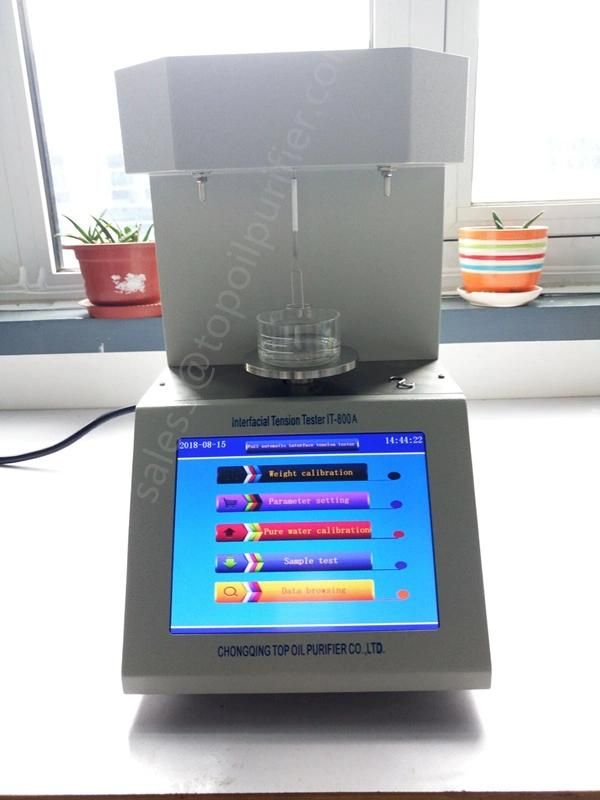

IT-800A High Quality Fully Automatic Surface/Interface Tension Tester
Application:
IT-800A  Fully Automatic Surface/Interface Tension Tester, adopting ASTM D971 "platinum ring method", tests interfacial tension for various liquids (between liquid and air) and also that between mineral oil and water(between liquid and liquid) by means of automatic control of internal microcomputer under circumstances of nonequilibrium. It only needs you pour the sample into sample cup and then press "start" button. Then the tester will finish the whole test and calculate the tension value automatically according to concrete input parameters.

Features:
1.Large color LCD screen, English prompt, menu operation, fully automatic testing.
2.Automatic temperature compensation within 25ºC eliminates the influence that the temperature imposes on the tension value.
3.Functions of auto correction, auto testing, calculation, results displaying, and storage under power off circumstance.
4.The main body is equipped with hurricane globe, which lessens the influence outer matters impose on testing results.
5.Automatic lift of the lift platform ensures a stable environment and high accuracy.
6.It adopts enclosed magnetic pot type sensor and multi-point calibration of uniform space technology, which improves the repeatability and reproducibility of the results.
7.It can work independently and can also realize network management via connection with laptops or microcomputers through USB interface.
8.Tester program can be updated accordingly if related national standard revised.

 Technical Parameters:

Method of Display:	large LCD display screen, in English
Method of Testing:	Platinum ring method
Testing Range:	0-200mN/m.
Sensitivity:	0.1mN/m
Accuracy:	±0.1mN/m
Self-checking:	Breakdown auto diagnostics
Temperature Compensation:	Automatic temperature compensation
Power:	Less than 40W
Dimension:	185×260×360mm
Working Environment:	Temperature:10ºC-40ºC; Humidity: ‹80%
Power Supply:	AC220V±10%, 50HZ±2.5HZ
Weight:	About 15kg


Test equipment We Supply:
1. Transformer oil Breakdown voltage Tester ( BDV test kit) series IIJ-II
2. Acidity tester model ACD-3000I
3. Karl Fischer Water content Tester Model TP-6A / model TP-2100
4. Fully automatic Interfacial Tension Analyzer model IT-800
5. Gas-Chromatography transformer oil gas analyzer model DGA2013-1
6. Multi-functional Vibration tester model TYD-2000
7. Automatic Freezing Point & Pour Point Tester model PT-2000
8. Kinematic Viscosity tester model VST-8 /model VST-2000
9. Flash point tester (open cup) model TPO-3000
10. Flash point tester (close cup) model TPC-3000
11. TAN-DELTA TESTER, 10kV Capacitance and Dissipation Factor Test Set model CDEF
12. Automatic Freezing Point & Pour Point Tester model TP-501Z
13. Determination of foaming characteristic of lubricating oil model SD-12579
14. Earth resistance tester model HYDW-II
15. Coil Resistance Tester (TPZC-40)
16. CT/PT tester model TPVA-404
17. Transformer turn ratio tester model HYG-II
18. Relaying Protection Tester model TPJB-III
19. Digital Grounding Resistance Tester model TP2571-II
20. DC High Voltage Generator model ZGF

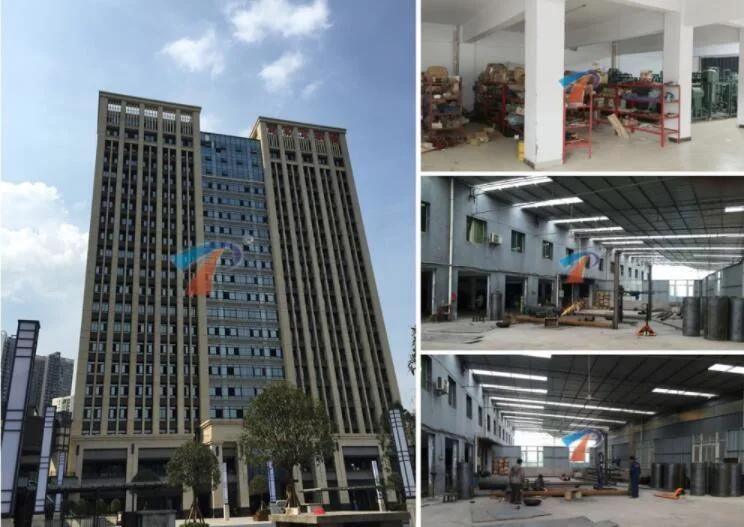

Our Company


Chongqing TOP Oil Purifier Manufacture Co., Ltd is a professional leading manufacturer of oil purifiers and oil testers. We takes the mission of existing on the basis of excellent quality as well as developing technical innovation,and introduces advanced technology.

TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.

TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.

Pre-sale Service
1)Will give response within 24 hours for all inquiries and  questions about our products.
2)Recommend the most suitable machine according  customer's demands.
3)Professional pre-sale model/configuration selection advise  and technical support--offered by experienced technician.
4)Free on-site installation, debugging and technical training --  offered by strictly trained technology application engineers.
5)Offer OEM service.
After-sale Service
1)The warranty period is 24 months from commissioning    acceptance date on. After the warranty period is over we    provide lifelong maintenance and technical service.
2)We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
3)We build instrument service profile for our clients to record   the product service and maintenance conditions.
4)After instruments start service, we will pay follow-ups to collect the service conditions.

Packing and Delivery


Safety and Timely Transportation
1)Standard export wooden case with high quality cushioning material ensure the item arrive customer in good condition.
2)Carefully check every packing detail before delivery to avoid any troubles during the transportation.
3)Appointed logistics company could be used according to customers demands.
4)Do our best to make sure customer can get their goods in time.

Contact Us
If you are interested in this product, please don't hesitate to contact with me. I will give response within 24 hours. Kindly add my WhatsApp  for instant communication.(Mobile Phone:+86 155 2351 8178)
