Single Phase AC Voltage Monitoring instrument Calibration Equipment

Wuhan GDZX Power Equipment Co., Ltd.
  • After-sales Service：Provide lifelong after-sales service
  • Warranty：1 Year
  • Power supply：220V+,-10% ,50Hz+,-5%
  • Output stability：0.01%,1min
  • Waveform distortion：Less than 0.2% (when output since wave)
  • Output range：Basic range: 57.7V, 100V, 220V,380V

Base Info

  • Model NO.：ZX1030C
  • Regulation range：0-120%
  • Maximum output capacity：30VA
  • Accuracy：0.05%
  • Dimension：325*280*135mm
  • Weight：8 KG
  • Transport Package：Carton,Wooden Case
  • Specification：With the change of technical scheme
  • Trademark：GDZX
  • Origin：Hubei
  • Production Capacity：500 Pieces,Month

Description

Power supply220V±10%   50Hz±5%

Single Phase AC Voltage Monitoring instrument Calibration Equipment

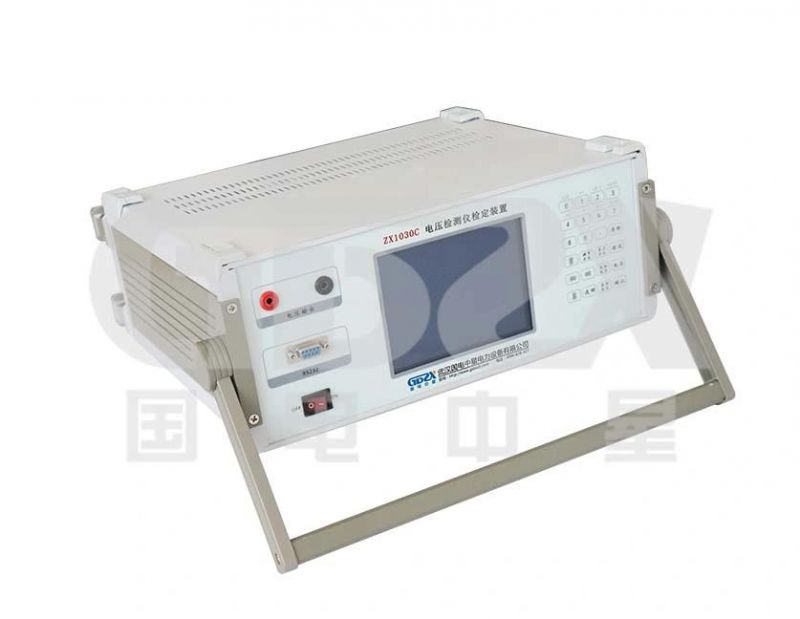

Device display
Single Phase AC Voltage Monitoring instrument Calibration EquipmentSingle Phase AC Voltage Monitoring instrument Calibration Equipment
About GDZX
     Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Single Phase AC Voltage Monitoring instrument Calibration EquipmentSingle Phase AC Voltage Monitoring instrument Calibration EquipmentSingle Phase AC Voltage Monitoring instrument Calibration EquipmentSingle Phase AC Voltage Monitoring instrument Calibration Equipment
Shipping and packaging
Single Phase AC Voltage Monitoring instrument Calibration Equipment
Features


1. Measuring output is stable and reliable by using Dsp digital signal generating and processing technology.

2. Large LCD display and tip function

3. Simple panel ( total four terminals) and easy operation

4. provided with direct reading standards and measurement errors,

5. High fineness, good for regulation

6. full software calibration

7. Harmonic output: 2~31th order, amplitude 0~20%

8. Nonvolatile memory with large storage, can save 250 calibrated instruments' data

9. Installed with RS232 inter face and software for auto-calibration and data management

10. Gone through over load test, dumping test, misusing test, high temperature aging test making it high reliable
