1. State Variables output

1) Binary code "1" represents "close", "0" means "open"

2) Stage varables rating voltage: 24V/48V/110V/220V

3) Output current: max 200mA

4) Channels: 8 independent outputs

2. Pulse output

1) frequency: 0-5KHz adjustable

2) Pulse width: 0.1ms-100ms adjustable

3) Electric level: 24V/48V/110V/220V

4) Pulse number: output number can be set

5) Telecontrol protocol

6) CDT protocol shall conform to DL451-91

7) POLLING protocol shall confirm to DL/T634-2002

3. Working power supply: AC220V±10%

     Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.

Shipping and packaging

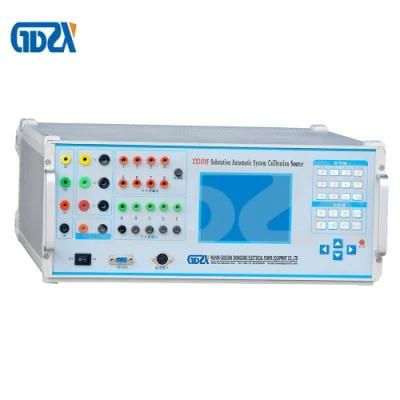

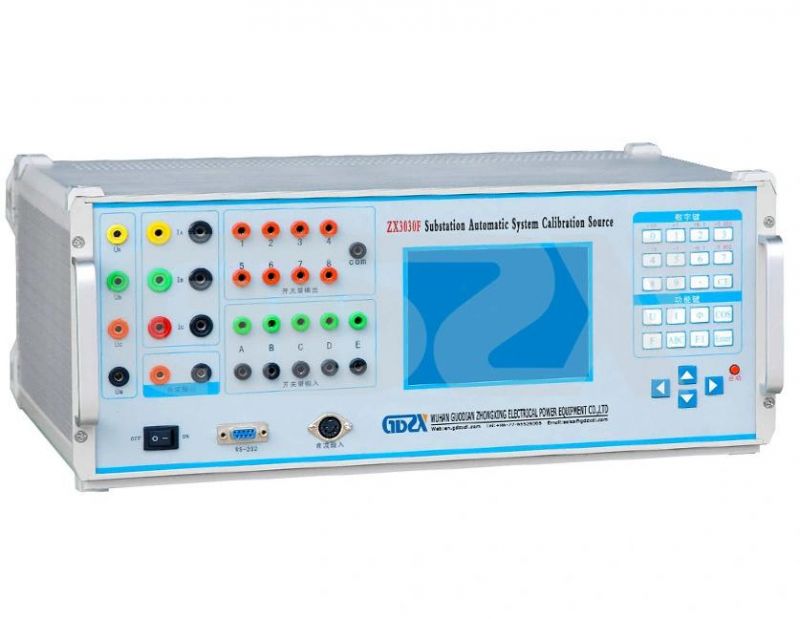

1. Function: AC sampling device and sampling RTU (Remote Terminal Unit) calirbation

1) AC/DC analog value input measurement

2) state variables input measurement

3) remote control execution testing

4) remote regulation function testing

5) digital value input testing

6) impulse input testing

2. AC Power source

It can output AC voltage, AC current

accuracy 0.05 class

can provide standards of AC/DC voltage/current, power, phase, power factor, frequency, energy.

Output method and output electric quantity can be set arbitrarily

3. Data management

It can save, search, browse, print or delete RTU testing data.

Calibrated parameters can be saved permanently
