• Model NO.：YG(B)571JIS
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Motor Drive
• Weight：0-100Kg
• Power Source：AC220V
• Friction Head Pressure：9n
• Friction Head Diameter：Round:16mm;Rectangular:19X25.4 mm
• Speed：60rpm
• Time Range：0-99999
• Friction Head Stroke：104mm
• Transport Package：Export Package
• Trademark：DARONG
• Origin：China
• HS Code：9024800000
• Production Capacity：2000sets,Month

Basic Info.

Model NO. YG(B)571JIS Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Motor Drive Weight 0-100Kg Power Source AC220V Friction Head Pressure 9n Friction Head Diameter Round:16mm;Rectangular:19X25.4 mm Speed 60rpm Time Range 0-99999 Friction Head Stroke 104mm Transport Package Export Package Trademark DARONG Origin China HS Code 9024800000 Production Capacity 2000sets/Month

Product Description

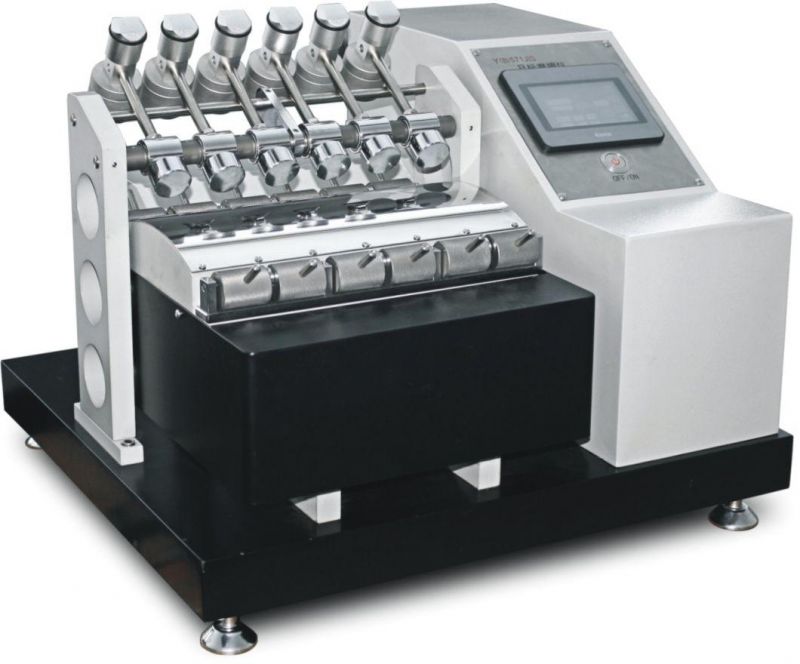

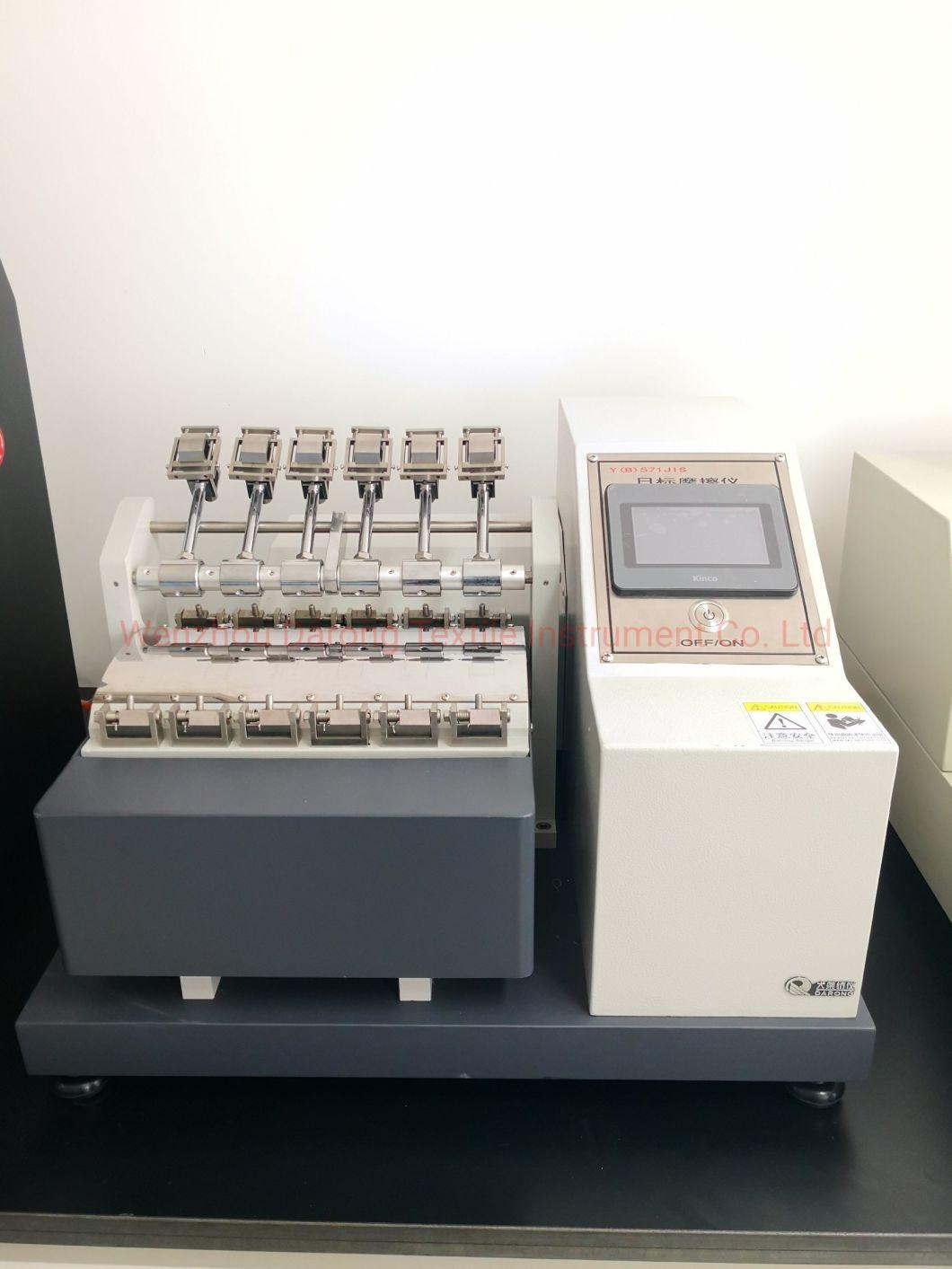

Y(B)571-JIS Color fastness testing equipment to rubbing

[Scope of application] It is used for dry and wet rubbing color fastness testing of cotton, chemical fiber, blended and other colored fabrics and leather.

[Related standards]
Js-l0801, 0823, 0849, 1006, 1084, K6328, P8136, etc.
[Technical parameters]
1. Number of working stations: 6
2. The number of tests: (1 ~ 9999) times
3. Sample surface radius: 200mm
4. Friction head surface radius: 45mm
5. Friction head pressure: 2N
6. Friction head movement: (100±)1mm
7. Reciprocating speed: 30 times/min
8. Dimensions: about 560×520×406mm (length × width × height)
9. Power source: AC220V±10% 50Hz 280W
10. Weight: 34kg
Technical parameters]

Friction head pressure	No. of satations	Friction head movement
2N	6	100mm

It's my great honor to have the opportunity to introduce us as one of the leading manufacturers of textile(including face masks and footwear) testing machines in China which is established in 1988. Thanks to our high-quality products as well as in-time service,we obtain satisfaction from more than 100,000 customers including about 370 notify testing laboratories such as INTERTEK and SGS and BV and Eurofins etc. and the leading textile enterprises. I am looking forward to the chance serving you in near future.
