• Model NO.：BE-8106
• Control Mode：PLC Touch Screen Control+ Remote Control
• Crossing Bar Diameter：15.8 mm
• External Material：1.5mm Thickness Cool-Rolled Plate
• Transport Package：Each Set Protected with Resin Fiber and PP Film, T
• Specification：Test Space500x300x800(customizable)
• Trademark：DGBELL
• Origin：Guangdong China
• HS Code：8479899990
• Production Capacity：100set ,Month

Basic Info.

Model NO. BE-8106 Control Mode PLC Touch Screen Control+ Remote Control Crossing Bar Diameter 15.8 mm External Material 1.5mm Thickness Cool-Rolled Plate Transport Package Each Set Protected with Resin Fiber and PP Film, T Specification Test Space500x300x800(customizable) Trademark DGBELL Origin Guangdong China HS Code 8479899990 Production Capacity 100set /Month

Product Description

DGBELL Lithium Ion Battery Gravity Impact Testing Equipments

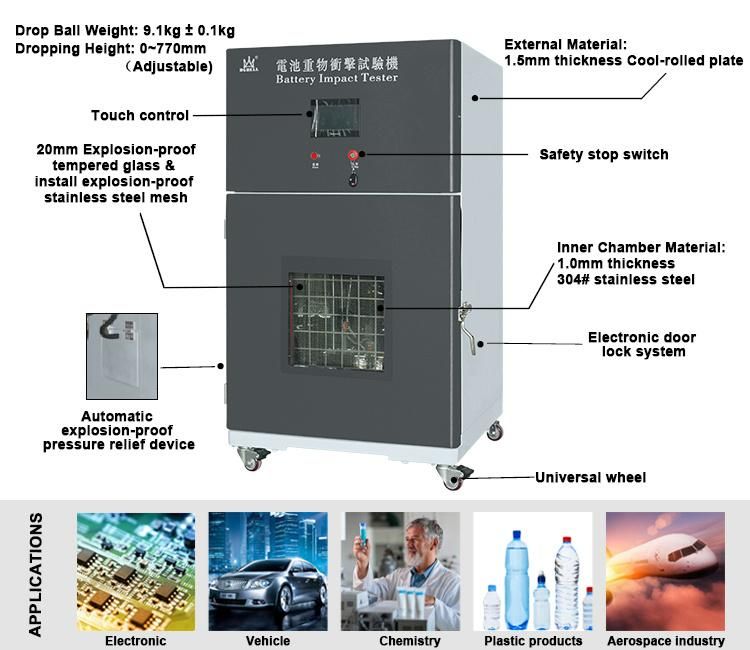

Product show

Application

DGBELL's battery impact tester tests the safety of the battery through different weights, different heights and different impact areas. After a series of tests on this battery impact tester, the battery must not have flame or explosion. This device is a kind of battery testing equipment popular among battery manufacturers.

Test requirements

• UL 1642
• UN 38.3
• GB31241-2014
• IEC62133

Performance parameters

Model	BE-8106
Structure	All-in-one structure, the door uses explosion-proof lock and explosion-proof chain
Drop Ball Weight	9.1kg±0.1kg
Dropping Height	0~770mm(Adjustable)
Control Mode	PLC Touch Screen Control+ Remote Control
Crossing Bar Diameter	15.8 mm
Inner Cabinet Dimension	W500 X D300 X H800mm
Effective Test Space	W300XD300XH300mm
Internal Material	1.0mm thickness SUS 304# Stainless steel (reinforced). Total 80mm thickness together with external chamber.
External Material	1.5mm thickness Cool-rolled plate
Air Vent	Diameter: 150mm, at the top of chamber back
Observation Window	390 X 360mm (20mm thick explosion-proof glass, install explosion-proof stainless steel mesh)
Lifting Mode	Electric
Top / Bottom Impact Surface	Steel Plate
Test Space	W300XD400XH200 mm
Overall Dimensions	W940XD780XH1620 mm
Power Supply	AC 220V / 2.0KW
Data Output	Test data can be output by USB flash disk directly .
Safety Protection	Explosion-proof pressure relief device, smoke exhaust device, fire extinguishing system, electronic door lock system, safety stop switch
Options	Temperature acquisition system, voltage acquisition system, video monitoring system

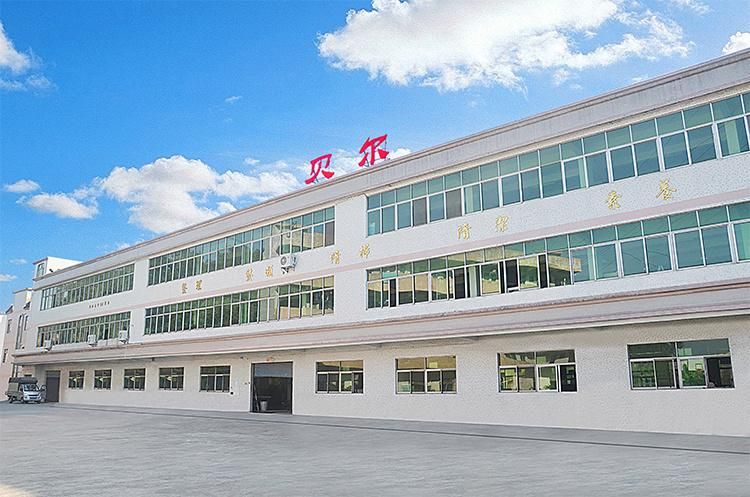

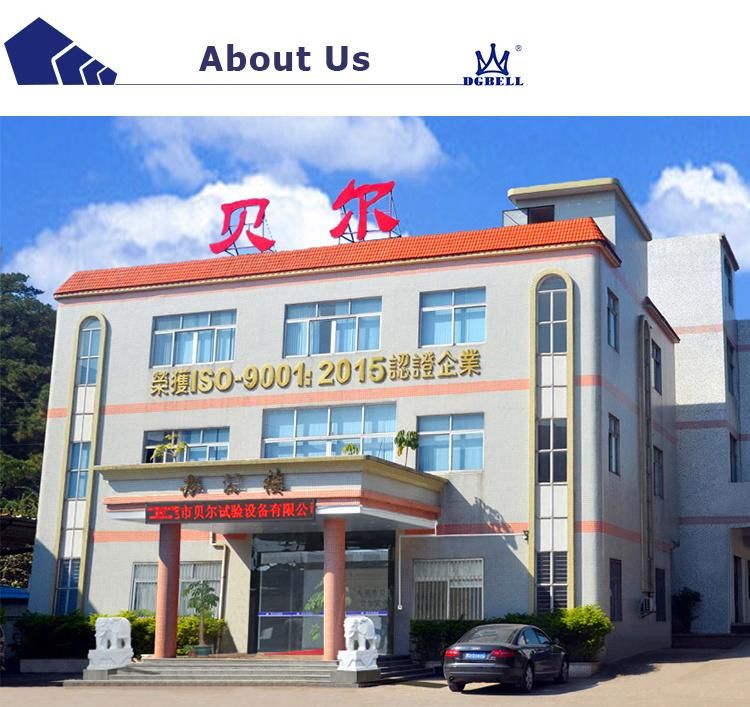

Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.

15+ years experience in test chambers manufacturing, High performance for your projects.

With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, Guangdong Bell Experiment Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards.

Complete QC inspection process,Guarantee high quality of each machine.

1.IQC Incoming Quslity Control2.IPQC InPut Process Quality Control
3.FQC Final Quality Control
4.OQC Outgong Quality Control

Our service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual.
Onsite Service:
1.Device installation; 2.Equipment Operation Test Technology training;
3.Equipment Calibration;
4.Daily maintenance and maintenance of equipment Free technical training for visiting factories 24-hour Online contact Free software upgrades
Free information:
1.Product Instruction;
2.Product operation instruction/video;
3.Experiment Test (test application, test report)
Device Problem Handling:
1.Social media 24 hours online communication;
2.Email contact;
3.Video Conferencing;
