• Model NO.：DIL-100Z
• Oven Temperature：0-500c
• Refrigeration Temperature：0-60c
• Transport Package：International Standard Export Box
• Specification：CE
• Trademark：TOP TESTER
• Origin：China
• HS Code：9031809090
• Production Capacity：60 Sets,Month

Basic Info.

Model NO. DIL-100Z Oven Temperature 0-500c Refrigeration Temperature 0-60c Transport Package International Standard Export Box Specification CE Trademark TOP TESTER Origin China HS Code 9031809090 Production Capacity 60 Sets/Month

Product Description

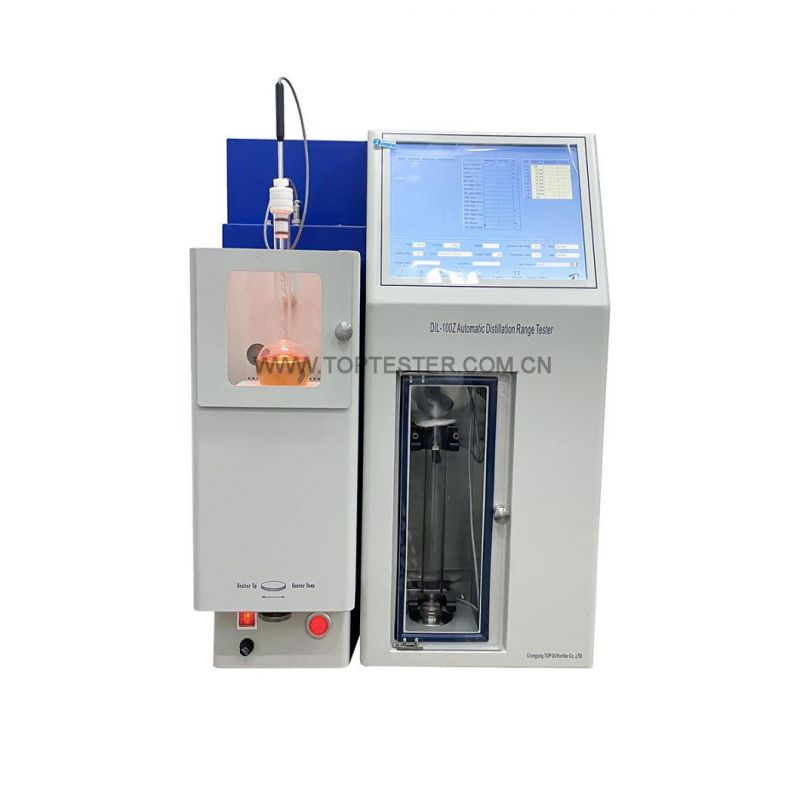

Automatic Distillation Range Tester DIL-100Z


Application
This instrument is used for determination of distillation range of petroleum products according to the test method in GB/T 6536, complying with ASTM D86 and IP123. This instrument will automatically control the heating process and distillation speed, as well as record and print all record data.

Feature
(1) Automatically controlling of test process. 10" touch LCD for display of temperature, volume and curves during the whole process.
(2) Level tracking system consists of American Haydon high-stepping linear motor, imported integral linear ball screw circumferential positioning laser tracker (Japan KEYENCE). The cooling tube and cylinder room are refrigerated mechanically; imported compressor. Circulate in the cooling medium. Check and add cooling water every 2 years.
(3) Automatically heating control of distillation over, the sample can be heated to 95% of the flow rate from initial boiling point controlled within 4~5ml per minute.
(4) Provide initial boiling point and final boiling point temperature, and various percentage temperature and flow rate.
(5) Automatically measuring of local atmospheric pressure, and corrected to standard atmospheric pressure.
(6) Stopping of test by the steam temperature available.
(7) The test result can be stored, queried and printed.

Technical Parameters
1, Power: AC220V±10% 50Hz
2, Heating power: 2KW
3, Cooling power: 0.5KW
4, Steam temperature: 0-400ºC
5, Oven temperature: 0-500ºC
6, Refrigeration temperature: 0-60ºC
7, Refrigeration accuracy: ±1ºC
8, Temperature measurement accuracy: ±0.1ºC
9, Volume accuracy: ±0.1ml

Welcome your inquiry
