• Model NO.：XB-OTS-209A
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Usage：Paper Testing Instrument, Bursting Tester
• Design Criteria：JIS-L1004, L1018, L1031, K6328, P8131, P8112
• Accuracy：< 0.5%
• Pressure Range：250~5600kpa
• Oil：100% Silicon Oil
• Opening in Upper Clamp：31.5 +- 0.05 mm Diameter
• Material of The Ring：Stainless Steel SUS304
• Sensing Method：Pressure Transmitter
• Speed of Compression：High Pressure 170+- 10ml,Min
• Unit (Sitchable)：Kpa, Psi, Kg,Cm^2
• Transport Package：Strong Wooden Case
• Specification：445x425x525 mm (LxWxH)
• Trademark：OTS
• Origin：China
• HS Code：9024800000
• Production Capacity：228PCS,Month

Basic Info.

Model NO. XB-OTS-209A Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Usage Paper Testing Instrument, Bursting Tester Design Criteria JIS-L1004, L1018, L1031, K6328, P8131, P8112 Accuracy < 0.5% Pressure Range 250~5600kpa Oil 100% Silicon Oil Opening in Upper Clamp 31.5 +- 0.05 mm Diameter Material of The Ring Stainless Steel SUS304 Sensing Method Pressure Transmitter Speed of Compression High Pressure 170+- 10ml/Min Unit (Sitchable) Kpa, Psi, Kg/Cm^2 Transport Package Strong Wooden Case Specification 445x425x525 mm (LxWxH) Trademark OTS Origin China HS Code 9024800000 Production Capacity 228PCS/Month

Product Description

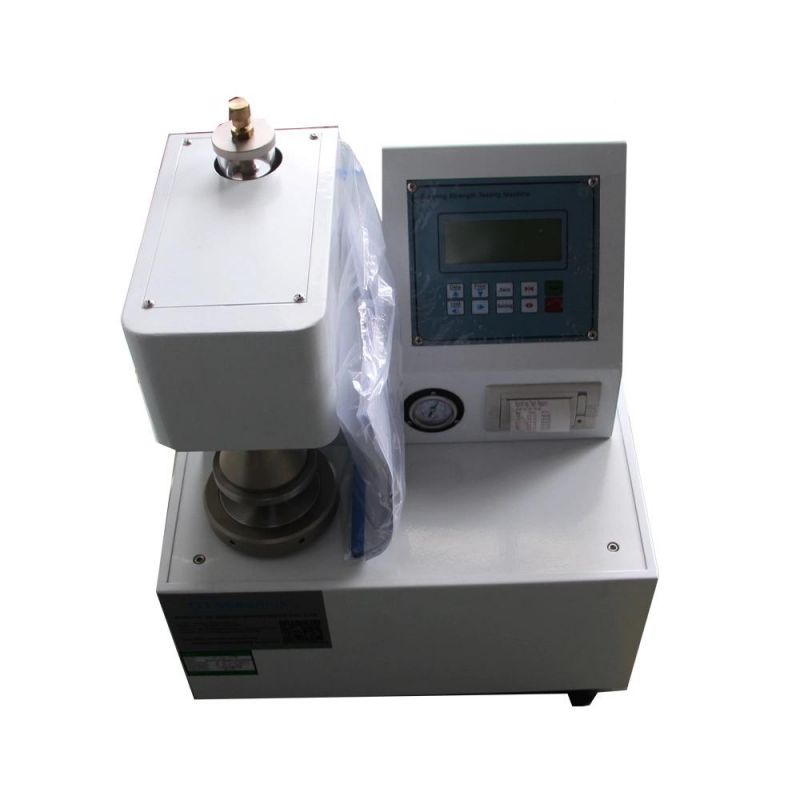

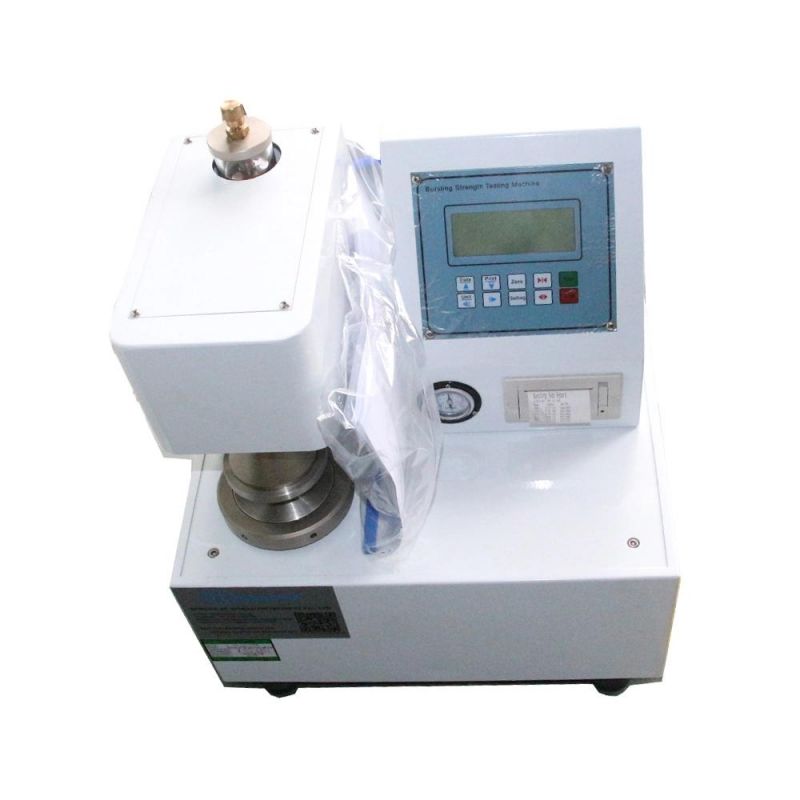

Electronic Automatic Paper Cardboard Bursting Strength Testing Equipment

1. One year free after-sale service
2.  High quality with reasonable price

Model: XB-OTS-209A

Introductions:
   Paper Bursting Strength Test Machineis fit for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike, valise, food, shoe, furniture etc, to test the bursting-resistance strength of paper box;
The type of bursting strength tester is adapted with signal output of pressure. While specimen is breaking, the max. breaking value will be kept with the alarm buzzer & alert light automatically. Its Accuracy has promoted 20 times more than the traditional gauge.

Features of Bursting Strength Testing Machine1. Very fast testing cycle gives fast feedback to the production2. With automatic test grip instead manual hold the sample3. Improvement of the operational safety regulations >> equipped a cover between plants to protectthe   operator's hand during testing
4.Built-in LED light on the cover5. It is applicable to test bursting strength for paperboard.
6. Power protection ensure automatic record when power cut off.

Design standards:
 JIS-L1004, L1018, L1031, K6328, P8131, P8112

 Technical Parameters:

Capacity  (Optional)	High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)
Unit (switchable)	Kpa, psi, kg/cm^2
Accuracy	± 0.5%
Pressure Range	250~5600kpa
Load Resolution	0.001 kgf/cm2
Speed of Compression	High Pressure 170± 10ml/min
Specimen Clamping Force	>690kpa
Oil	100% silicon oil
Sensing method	Pressure Transmitter
Indicating Method & Display	LCD
Material of the Ring	Stainless Steel SUS304
Opening in Upper Clamp	31.5 ± 0.05 mm Diameter
Opening in Lower Clamp	31.5 ± 0.05 mm Diameter
Motor	Anti-vibration Motor 1/8 HP
Operation Method	Automatic
Dimension (L*W*H)	445*425*525 mm
Weight	Approx. 70 kg
Power	AC220± 10%, 50 Hz  (customer specific)
Power Capacity	120W
Standard Configuration	Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets
Optional Configuration	Printer, Air Pump
Accessories	Rubber membrane Piece wrench  Aluminum calibration foils   Silicone oil

General maintenance:
1. Clean: Maintain the machine cleanliness at any time, wipe the machine with cotton to keep it clean before and after each use.
2. Antirust:Spraying the rust oil on the surface of metal part of the machine weekly (2 hours after injection wipe)
3. Lubricating oil: Endorsement lubrication oil on transmission components in machines (such as Screw) monthly ( use an ordinary oil can).
4. Check the gear reducer oil should fill or replaced each half year.
5. Glycerol should be completely replaced every half year.

Packing & Delivery & Shipping

1.Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
2.Within 15  days after getting the payment3. Usually we delivery the equipment by air,by sea or by express. it depends on customer
