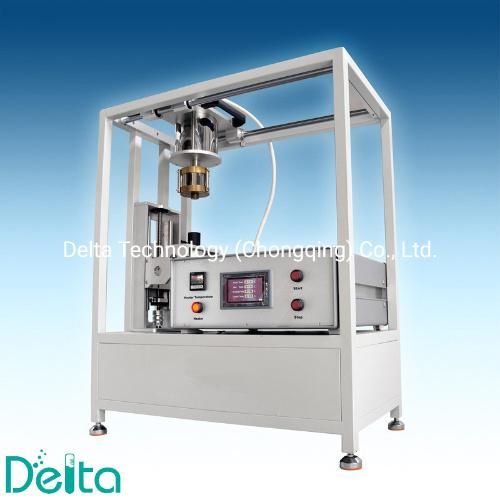

ISO 12127-1 Tester for Protective Clothing Againest Flame and Fire Testing
Delta Technology (Chongqing) Co., Ltd.- After-sales Service：Online Training for Operation and Installation
- Warranty：365 Days
- Description：Protective Clothing ISO 12127-1 Tester
- Reference Standards：En 702, ISO12127-1
- Function：Determination of Contact Heat Transmission
- Test Object：Protective Clothing
Base Info
- Model NO.：CHT
- Application Field：Safety Protection
- Features：Hot Sale Good Design ISO 12127-1 Tester
- Contact Temperature：100 Centigrade to 500 Centigrade
- Dimension：600(D) X 250(mm) X 650(mm)
- Weight：55kg
- Gas Supply：Propane and Compressed Air
- Power Supply：230 Volts Nominal 10 AMPS
- Delivery Lead Time：15 Days
- Trade Term：Fob, CIF, DDU, EXW
- Payment Term：30% T,T as Deposit, The Balance Before Delivery
- Shipping Method：by Air or Express
- Transport Package：ISO 12127-1 Tester Is Packed in Veneer Case
- Specification：420mm (W) x 526mm x (H) x 260mm (D)
- Trademark：Delta
- Origin：China Mainland
- HS Code：9031809090
- Production Capacity：10 Set ISO 12127-1 Tester , Month
Description
Overview
Product DescriptionProduct ParametersFeatures
- It is designed and manufactured according to EN 702 and ISO 12127-1 standards.
- CHT EN 702 Standard Protective Clothing Heat Transmission Tester determines the threshold time of temperature rise of 10°C in the calorimeter.
- In the test a heating cylinder is heated to a defined temperature and the specimen is put on the calorimeter.
- During the measuring the calorimeter is moved towards the heating cylinder with a defined skipping speed of 5 mm/s and after contact a load of 49N is applied.
- The temperature of the heating cylinder is adjustable from room temperature up to 500 °C.
