• Model NO.：AIC-2272
• Temperature Control：140ºC,150ºC
• Display：LCD Screen
• Control：Touch Screen
• Dimension：370mm×500mm×540mm
• Weight：25kg
• Working Position：2 Bombs
• Color：White and Black
• Language：English
• OEM Service：Available
• Operation：Automatic
• Function：Determine The Oxidation Stability of Steam Turbine
• Transport Package：Plywood Case
• Specification：Small
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：50 Sets,Month

Basic Info.

Model NO. AIC-2272 Temperature Control 140ºC,150ºC Display LCD Screen Control Touch Screen Dimension 370mm×500mm×540mm Weight 25kg Working Position 2 Bombs Color White and Black Language English OEM Service Available Operation Automatic Function Determine The Oxidation Stability of Steam Turbine Transport Package Plywood Case Specification Small Trademark AI Origin China HS Code 9031809090 Production Capacity 50 Sets/Month

Product Description

Introduction

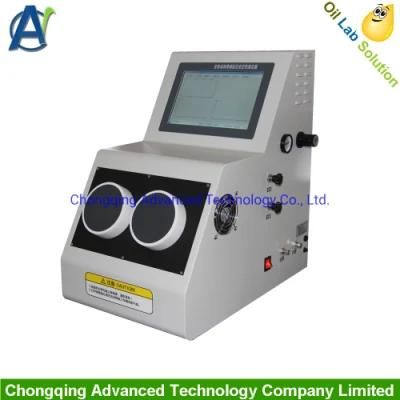

This RPVOT Oxidation Stability Testing Equipment is applicable to method B in ASTM D2272-2009 determination of oxidation stability of lubricating oil, and can also be used as an auxiliary test method in the Chinese standard SH/T0193 determination of oxidation stability of lubricating oil (Rotating Oxygen Bomb Method) .
The RPVOT Oxidation Stability Testing Equipment can determine the oxidation stability of new and in-service turbine oil with the same composition (base oil and additives), and can also be used to evaluate the oxidation stability of new mineral insulating oil containing 2,6-BHT as a rapid evaluation method.

Main Features
1. The integrated design of the whole machine has high integration, with touch screen, without external computer, mouse and keyboard.
2. The metal bath design eliminates the oil fume harm and environmental pollution to the operator, and simplifies the operation.
3. The double hole design can test two different samples at the same time, which is more convenient for users to do parallel sample test.
4. The rotation of the oxygen bomb is changed to the rotation of the test bottle, and the specially designed rotation mechanism can ensure the smooth and silent rotation of the test bottle in the bomb barrel at the speed of (100 ± 1) rpm.
5. The RPVOT Oxidation Stability Testing Equipment adopts built-in industrial computer, works in full-automatic mode, 10.1-inch touch screen, all Chinese, simple and clear interface, the test part and control part are combined into one, desktop structure, beautiful appearance and convenient operation.
6. Air cooling system is adopted to shorten the time interval of continuous test.
7. The RPVOT Oxidation Stability Testing Equipment is equipped with a pressure reducing system, which can easily adjust the air source pressure to the required value and facilitate the operation of oxygen charging and discharging.
8. The internal pressure of the cartridge is detected by precision pressure sensor, and the test data is stable and reliable; High precision temperature sensor is adopted to automatically detect and control the temperature of metal bath.
9. The software design has a high degree of automation, fully considering the user's operation habits and standard requirements, and can automatically complete a series of operations. When appropriate, prompt text will pop up on the interface to guide the user to carry out the correct operation in the next step and avoid errors.

Technical Specifications
1.Power supply: AC(220±10%)V, 50Hz;
2. Total power consumption: ≤1500W
3.Temperature control point for the bath:140ºC,150ºC
4. Temperature control accuracy: ±0.1ºC
5. Range for pressure sensor: (0~1.6)MPa,accuracy:±2‰
6. Test sample:Two-bomb design, can do two samples at one time. Convenient to do parallel test.
8. Included angle between oxygen bomb and water level: 30°
9.Working Temperature: 15ºC~35ºC
10. Relative humidity: ≤85%
11.Dimension: 370mm×500mm×540mm
12. Net weight: 25Kg

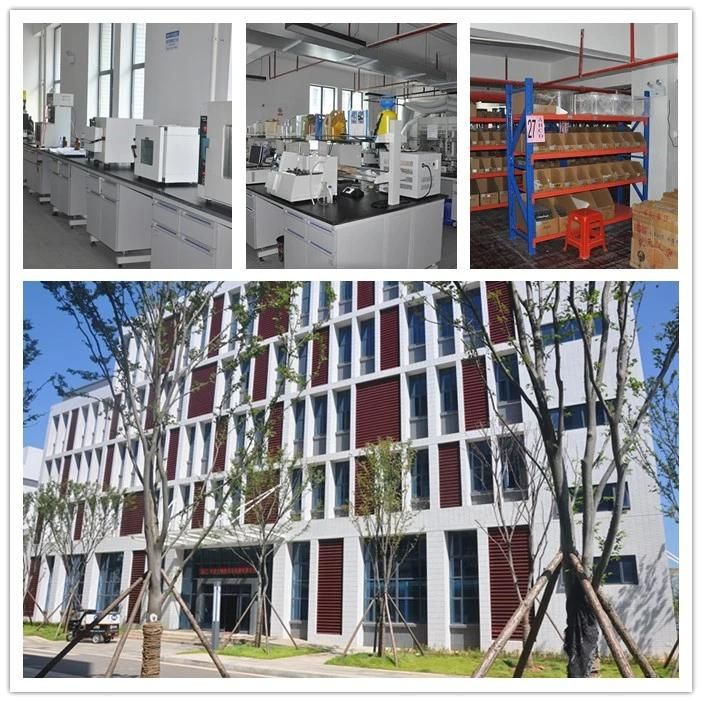

Factory overview
Customer Feedback

Germany

USA

Package

FAQ
1.What's the delivery time?
About 30 days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
