• Model NO.：ZX-NZY01
• Display：272*480 4.3 "TFT LCD + touch screen
• Communication Interface：USB interface (USB disk can be inserted)
• Transport Package：Carton,Wooden Case
• Specification：With the change of technical scheme
• Trademark：GDZX
• Origin：Hubei
• Production Capacity：500 Pieces,Month

ZX-NZY01 Storage battery Internal Resistance Tester uses AC discharge test method, can effectively measure the battery voltage and internal resistance at both ends, and to judge the advantages and disadvantages of the battery battery capacity and technical status. Customers can choose battery internal resistance test, voltage test, capacity estimation according to their own situation. As the basis of internal resistance matching in new battery configuration; Testing the internal resistance of the battery before and after discharge is used to identify the real backward battery. Key operation and LCD touch two modes of operation; It can measure the battery as a group or as a single section.

Features


1. Intelligent, digital, full Chinese operation menu, accurate measurement, simple operation.

2. The weight is not more than 0.45kg, hand-held design, single operation, automatic measurement throughout the whole process.

3. Meet various battery internal resistance testing standards, must include a complete battery internal resistance parameter database, and can define battery standard internal resistance according to different batteries.

4. The test method is simple, and will not affect the working state of the battery, nor will it cause safety hazards.

5. The instrument itself can store a large number of test data, and can carry out conclusive inquiry and analysis on the instrument, and can also export the battery test data to the computer software by USB disk to generate charts and curves for analysis.

6. Test reports can be easily imported into Excel and Word files and printed into reports in specified formats for easy management and reduced workload.

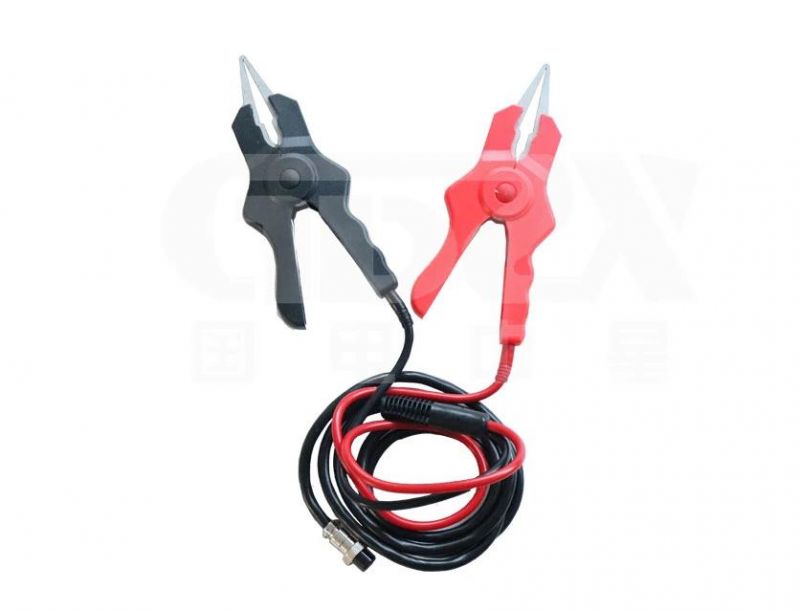

7. Four-end multi-purpose test clip, set test clip, probe and other functions in one, can adapt to more than 98% of the battery connection installation mode and battery pole form.


Technical Indicators

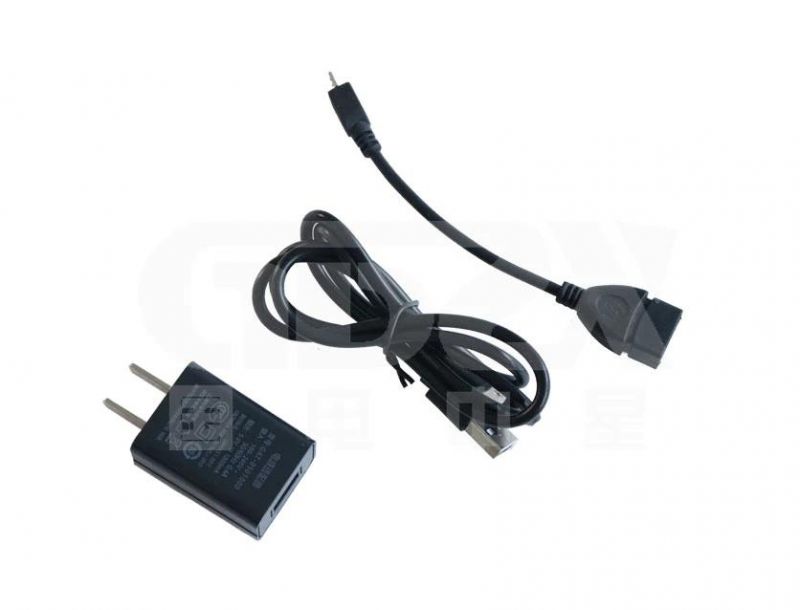

ProjectParameterMeasuring rangeInternal resistance: 0.0mΩ --120mΩ   Voltage: 0.000V--25VConnect resistance measuring range0.0 mΩ - 65.0 mΩ (optional)Internal resistance measurementInternal resistance: 0.001 mΩResolutionVoltage: 1 mvAccuracyInternal resistance: 1%   voltage: 0.15%Display272*480 4.3 "TFT LCD + touch screenSize186mm*98mm*40mmWeight0.45KGMemory capacityStorage of 100,000 battery measurement dataWorking power supply4000mAH rechargeable lithium battery, can work 8~12 hours when fully chargedPower converterAC100~240V/DC5V-1A Power adapter/chargerCommunication interfaceUSB interface (USB disk can be inserted)

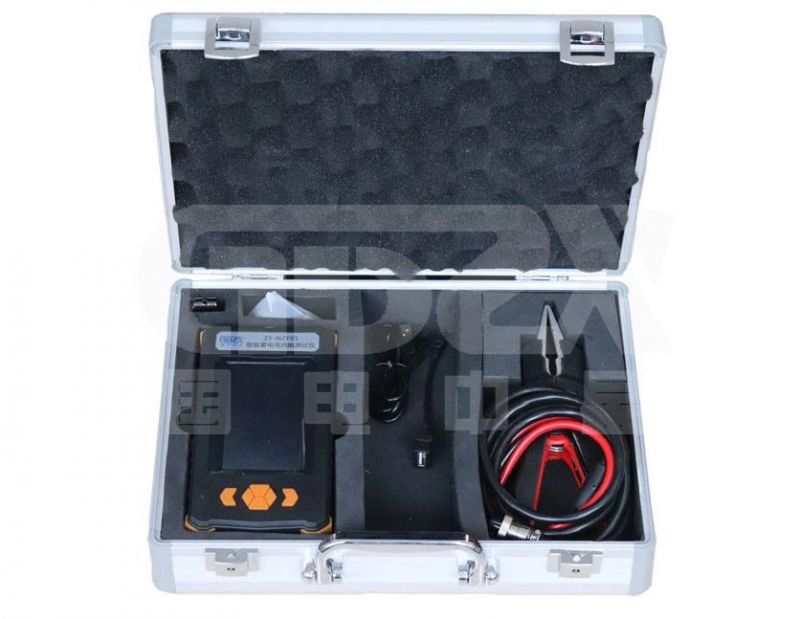

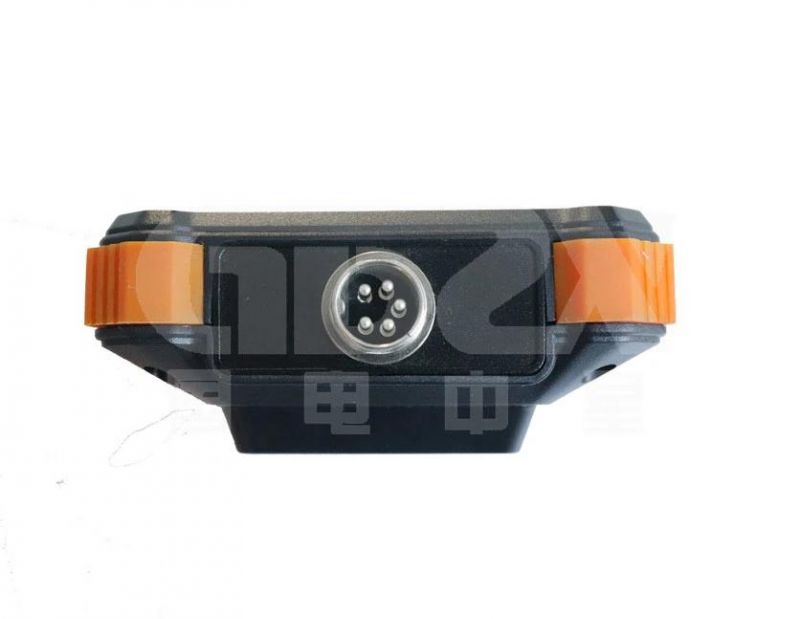

Product pictures

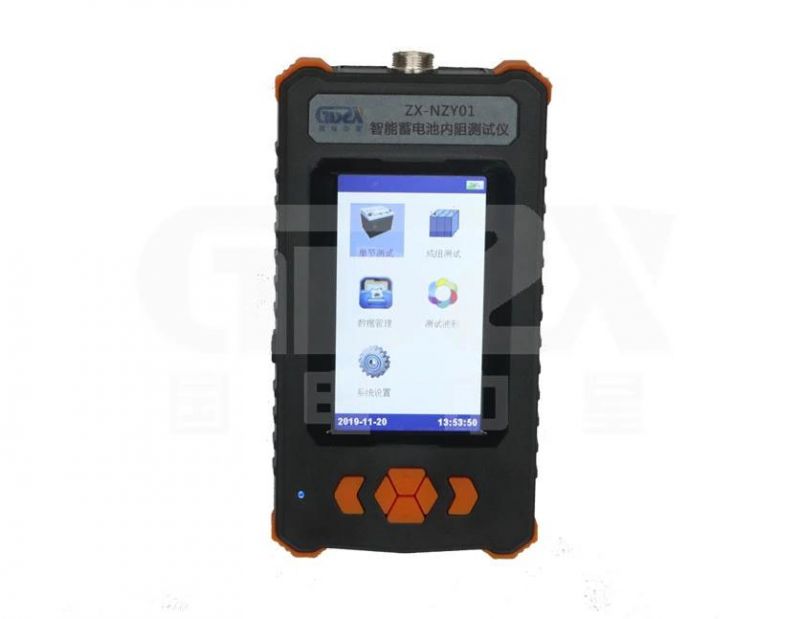

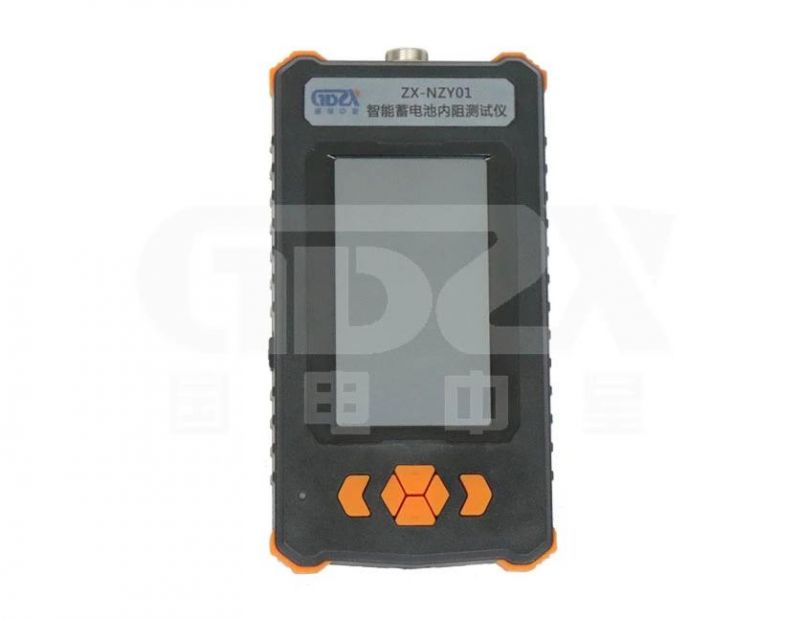

Device display

About GDZX
     Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
