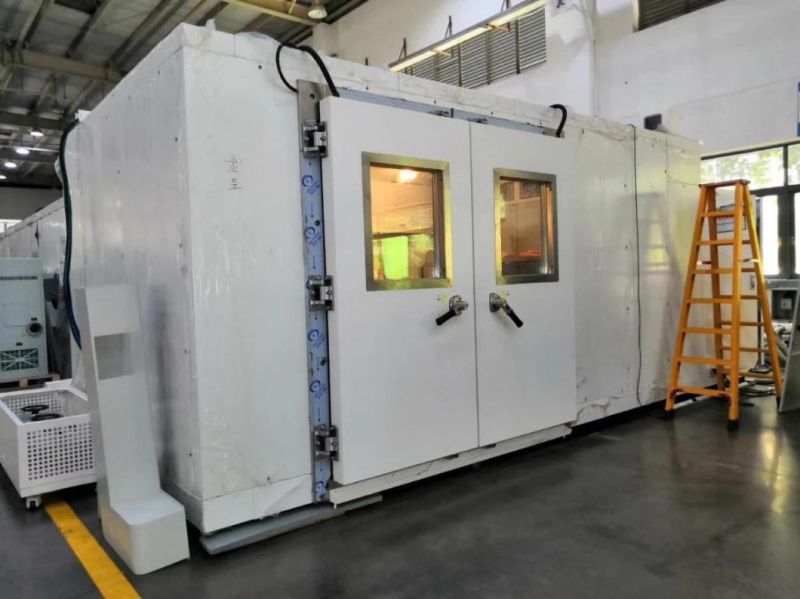

Stainless Steel Urethane-Foam PV Modules Testing Walk-in Climatic Chambers
Guangdong Komeg Industrial Co., Ltd.- Power Supply：380V ,220V
- Certification：CE, ISO
- Warranty：1 Year
- Interrior Material(W*H*D)Mm：4800*2100*4300
- Exterior Material(D*W*H)Mm：5950*2350*4500
- Temp. Range(Oc)：-60,-50,-40,-30,-20,-10,0,80,120
Base Info
- Model NO.：KMHW-21
- Humidity Range：10%,20%,30%~95%
- Volume(M3)：13.3
- Temp. Constancy：+,-0.5oc
- Humidity Constancy：+,-2.5%R.H.
- Temp. Uniformity：+,-2.0oc
- Door Size：Single Wing:W80*H180;Dw.:W160*H180
- Controller：Touch Screen Controller
- Transport Package：Strong Plywood Case, Meet International Standards
- Specification：Standard and Customized
- Trademark：KOMEG
- Origin：Dongguan, China
- HS Code：90321000
- Production Capacity：1000 Sets,Year
Description
SPECIFICATIONSNote: We reserve the right to change specifications without prior notice Model KMHW- 4 6 8 13 17 21 Volume(m³) 9 12.9 16.8 16.8 35.2 13.3 Interior Dimensions W(mm) 2100 3000 3900 3000 3900 4800 H(mm) 2100 2100 2100 2100 2100 2100 D(mm) 2050 2050 2050 4300 4300 4300 Exterior Dimensions W(mm) 3250 4160 5050 5050 5050 5950 H(mm) 2350 2350 2350 2350 2350 2350 D(mm) 2250 2250 2250 2250 4500 4500 Safety Devices(standard) No fuse breaker, over pressureover heat and over current protection for compressor,over-temperature protection, overload protection for the blower, dry heat protection Standard accessories Sight window*1,cable port(portΦ50mm)*1,chamber lamp*1, status indicator Control System Balanced Temperature & Humidity Control System Refrigeration system Water Cooled Semi-hermetic compressor, single-stage or cascade refrigeration system, CFC free refrigerant(HFC-507 and HFC-23) Controller Panel 7-inch LCD Touch panel, Chinese or English display selectable Operation model Program or fixpoint running Memory capacity 120 programs,1200steps, all repeat 999 cycles, part repeat 99 cycles Accuracy Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit Input Temp.:pt-100, Humidity:pt-100 or ~5V DCV Comm.port RS-232 or RS-485 (Software is an option) Temp. range Maximum:80ºC,120ºC;Minimum:-60ºC,-50ºC,-40ºC,-30ºC,-20ºC,-10ºC,0ºC Humidity Range 10%,20%,30%~95% Temp. constancy ±0.5ºC Humidity constancy ±2.5%R.H Temp. uniformity ±2.0ºC Humidity uniformity ±5.0%R.H Ambient Temp. +5ºC~+35ºC Wiring method AC 380±10%50Hz,3 phase 4 wires +Ground Wires Heat uptime +20ºC~+80ºC, Within 60 min Pull downtime +20ºC~-55ºC -40ºC-20ºC-10ºC ,Within 120 or 90 or 60 min Interior material Stainless Steel Plate(SUS 304) Exterior material Baked Painting Steel Or Stainless steel(SUS304) Insulation material Rigid polyurethane foam Door size (mm) Single wing:W800*H1800;Double wing:W1600*H1800; Note:
1. We reserve the right to change specifications without prior notice
2.Customized sizes and configurations available
After-sale service
If you face any problems in the future during the testing process we promise we will give you a reply within 48 hours and the solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by the customer.
1. We reserve the right to change specifications without prior notice
2.Customized sizes and configurations available
After-sale serviceIf you face any problems in the future during the testing process we promise we will give you a reply within 48 hours and the solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by the customer.
