• Model NO.：JB-W300 500A
• Accuracy Grade：1
• Load Way：Mechanical Load
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：300-750j
• Power Source：AC220V
• Oil Cylinder Position：Without
• Impact Energy：300j 450j 500j 600j 750j
• Division Value Per Cell：1j 2j
• Impact Speed：5.24m,S
• Span of Sample Support：40mm
• Impact Blade：2-2.5mm
• Angle of Impact Knife：30°
• Knife Thickness：16mm
• Specimen Specification：10 *10 *55mm
• Temperature Range：Room Temperature
• Feeding Speed：Less Than 2 Second
• Appearance：1700×2000×1450mm
• Net Weight：About 880kg
• Motor Power：370W
• Power Supply：Three-Phase Four-Wire 380V,50Hz
• Transport Package：Plywood Standard Ocean Case
• Specification：750*500*2100mm
• Trademark：CHENJI or OEM
• Origin：China Jinan or Others
• Production Capacity：2800 Set Per Year

Basic Info.

Model NO. JB-W300 500A Accuracy Grade 1 Load Way Mechanical Load Loading Method Static Load Display Digital Control Computer Control Weight 300-750j Power Source AC220V Oil Cylinder Position Without Impact Energy 300j 450j 500j 600j 750j Division Value Per Cell 1j 2j Impact Speed 5.24m/S Span of Sample Support 40mm Impact Blade 2-2.5mm Angle of Impact Knife 30° Knife Thickness 16mm Specimen Specification 10 *10 *55mm Temperature Range Room Temperature Feeding Speed Less Than 2 Second Appearance 1700×2000×1450mm Net Weight About 880kg Motor Power 370W Power Supply Three-Phase Four-Wire 380V/50Hz Transport Package Plywood Standard Ocean Case Specification 750*500*2100mm Trademark CHENJI or OEM Origin China Jinan or Others Production Capacity 2800 Set Per Year

Product Description

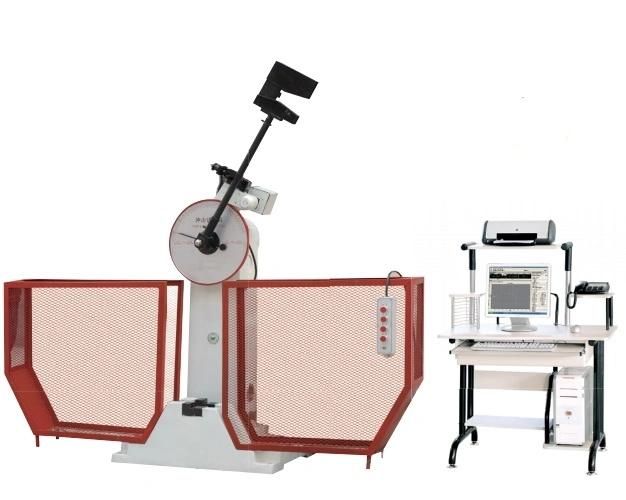

JB-W300 500A Microcomputer controlled impact testing machine
1. Introduction
The device is the impact resistance of metal materials under dynamic load testing instrument, can do continuous heavy metal impact test, adopt the automatic control, control system adopts imported programmable controller (PLC), controlled by a computer software program take place, the whole process of impact test. This machine is equipped with aluminum alloy housing, provides conditions for the user's safety operation. Is indispensable for metal materials manufacturers, qualitative inspect branch testing instrument, also an important part of the scientific research units for the new material research instrument.
2. Technical Specification Standard bipolar reducer to replace the old pendulum complex transmission system, simple structure, convenient assembly and maintenance, long service life, low failure rate, maintenance free.
Reducer with the pendulum shaft through special electromagnetic clutch connection, the clutch torque, low noise, fast response, etc;Host base and integrated design casting post processing, high stability, high rigidity, pillar is symmetrical, before and after the pendulum shaft adopts beam method, simple structure, high machining accuracy;Conveyor belt sample recovery unit, the use of motor ways, facilitate sample collection;
Totally enclosed safety guards, can effectively prevent fracture sample splash, also can prevent into the scope of sample. Shield sets threshold position switch, in the case of a door open, test opportunity self-locking, the main operation is invalid, so as to prevent wrong operation, ensure the safety of test personnel. Gantry structure to facilitate equipment maintenance and adjustment pendulum mechanism.

3. Features
The device is to use high precision of photoelectric encoder and the measurement, calculation software of the computer for special use by detecting pendulum impact before and after the impact of potential energy to detect the difference between the shock absorption function, the impact toughness of the material, againAutomatic processing, automatic generation of test data, test report.
