• Model NO.：HJ-2
• Display：Digital
• Weight：0-100Kg
• Power Source：AC220V
• Lifting Stroke：0-300mm
• Lifting Speed Range：1-9999μm,S
• Immersion Time：1-3200s
• Coating Times：1-1000 Times
• 10 Stations：6 Stations
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-2 Display Digital Weight 0-100Kg Power Source AC220V Lifting Stroke 0-300mm Lifting Speed Range 1-9999μm/S Immersion Time 1-3200s Coating Times 1-1000 Times 10 Stations 6 Stations Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

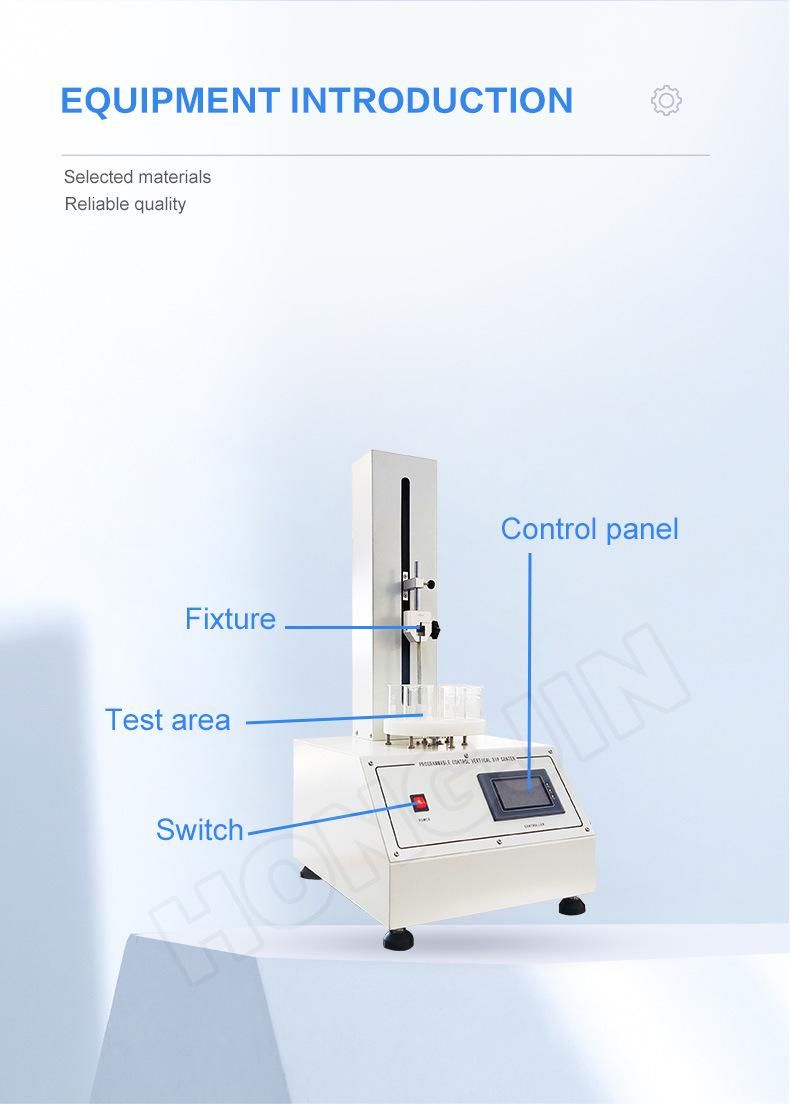

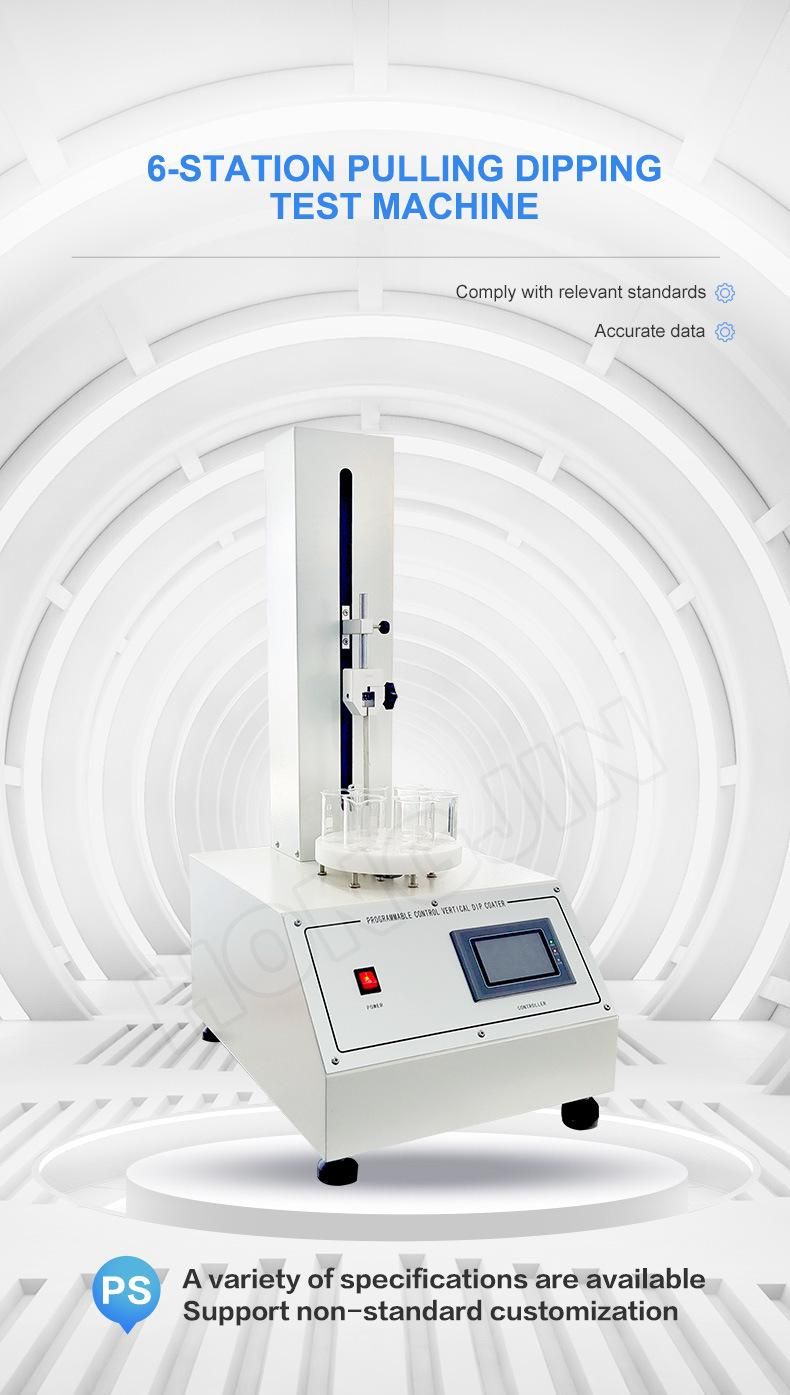

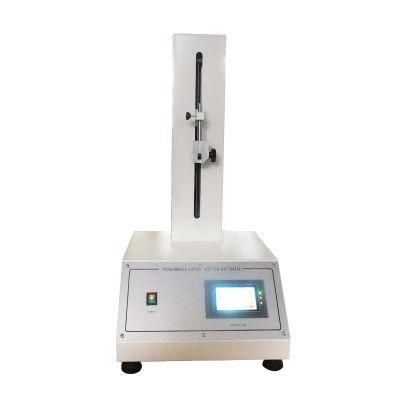

The dipping and pulling coating machine is a high-precision instrument produced by Dongguan Hongjin Testing Instrument Co., Ltd. which is suitable for preparing thin films by dipping and pulling. The dipping and pulling method is one of the common methods for preparing thin films by the sol-gel method (Sol-Gel method, SG method for short). Using high-quality accessories, precise control of the pulling speed, repeated coating without position deviation. The pulling speed, pulling height, cycle coating times, immersion time, descending speed, and residence time can all be precisely controlled by the program. Suitable for common substrates such as glass, Si (100), Si (111), sapphire (Al2O3), porcelain and resin substrates.

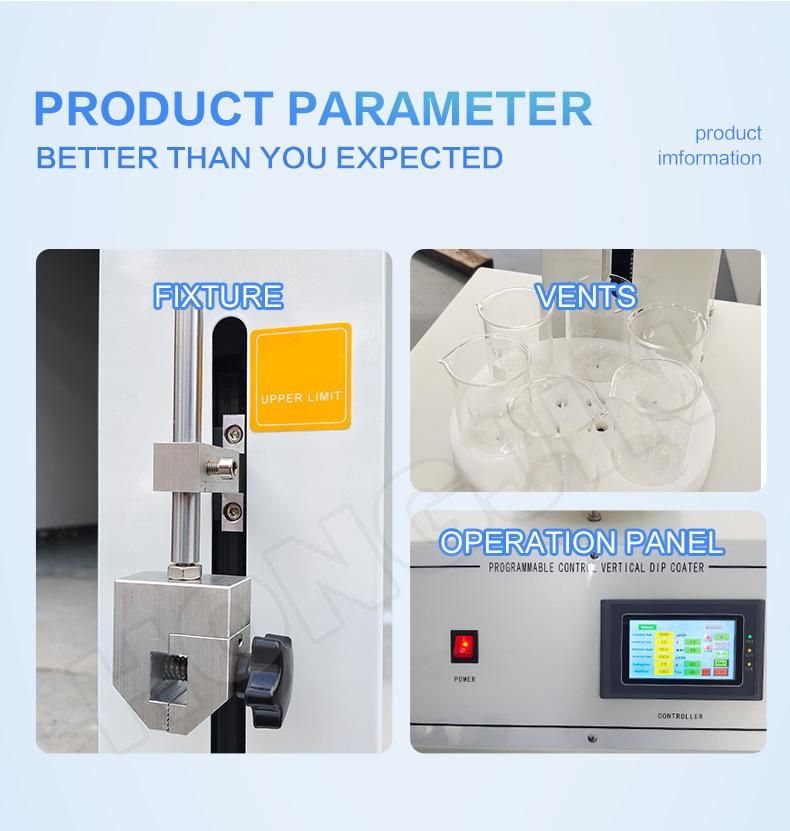

Control method	Full touch
Transmission	Servo motor + ball screw
Lifting stroke	0~300mm
Lifting speed range	1~9999μm/s
Position accuracy	<0.1mm
Speed accuracy	±0.01%
Immersion time	1~3200s
Coating times	1~1000 times
Coating interval time	1~3200s
10 stations	6 stations
Power supply	AC 220V 50Hz
