• Model NO.：SXGY
• Trademark：Sansion
• Origin：Wuhan, China
• HS Code：9030339000
• Production Capacity：100 Units

Basic Info.

Model NO. SXGY Trademark Sansion Origin Wuhan, China HS Code 9030339000 Production Capacity 100 Units

Product Description

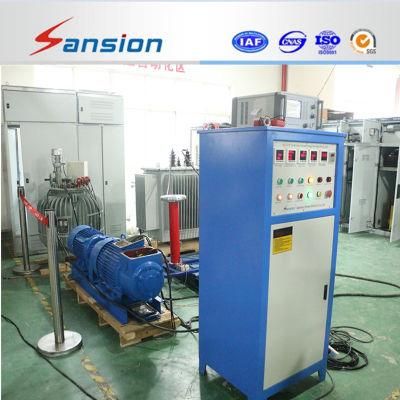

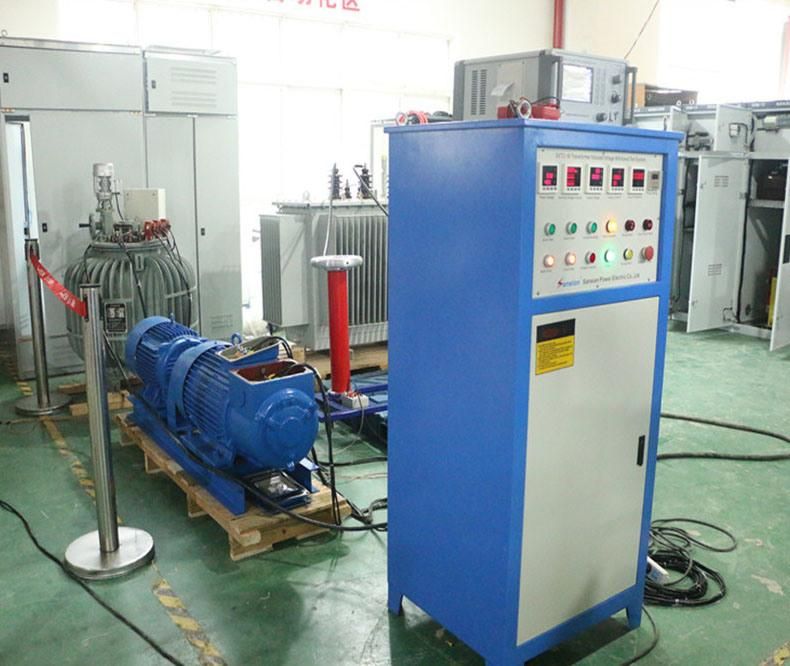

Transformer Induced Voltage Withstand Test System
This set of equipment is specially designed and manufactured for the power transformer production and maintenance department to do the frequency-doubled induction withstand voltage test power supply.

With zero position protection, overcurrent and overvoltage protection, sound and light alarm and other functions, small size, light weight, beautiful appearance and easy operation, it is the ideal equipment for frequency doubler units.

Can be electrically operated
With over-current protection function (along with alarm warning);
With emergency stop function;
With zero closing protection function;
Equipped with timing function, sound and light alarm when the time is up. ★: The relays and contactors in the console are produced by domestic or foreign well-known enterprises (such as Schneider and Omron)


S/N	Name	Name of equipment	Type	QTY	Remarks
1	High Voltage Supply	Intermediate frequency generator set	SXBF-50KVA	1	0-1400V
		Intermediate frequency unit console	SXTC-W	1	Including PD Tester SXJF2010 (Contains 3 detection Impedance(input unit), 1 correction pulse generator)
		Isolation filter (three-phase)	LB-30-50KVA	1
2	Measurement sampling	Coupling capacitor	FRC-100KV	3
3	Regulator	Regulator	Oil Regulator	1
4	Accessory	Secondary circuit measurement and control line		1
