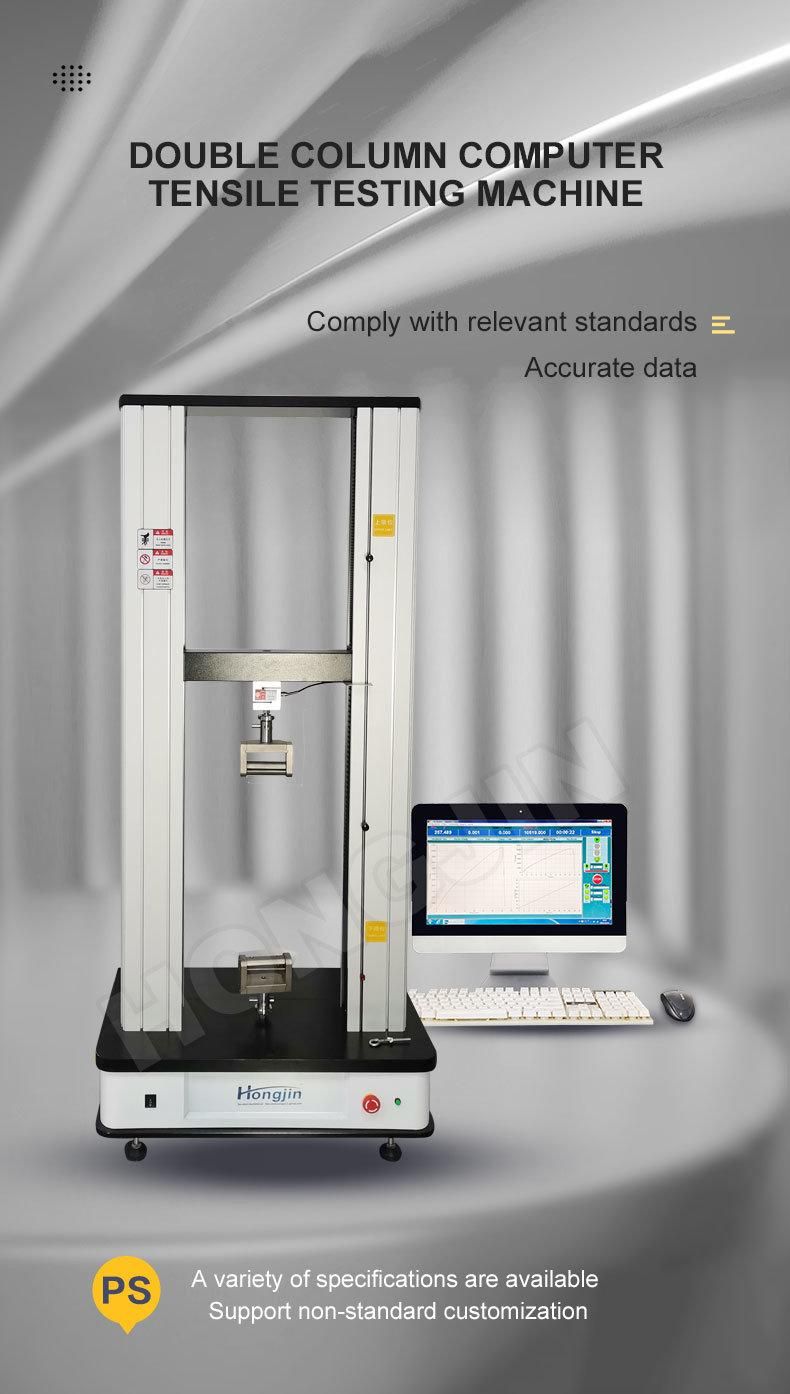

Hj-88 High Quality Tensile Testing Machine for Tearing Test Steel Cable Rebar

Dongguan Hongjin Test Instrument Co., Ltd.
  • After-sales Service:Lifetime Maintenance
  • Warranty:1 Year
  • Type:Tensile Testing Machine
  • Maxcapacity:20kn
  • Accuracy Grade:0.5
  • Load Way:Electronic Load

Base Info

  • Model NO.:HJ-88
  • Display:Digital
  • Weight:100-500Kg
  • Power Source:AC220V
  • Product Name:Universal Tensile Strength Tester
  • Test Items:Strength and Selective Elonga
  • Unit of Strength:Kg, N, Lb, G
  • Accurate Measurement Range:1%-100% Fs
  • Working Type:Automatic Loading
  • Resolution of Load:1,300000 of Full Scale
  • Resolution of Displacement:0.001mm
  • Power:Electronic
  • Transport Package:Fumigation-Free Standard Export Wooden Box
  • Trademark:Hongjin
  • Origin:China
  • Production Capacity:1000 Sets, Month

Description

Basic Info.

Model NO. HJ-88 Display Digital Weight 100-500Kg Power Source AC220V Product Name Universal Tensile Strength Tester Test Items Strength and Selective Elonga Unit of Strength Kg, N, Lb, G Accurate Measurement Range 1%-100% Fs Working Type Automatic Loading Resolution of Load 1/300000 of Full Scale Resolution of Displacement 0.001mm Power Electronic Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Use of compression spring tester
Compression spring tester is to test the tensile strength, compressive strength and elongation, elongation, stripping, tear, bending, bending and compression of all kinds of materials, semi-finished products and finished products, which is suitable for metal, plastic, rubber, textile, synthetic chemical products, wire and cable, leather industries use.
Test itemsStrength and selective elongation
Unit of strengthKg, N, Lb, g
Capacity selection1,2,5,10,20,50,100,200,500kg,1000kg,2000kg,5000kg,10000kg,20000kg
Load cell accuracy0.5% or less
Test strokeMax 1200mm does not include fixture
Test speed0.1~1000mm/min can be adjusted arbitrarily
Stop modeUpper and lower limit safety setting, emergency stop button,
program force and elongation setting, and test piece breakpoint sensing
EquippedOne set of standard fixtures, one help book and one product warranty card
PowerAC servo motor
StandardComputer connection equipment (1 signal line, 1 decryption lock, 1 program CD)
MonitorPC display
Extension unitmm,cm,in,%
Power resolution1/100,000
Test effective space400mm diameter range

Advantages

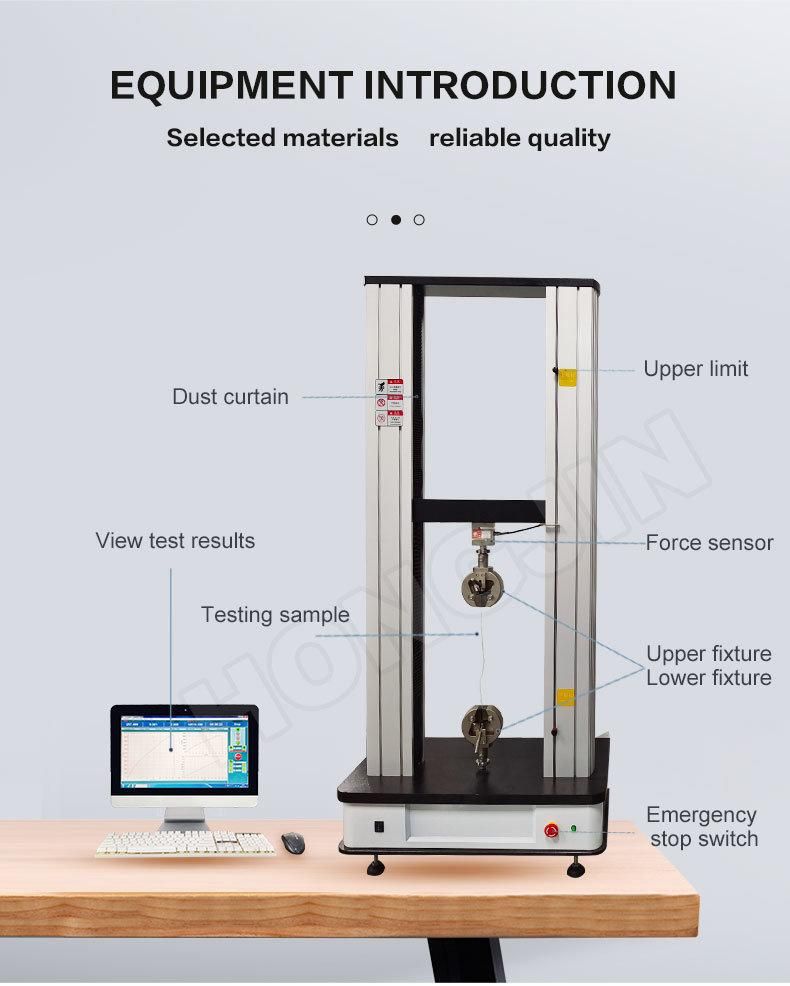

•Precision reducers, ball screws which significantly reduce the noise and transmission losses while increasing the transmission efficiency.
•1 Year Warranty.
•The seal plate mining anode hardening protects the ball screw and increase service life and precision of the instrument.
•Load cell has memory lock function which memorizes various parameters.
•Plug and play load cell.
• When using the external I/O signal contact various functions can be expanded.
•Jog control and very easy for operation of machine.

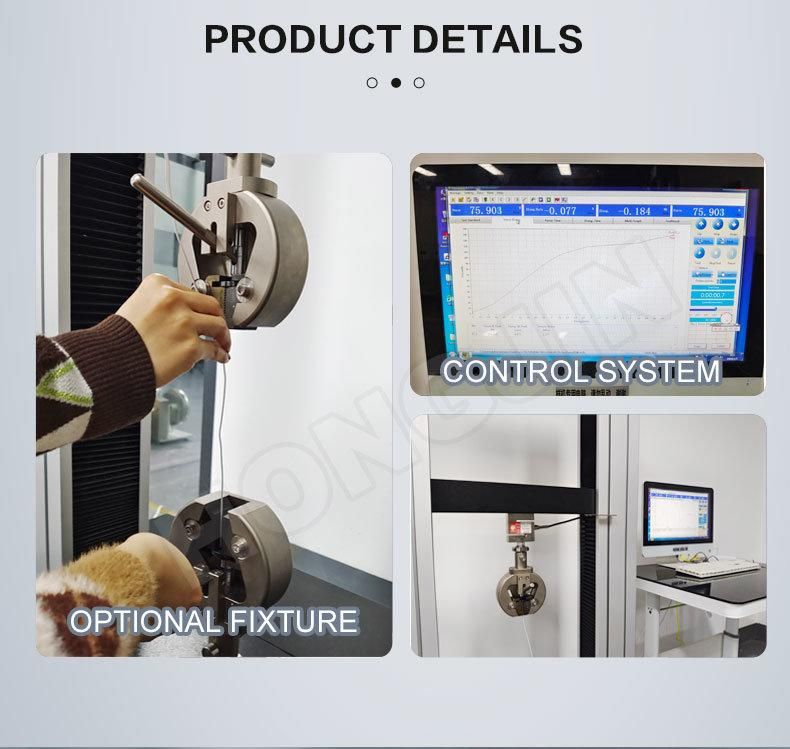

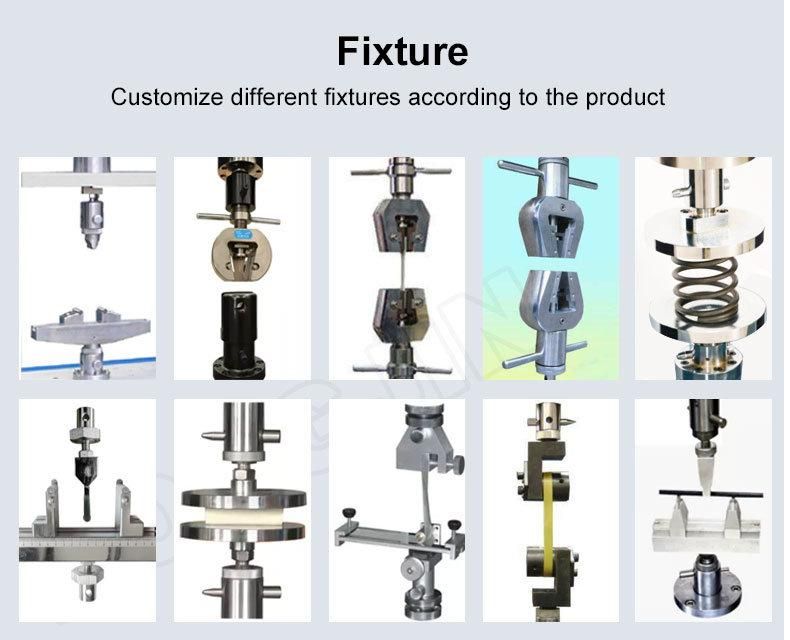

• Many relevant tests can be performed with optional grips and extensometer of fixtures.

Applicable standards of compression spring tester
GB/T 16491-1996, GB/T12160-2002, GB/T16825-1997, ASTM D903, GB/T2790/2791/2792, CNS11888, JIS-K6854, PSTC7
