• Model NO.：16-T0012,E
• HS Code：90248000
• Production Capacity：10000 PCS,Year

Basic Info.

Model NO. 16-T0012/E HS Code 90248000 Production Capacity 10000 PCS/Year

Product Description

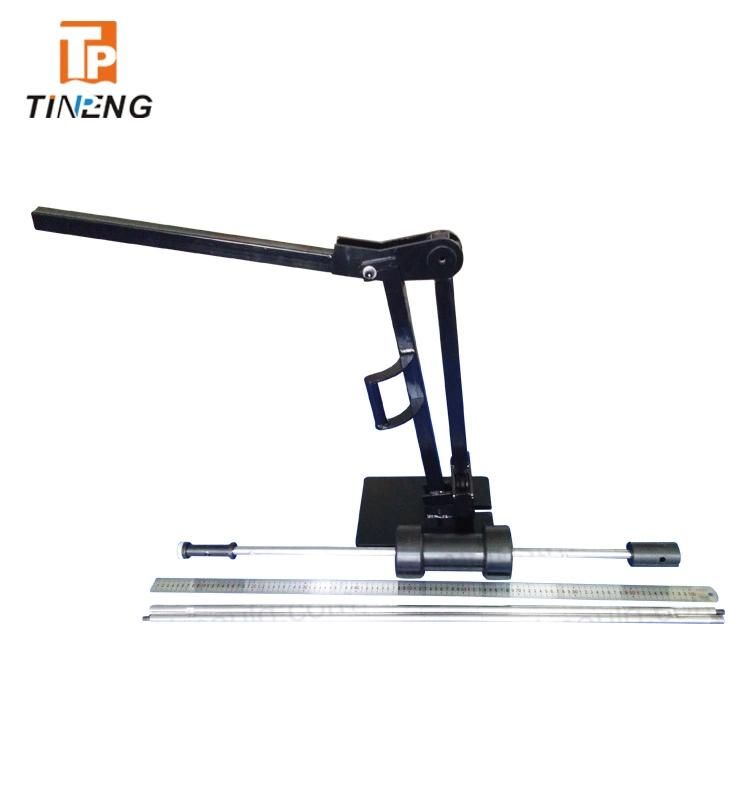

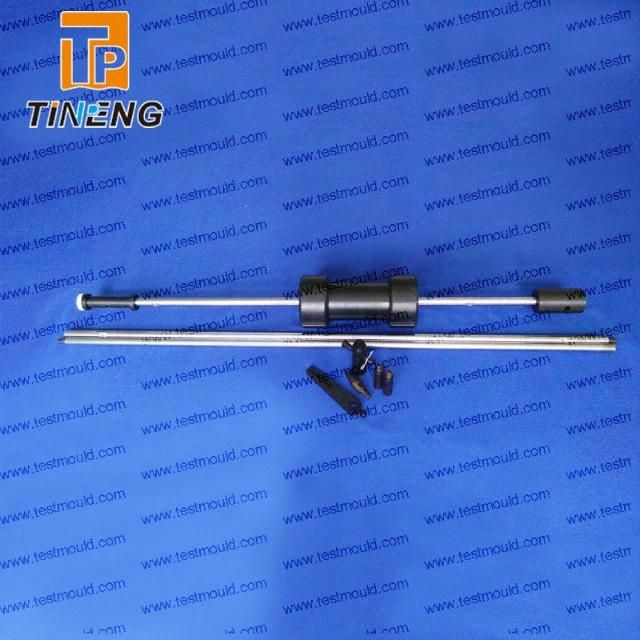

Australian 9kg DCP DYNAMIC CONE PENETROMETER

 Specifications

 This 9kg DCP is a rugged Australian made

piece of equipment with a proven track record.
The hammer assembly is a separate unit to which 900mm long graduated rods can be attached. The complete unit includes:
Comprises
16-T0012/E1    Reversible top nut
16-T0012/E2    Sliding rod
16-T0012/E3    Hammer, 9kg
16-T0012/E4    Anvil
16-T0012/E5    Bolt
16-T0012/E6    Helmet
16-T0012/E7    Upper attachment for scale
16-T0012/E8    Adjustable scale (graduated in mm)
16-T0012/E9    1m extension rod
16-T0012/E10   Bearing plate
16-T0012/E11   Standard DCP cone
16-T0012/E16   Spanners to suit Rods and Helmet
16-T0012/E17   Portable carrying case
Accessories and spare parts (need to be ordered separately)
16-T0012/E12   Perth penetrometer tip
16-T0012/E13   Rod extraction
16-T0012/E14   1.2m extraction rod
16-T0012/E15   1.5m extraction rod
