• Model NO.：GW-005B
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Electric Control
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-005
• Sample Number：1 PCS
• Bending Angle：90 Deg
• Testing Speed：0-150cpm Adjustable
• Counter：LED Display
• Dimension：100*33*50cm
• Transport Package：Wooden Case
• Specification：100*33*50cm
• Trademark：Great Win
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Pieces,Year

Basic Info.

Model NO. GW-005B Loading Method Static Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-005 Sample Number 1 PCS Bending Angle 90 Deg Testing Speed 0-150cpm Adjustable Counter LED Display Dimension 100*33*50cm Transport Package Wooden Case Specification 100*33*50cm Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Pieces/Year

Product Description

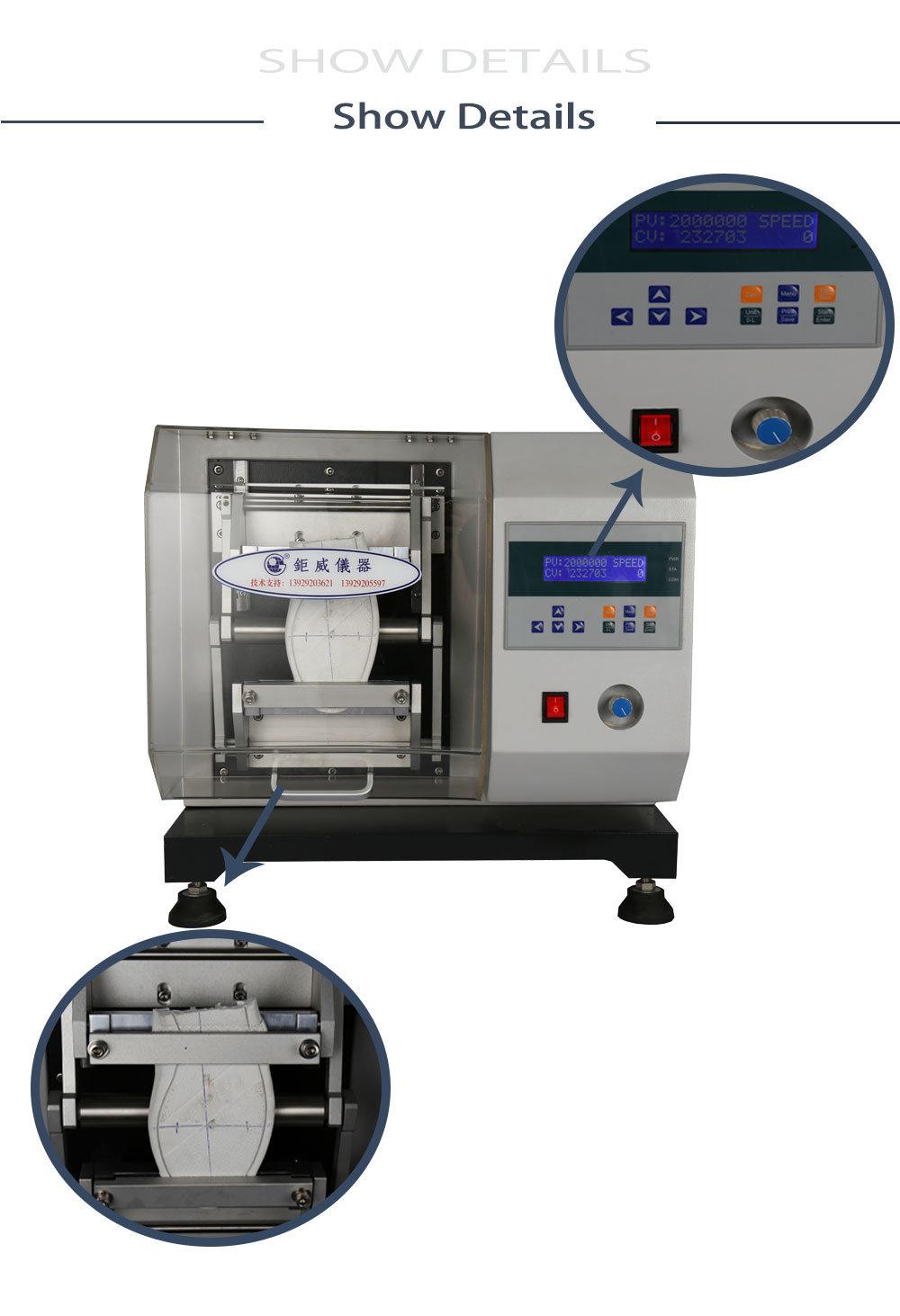

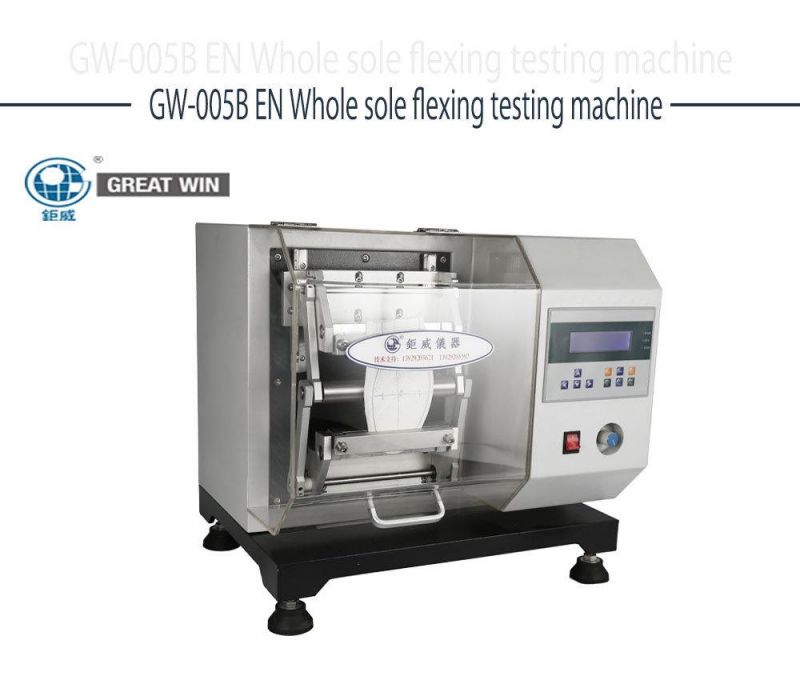

EN Whole sole flexing testing machine/Equipment(GW-005B)


•Brief introduction:
This machine is used to determine the resistance of materials to cut growth during repeated flexing. It is especially applicable to outsoles of footwear including sole constructions.

•Technical Specifications:

Model	GW-005B EN Whole sole flexing testing machine
Bending Angle	90 °
Circular shaft diameter	¢30 mm
Bending speed	125~150cpm adjustable
Grip width	144mm
Also try	1 sole
Counter	LED 0-999999
Size	560 * 560 * 450mm
Weight:	about40kg
Power supply	AC220V, 3A

•Standard for :
EN-344, SATRA TM161, ISO17707, GB/T20991

•Attached accessories:
1pc hole puncher     1pc hex wrench




What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
