• Model NO.：HD-801
• Filling Material：Glass Wool
• Air Outlet：150mm in The Air Box
• The Material of The Impacting Surface：Steel
• Impact Methods：The Chamber Drops Freely
• Transport Package：Strong Plywood Case
• Specification：304 stainless steel
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9024
• Production Capacity：150 Sets Per Month

Basic Info.

Model NO. HD-801 Filling Material Glass Wool Air Outlet 150mm in The Air Box The Material of The Impacting Surface Steel Impact Methods The Chamber Drops Freely Transport Package Strong Plywood Case Specification 304 stainless steel Trademark Haida Origin Dongguan, China HS Code 9024 Production Capacity 150 Sets Per Month

Product Description

Factory Direct Battery Impact Testing Machine
A test sample battery is to be places on a flat surface. A 5/8 inch (15.8mm) diameter bar is to be placed across the center of the sample. A 20pound (9.1kg) or 10kg weight is t be dropped from a height of 24 ±1 inch (610±25mm) onto the sample.This tester is suitable to the power battery and the litter battery and the other battery.

Design Standards UN38.3,SJ/T11169-1998,SJ/T11170-1998,UL1642-1995,UL2054-1997,QC/T 743-2006 ,QC/ 742-2006,QC/T 744-2006 ,GB/T18287-2000,GB 8897.4-2002 , IEC60086-4-2000 and so on.


Weight of the Impactor	9.1kg± 0.46Kg(20± 1pound) or 10 Kg
Impact Height	610 mm or 1000mm(or made by customers' demands)
Interior Material	SUS#304 Stainless Steel
Exterior Material	Galvanized the lacquer that bake
Filling material	Glass Wool
Air Outlet	150mm in the air box
The material of the impacting surface	steel
Impact Methods	The chamber drops freely
Using Circumstance	0 ~ 30° C
Power	AC220V, 5A
Weight	105kg

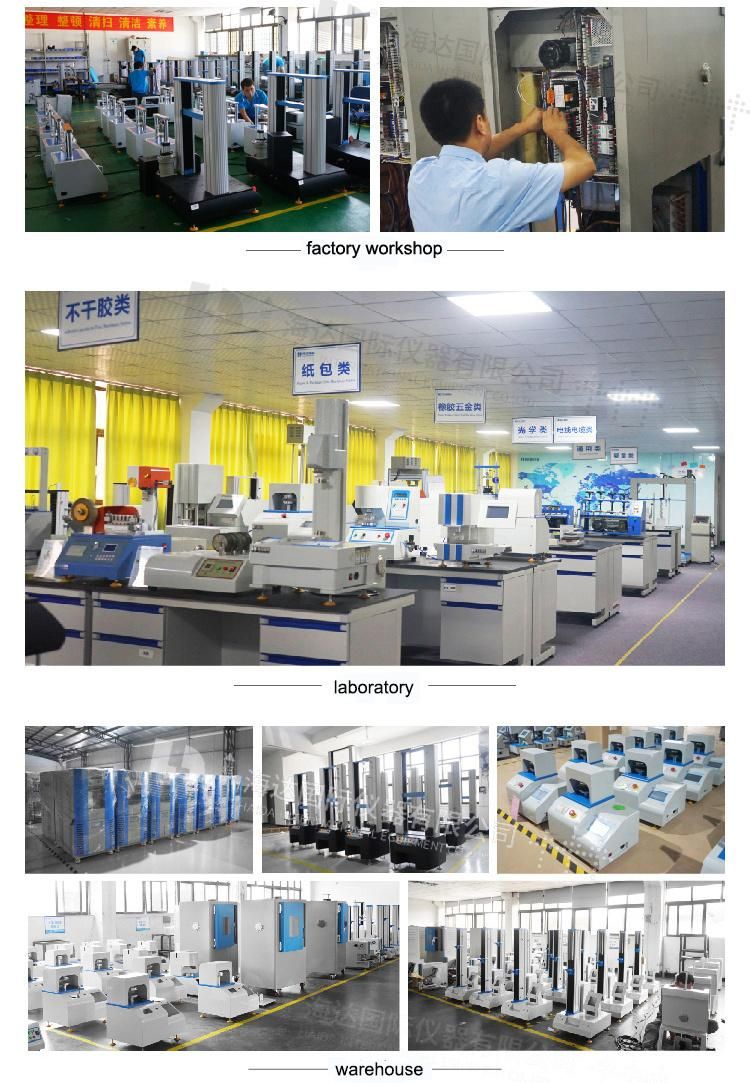

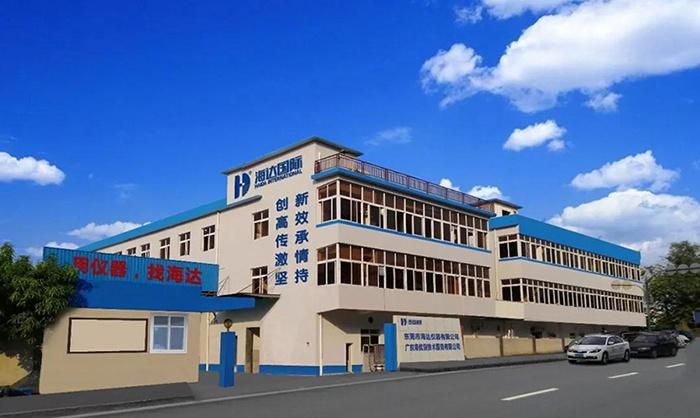

The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.




After-service
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
