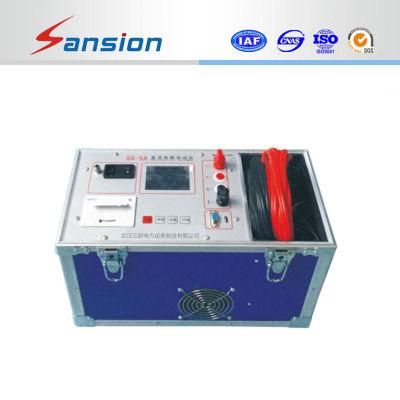

3A 5A 10A Transformer Winding DC Resistance Meter 3A 5A 10A Ohmmeter

Sansion Power Electric Co., Ltd.
  • Display：LCD
  • Current Range：Customized
  • Test Current：Automatic, <20mA, 40mA, 200mA, 1A, 5A, 10A
  • Minimum Resolution：0.1μΩ
  • Data Storage：1000 Groups
  • Maximum Power Consumption：200W

Base Info

  • Model NO.：SXZR
  • Transport Package：Plywood Case
  • Specification：ISO9001 SGS
  • Trademark：Sansion
  • Origin：Wuhan, China
  • HS Code：9030332000
  • Production Capacity：100 Units

Description

Test Current

2.5A  5A  10A  20A  (Current range is at your customized)

Measuring range

2.5A:

 5A:

10A:

20A:

2mΩ~16Ω

800μΩ~8Ω

400μΩ~4Ω

200μΩ~2Ω

Measuring precision

±0.2%(full scale)

Max. resolution

0.1μΩ

Power source

AC 220V±10%,50Hz±1 Hz

Working condition

Temperature:0°~40°RH:≤90% no condensation

Oversize

425500180(mm)

 Warranty: One year quality guarantee after shipment.


Please kindly contact with us for further information.
