High Temperature High Pressure High Humidity Pct Accelerated Aging Testing Chamber

Ai Si Li (China) Test Equipment Co., Limited
  • After-sales Service：Fast Response
  • Power Supply：1 Year
  • Certification：CE, TUV, ISO, BV, TUV
  • Warranty：1 Year
  • Usage：Temperature Pressure Test
  • Internal Dimension：Dia. 350*D450

Base Info

  • Model NO.：PCT-35
  • Temperature Range：100~135c
  • Humidity：100%R.H.
  • Steam Pressure：3.0kg,Cm2
  • Protect：Water Short Storage
  • Sample Shelf：Two Layers
  • Control Method：Pid Control or LCD Touch Screen
  • Transport Package：Wooden Case
  • Specification：43L
  • Trademark：ASLi
  • Origin：Guangdong, China
  • HS Code：8514109000
  • Production Capacity：100sets,Month

Description

Model

PCT - 25

PCT - 35

PCT - 45

PCT - 55

PCT - 65

Internal Dimension Φ×D (mm)

300×250

350×450

450×550

550×650

650×750

External Dimension Φ×D (mm)

750×1200×800

800×1250×800

900×1380×900

1050×1550×1100

1200×1700×1250

Temperature Range of Saturated Steam (Operating temperature)

(Temperature Range of Saturated Steam:100°C~135°C) ,

 Temperature Range: 120°C,100Kpa/ 133°C  200 Kpa;(143°C is special order)

Relative Pressure/ Absolute Pressure

 Relative pressure: display values  indicated on the  pressure gauge

Absolute pressure: Value that add 100 Kpa based on display values indicated on the  pressure gauge  (The actual value in the inner box)

Comparison Table of Temperature, Humidity , Pressure of Saturated Steam



Humidity of Saturated Steam

100%RH saturation steam humidity

Steam Pressure (Absolute Pressure)

101.3Kpa +0.0Kg/cm2 ~ 2.0Kg/cm2 ; (3.0Kg/cm2  is special standard)

Recursive Device

 Steam Natural convection circulation

Safety Protective Devise

Water short storage protect, over pressure protect.(have automatically/manual water replenishing, automatically discharge pressure function )

Accessories

Two layers  stainless steel plate

Equipment Capacity(L)

17

43

87

155

250

Power

 AC 220V(±10%), 1 ph 3  Lines ,50/60HZ ;

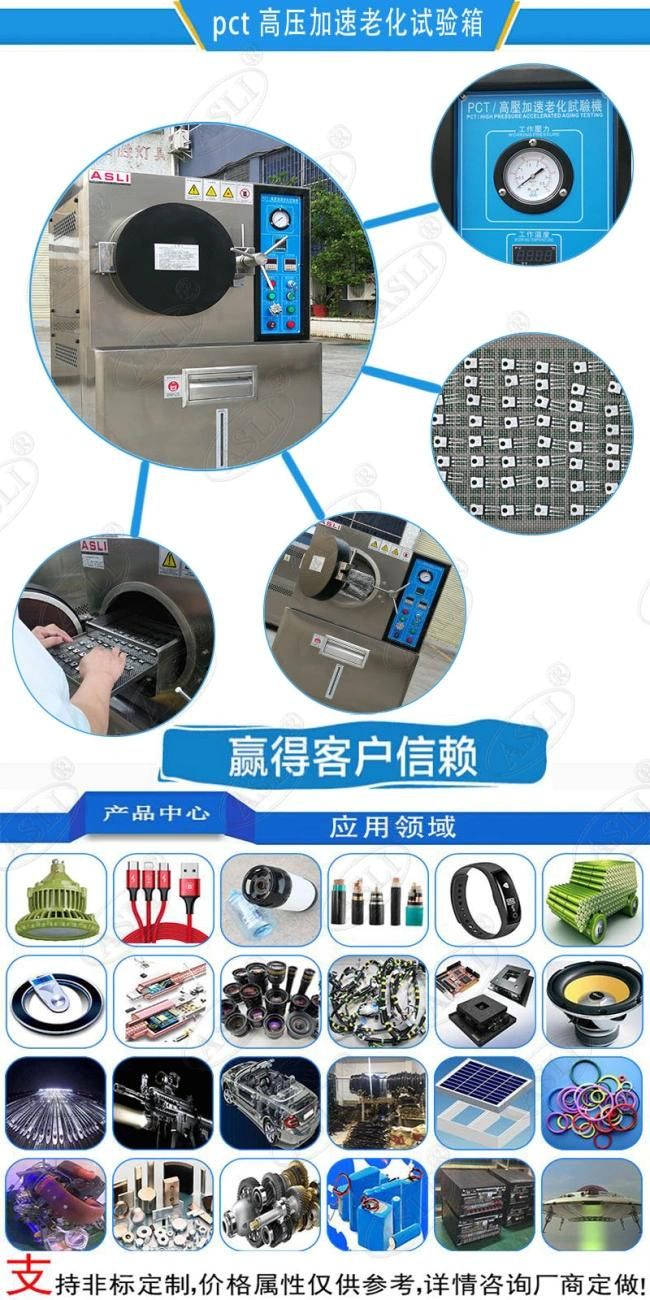

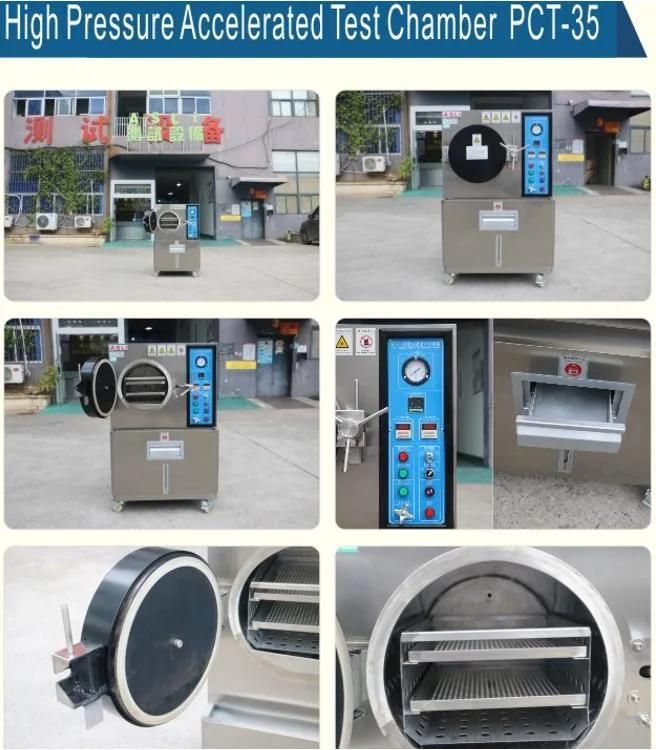

Product Pictures

High Temperature High Pressure High Humidity Pct Accelerated Aging Testing ChamberHigh Temperature High Pressure High Humidity Pct Accelerated Aging Testing Chamber


Packaging & Shipping

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.


Our service:
1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 monthes.

Our advantages:
1.Professional technology support.
2.Full experience of large numbers containers loading in Chinese sea port.
3.Fast shipment by reputed shipping line.
4.Best service after shipment with emails.
5.We are professional test equipment manufaturer in China with excellent experience and skills, also have best quality products

any needs about High Temperature High Pressure High Humidity PCT Accelerated Aging Testing Chamber, please feel free to contact us.
