• Model NO.：GDBC-901
• Turn Ratio Resolution：0.0001
• Test Voltage：0-80kv
• Product Name：Transformer Turns Ratio Tester Meter
• Transport Package：Wooden Case
• Specification：57*44*33CM
• Trademark：Gold
• Origin：Chongqing
• HS Code：9031809090
• Production Capacity：300PCS,Month

Basic Info.

Model NO. GDBC-901 Turn Ratio Resolution 0.0001 Test Voltage 0-80kv Product Name Transformer Turns Ratio Tester Meter Transport Package Wooden Case Specification 57*44*33CM Trademark Gold Origin Chongqing HS Code 9031809090 Production Capacity 300PCS/Month

Product Description

                       Portable Transformer Turn Ratio Tester / TTR Meter Analyzer



Function:

GDBC series TTR transformer turns ratio tester is applied to measure the voltage ratio of three or single phase transformer. All the test results could be printed by the micro printer or saved on the storage of the tester. The tester has a good performance on auto protection and anti-disturb.



Features:

1) Voltage ratio measurement of three or singe phase transformer
2) Group vector measurement of  three phase transformer.
3) Polarity measurement of single phase transformer or CT/PT
4) Voltage ratio error calculation
5) Current transformer ratio measurement
6) Excitation current measurement in ratio testing
7) Reproduction the AC test voltage from power source to reduce the effects of bad power source
8) Save the test results in the memory internal the tester
9) Print the test results by micro printer
10) Reverse connection detect unit to prevent the high voltage injected to the operate
11) Over current protection in test voltage
12) Upload the test results to make word report by RS232 interface



Specification:

Ratio measurement range	1~10000
Group measurement	1~12
Phase measurement error	1 degree
Ratio measurement error	1~2000: ± 0.2%RDG; 2000~10000: ± 0.5%RDG
Test Voltage	up to 80V
Power supply	AC220V ± 10%, 50/60Hz
Humidity	≤85%RH
Size	400*350*200 mm
Net weight	7kg

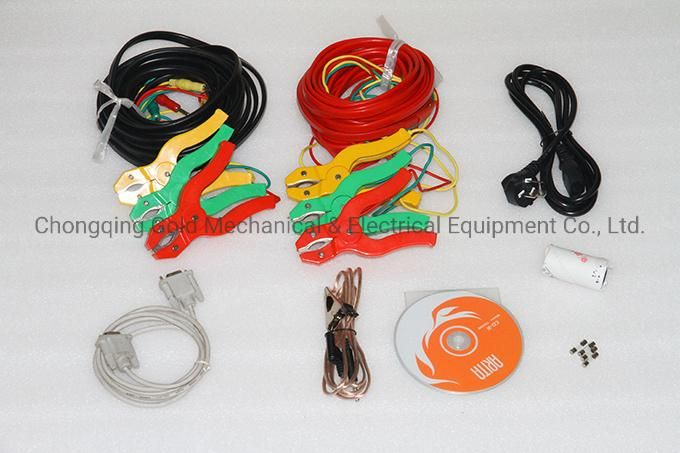

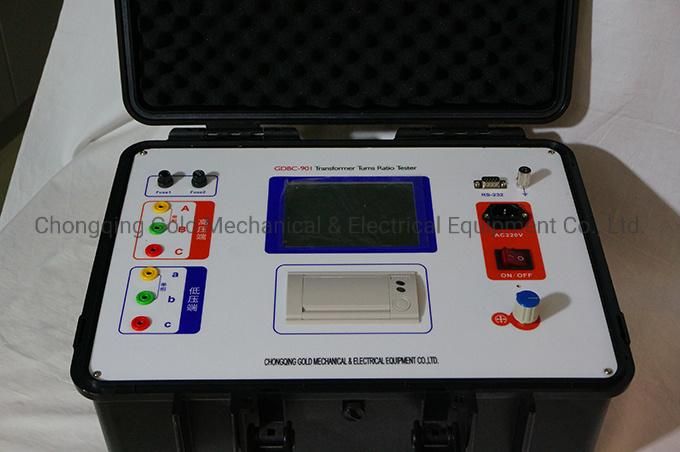

Item show:










About us

Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd was founded in 2008. We have a strong team including top sales, skilled engineers and we have our own manufacture with high quality. we mainly design and manufacture the Transformer Tester, Circuit Breaker Analyzer, CT PT Analyzer, Hipot Tester , Relay Tester and so on for more than 10 years.
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of oil purifier and electrical testing equipment in China;
We have developed sales channels in many countries such as UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide.
And we have gained strong advantage and high reputation in international market.

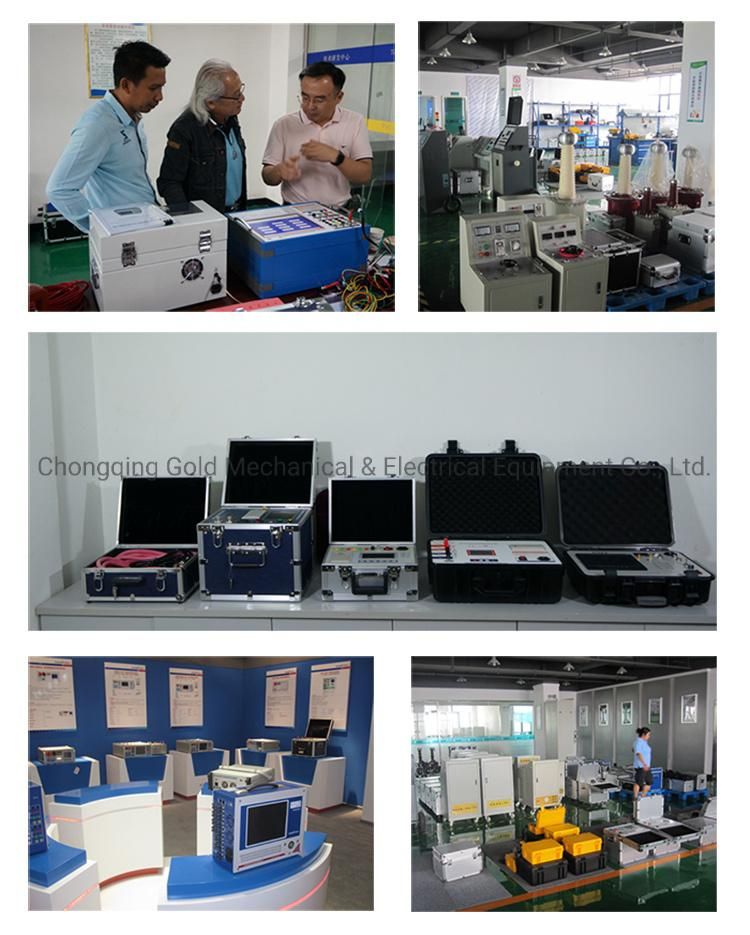

Our workshop
