• Model NO.：HTFC-2G
• Power Consumption：8W

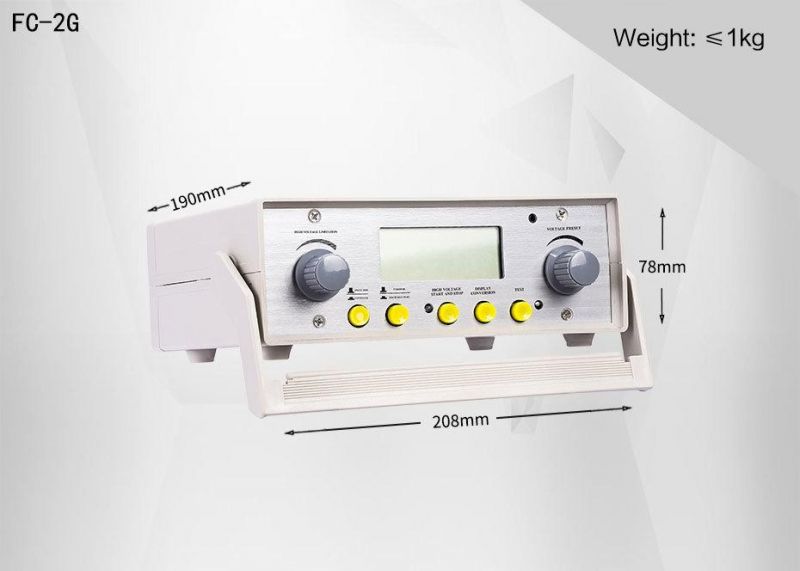

• Dimension：208*190*78mm3
• Weight：Less Than 1kg
• Transport Package：Wooden Case or Carton
• Specification：see details
• Trademark：HV TEST
• Origin：China
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. HTFC-2G Power Consumption 8W Dimension 208*190*78mm3 Weight Less Than 1kg Transport Package Wooden Case or Carton Specification see details Trademark HV TEST Origin China Production Capacity 200 Sets Per Month

Product Description

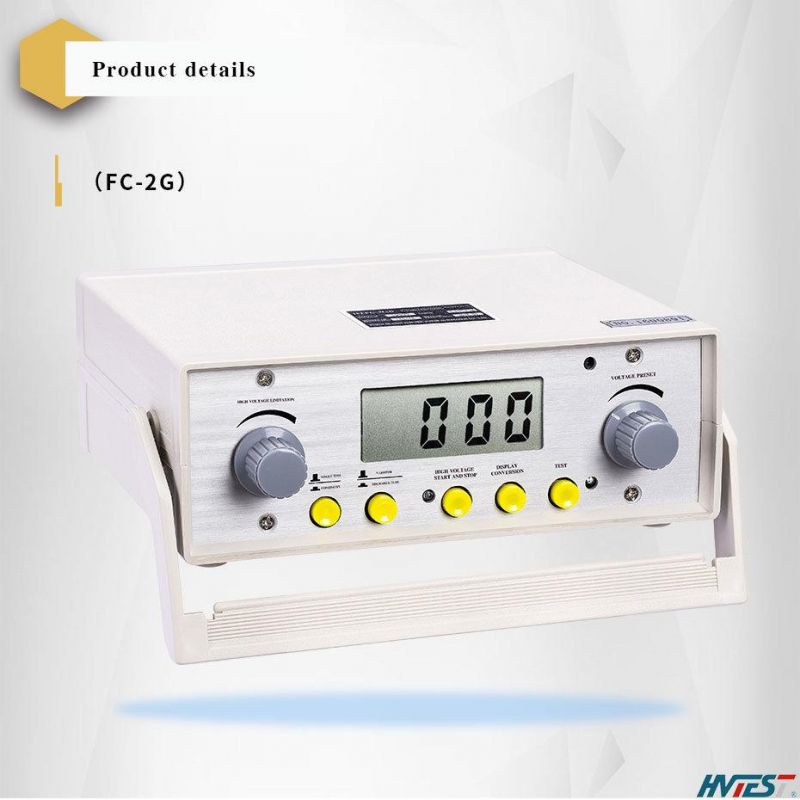

Product overview
Applies to test the DC parameters of Oxide Zinc arrester (voltage dependent resistor), cermet second, third electrode discharge tube, vacuum lightning tube and others over-voltage protection components

Products features
1. Applies to test the DC parameters of Oxide Zinc arrester (voltage dependent resistor), cermet second, third electrode discharge tube, vacuum lightning tube and others over voltage protection components. It also can be considered as stable power source and constant current power supply.
2. With HV short circuit protection, over current protection, high voltage preset, range adjustment functions, HV self discharge time less than 0.5 second.
3. With self calibration function.
4. LCD display, high precision, strong reliability.
5. Pre-set the measurement range when testing, there will be sound alarm if exceed the measurement range.
6. Choose continuous measurement can make continuous test for mass measured equipments.

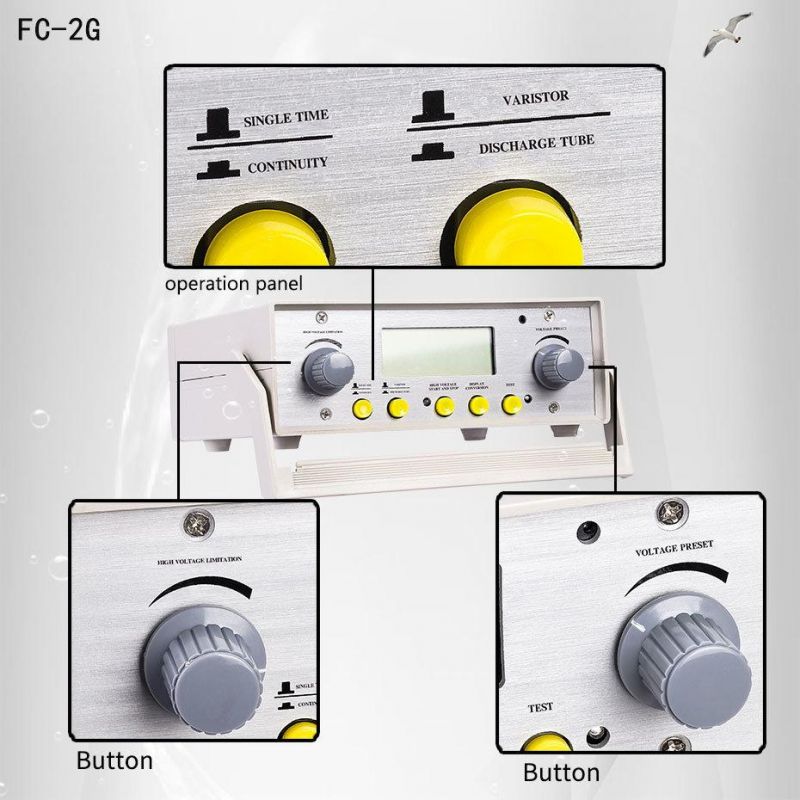

7. Panel function is simple, easy to operate.
8. Light in weight, easy to carry.

Technique parameters
1. Voltage dependent resistor measurement

Technical Specifications	Measurement range	Maximum error	Test Conditions
Initial operating Voltage (U 1mA)	0~1700V	≤±2%±1d	1mA±5μA
Leakage current ( I 0.75U 1mA)	0~199.9μA	≤±2μA ±1d	0.75 U1mA

2. Discharge tube measurement

Technical Specifications	Measurement range	Maximum error	Test Conditions
DC breakdown voltage( V sdc )	(20~1700)V	≤±2%±1d	Voltage rise rate:100V/S±10%

3. Other parameters

Insulating resistance	6MΩ(500V)
Voltage withstand	AC1.5kV 50HZ 1min
Temperature and humidity	0~+40ºC,≤85%RH
Storage temperature and humidity	-10ºC~+50ºC,≤90%RH
Power supply	DC15V dedicated power supply
Power consumption	8W
Dimension	208×190×78mm3
Weight	≤1kg

Common problem
1. Is your company a sales company or a manufacturer?
Wuhan Huatian Electric Power Automation CO., LTD.is an industrial and trade enterprise, with its own  factory, self-produced and self-sold. We were founded in 2004 and have fifteen years of production experience. Our company has reliable production lines, test rooms and R&D centers.

2. Whether the goods are in stock, whether they can be customized, and how long the delivery time is.
After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.

3. Is the quality guaranteed?
In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.

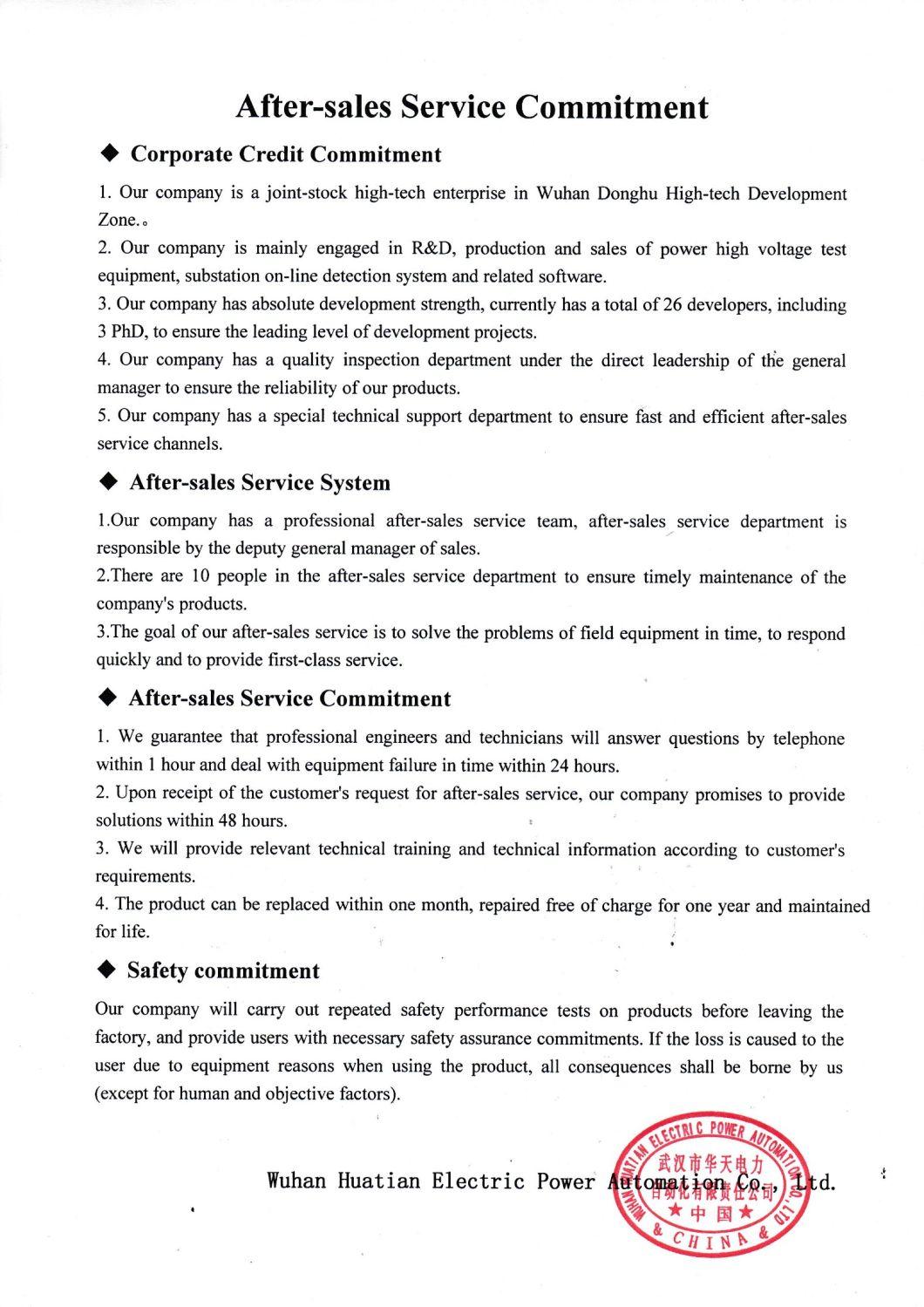

4. What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.

5. What are the cooperative countries or regions?
Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam and other regions have cooperative distributors, can provide thoughtful services.
