• Model NO.：HD-E808-160
• Product Usage：Salt Corrosion Test Machine
• Test Standard：ASTM B117, ISO and JIS Standard
• Warranty Period：One Year
• Delivery Time：15 Days After Receive The Deposit
• Model：HD-160
• Inner Box Size (L* W* H)：160* 100* 50 Cm
• Outside Box Size(L* W* H)：230* 130* 140 Cm
• Temperature Range：35 Centigrade Degrees to 55 Centigrade Degrees
• Brine Temperature：35 Centigrade Degrees± 1 Centigrade Degrees
• Transport Package：Strong Plywood Case
• Specification：ASTM B117; Cns: 3627, 3385, 4195, 7669
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9031809090
• Production Capacity：150 Sets,Month

Basic Info.

Model NO. HD-E808-160 Product Usage Salt Corrosion Test Machine Test Standard ASTM B117, ISO and JIS Standard Warranty Period One Year Delivery Time 15 Days After Receive The Deposit Model HD-160 Inner Box Size (L* W* H) 160* 100* 50 Cm Outside Box Size(L* W* H) 230* 130* 140 Cm Temperature Range 35 Centigrade Degrees to 55 Centigrade Degrees Brine Temperature 35 Centigrade Degrees± 1 Centigrade Degrees Transport Package Strong Plywood Case Specification ASTM B117; Cns: 3627, 3385, 4195, 7669 Trademark Haida Origin Dongguan, China HS Code 9031809090 Production Capacity 150 Sets/Month

Product Description

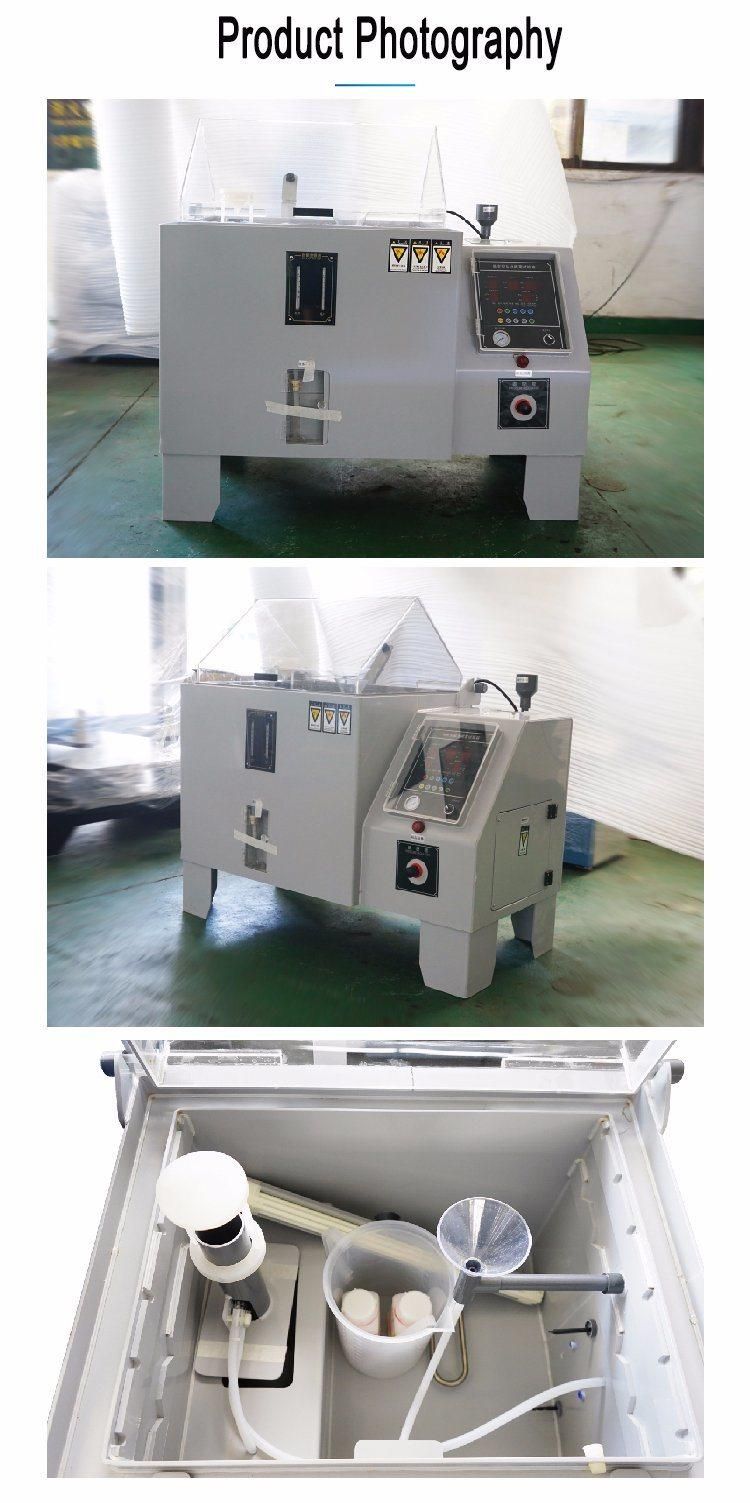

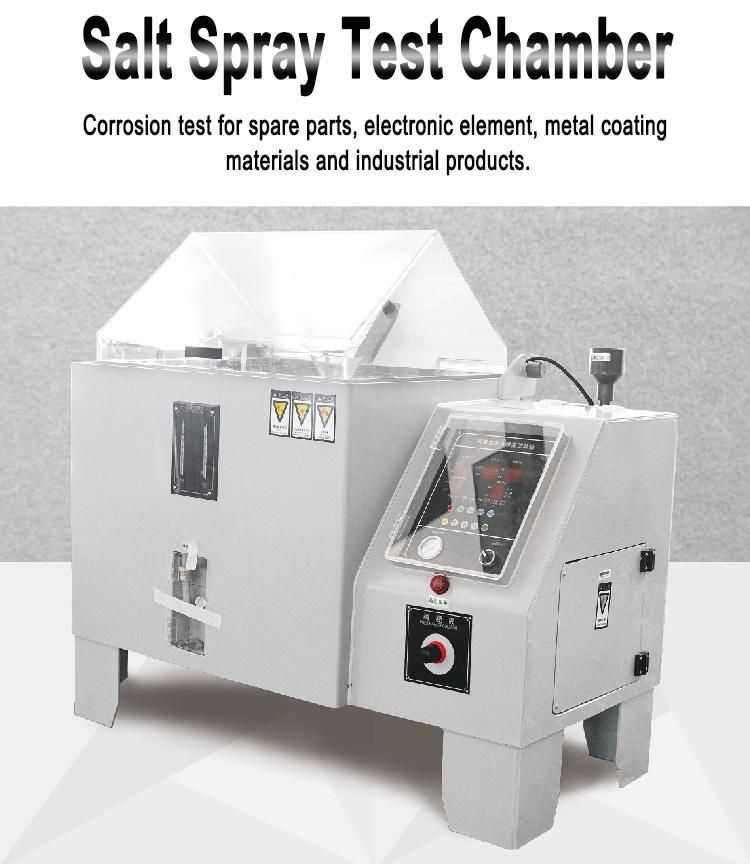

          Anti-Corrosion Salt Spray Machine / Salt Fog Environment Testing Machine





Salt Fog Machine adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.


Features:

1 Durable hard PVC construction, anti-corrosion, easy to clean.
2 Reservoirs with mixing system on stand.
3 Cabinet heated by water jacket, heating element from USA famous company.
4 Separate heating system, be apart from salt testing chamber to ensure accurate result and protect circuit.
5 Exposure zone lined with corrosion-resistant PVC sheets.
6 Clear cover allows viewing of test conditions.
7 Peaked cover prevents dripping of condensation onto samples.
8 Water seal and water level protection system.
9 Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
10 Automatic DI water fill to humidifying tower.
11 Digital temperature control and readouts.
12 Integral over-protection on all heaters.
13 Low water cut-off protection on humidifying tower.

Model	HD-E808-160
Inner Box Size (L× W× H)	160× 100× 50 cm
Outside Box Size(L× W× H)	230× 130× 140 cm
Equipment Material	Both inside & outside shell of the salt spray tester adopt imported P. V. C rigid plastic board, and tank cover uses imported transparent  P. V. C. rigid plastic board
Temperature Range	35  centigrade degrees to 55 centigrade degrees
Temperature Fluctuations	≤ ± 0.5 centigrade degrees
Temperature Uniformity	≤ ± 2 centigrade degrees
Temperature Precision	± 1 centigrade degrees
Test Chamber Temperature	Salt Spray Method (NSS ACSS)35± 1 centigrade degrees Corrosion-resistant Testing Method (CASS) 50± 1 centigrade degrees
Saturated air Barrel Temperature	Salt Spray Method (NSS ACSS)47± 1 centigrade degrees Corrosion-resistant Testing Method (CASS) 63± 1 centigrade degrees
Brine Temperature	35 centigrade degrees± 1 centigrade degrees
Spray Quantity	1.0~2.0 ml / 80cm2 / hr
PH	Salt Spray Method (NSS ACSS6.5~7.2)   Corrosion-resistant Testing Method(CASS)3.0~3.2
Lab Volume	800L
Brine Tank Capacity	40L
Power	AC220V, 10A
Multiple Safety Protection Devices	Current discharge protection, over pressure protection, over temperature protection, over load fuse protection
Accessories	Testing Salt/ Measuring tank/ Equipment  each 1 set
Standard	CNS: 3627, 3385, 4159, 7669, 8886; JIS: D0201, H8502, H8610, K5400, Z2371; ISO: 3768, 3769, 3770; ASTM: B117, B268
