Suin Tfg368X Series RF Signal Generator

Shijiazhuang Suin Instruments Co., Ltd.
  • Warranty:18 Months
  • Certificate:CE RoHS ISO9001
  • OEM/ODM:Yes
  • Weight:4.2 Kgs
  • Frequency Range:10MHz~12GHz,20GHz
  • Amplitude Range:-25dBm~+15dBm

Base Info

  • Model NO.:TFG3681,TFG3682
  • Frequency Resolution:20Hz
  • Amplitude Resolution:0.1dB
  • Pm Break-Make Ratio:60dbc
  • Transport Package:Carton Package
  • Specification:254*103*374 mm
  • Trademark:SUIN
  • Origin:China
  • HS Code:8543209090
  • Production Capacity:30, 000 Sets,Year

Description

FrequencyRange10MHz~12GHz10MHz~20GHzResolution20Hz1mHz(option)Accuracy±1ppm,Frequency≥1.0kHz,18ºC-28ºCAmplitudeSetting Range-25dBm~+15dBmSpecified Range-10dBm~+13dBmResolution0.1dBAccuracy±1.5dBm of setting(output level:+13dBm~-10dBm)Output Impedance50ΩSpectrum PurityHarmonic<-35dBc<-20dBcNon-harmonic<-70dBcPhase Noise-94dBc/Hz@10kHz,at 10 GHz output-94dBc/Hz@10kHz,at 10GHz output
-121dBc/Hz@10kHz,at 10GHz ourput(option)ModulationPM break-make ratio60dBcMake-break time range100nS-10mSGeneral CharacteristicsPowerAC200V~240V, 50(1±10%)Hz,<40VADimension&Weight254*103*374mm,4.2kg

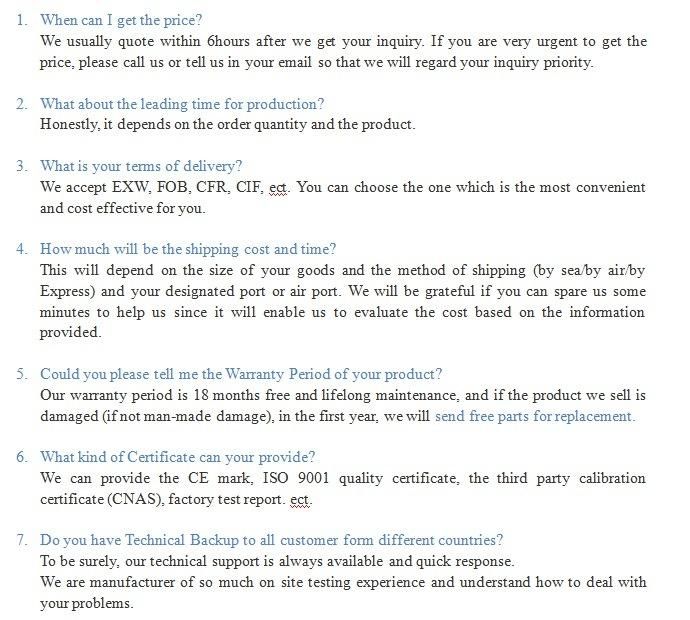

                                                                       F A Q
