• Model NO.：XHJB666
• Trademark：XZH TEST
• Origin：China Xi′an
• HS Code：854320100
• Production Capacity：100 Pieces ,Year
• Package size per unit product：45.00cm * 36.00cm * 20.00cm
• Gross weight per unit product：40.000kg

Basic Info.

Model NO. XHJB666 Trademark XZH TEST Origin China Xi′an HS Code 854320100 Production Capacity 100 Pieces /Year

Packaging & Delivery

Package size per unit product 45.00cm * 36.00cm * 20.00cm Gross weight per unit product 40.000kg

Product Description



Product Introduction

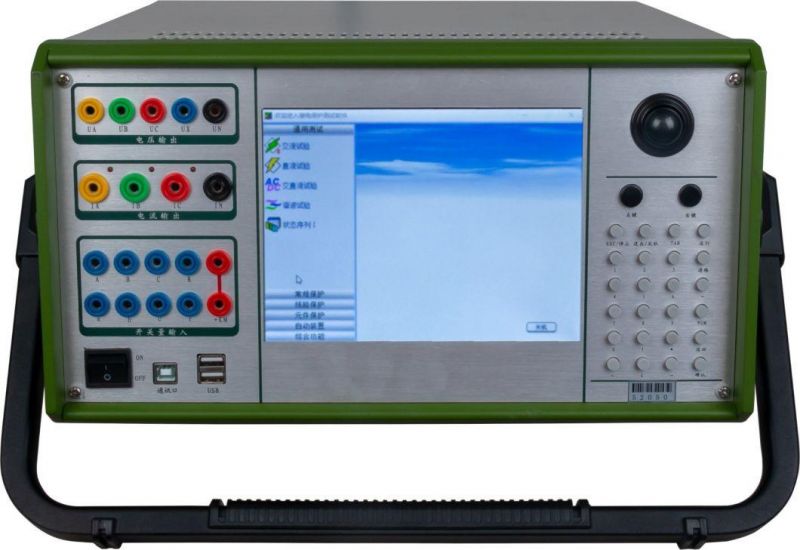

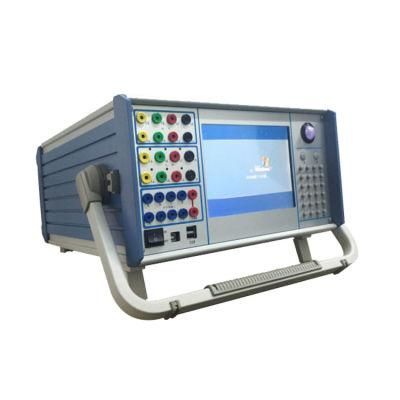

XHJB666 microcomputer relay protection calibrator is a new type of miniaturized microcomputer relay protection tester fully realized by modern advanced microelectronic technology.

Main Feature

1. Output up to 6-phase voltage 6-phase current, which can be combined to realize conventional 4-phase voltage 3-phase current type, 6-phase voltage type, 6-phase current type, and 12-phase output mode.



2. High-performance embedded industrial control computer and 8.4-inch large-screen high-resolution color TFT LCD



3. The output uses a high-fidelity, high-reliability modular linear power amplifier instead of a switch-type power amplifier for superior performance.



4. The output part is controlled by DSP, the operation speed is fast, the real-time digital signal processing capability is strong, the transmission frequency bandwidth is controlled, and the high-resolution D/A conversion is controlled.



5. It can complete a variety of large-scale complex verification work with high degree of automation. It can easily test and scan various protection settings, perform fault playback, store test data in real time, display vector graphics, and print reports online.



6. It has an independent 110V and 220V dedicated adjustable DC power output for on-site inspection.



7. The new generation TP-60A tester is equipped with 10-way opening and 8-way opening for easy self-injection test. The input contact is an empty contact and is compatible with 0~250V potential contacts, which can be intelligently and automatically recognized.



8. Provide various automatic test software modules and GPS synchronous trigger test (optional).



9. Can perform a variety of complex calibration tasks, and can easily test and scan various protection settings for fault playback. Can store test data in real time, display vector graphics, print reports, etc.

10. The design of the heat dissipation structure is reasonable, the hardware protection measures are reliable and perfect, and the power soft start function, the software self-diagnosis of the fault and the output latching function are provided.



Main Specifications

AC current output

11. 6-phase current output per phase output (effective value) 0 to 30A

12. Output accuracy ≤0.5A ±2mA

13.                    >0.5A 0.2%

14. Output per phase (effective value) when 3-phase current is output 0 to 60A

15. 6-phase parallel current output (RMS) 0~180A

16. Phase current allowed for a long time (effective value) 10A

17. Phase current maximum output power 400VA

18. Allowable working time for maximum output of 6-phase parallel current 10s

19. Frequency range (fundamental) 0~1000Hz

20. Harmonic times 1 to 20 times



DC current output

21. Current output 0~±10A / per phase, 0~20A / two-phase superposition Output accuracy 0.5

22. Maximum output load voltage 20V

AC voltage output

23. Phase voltage output (RMS) 0~120V Output accuracy 0.2 level

24. Line voltage output (RMS) 0~240V

25. Phase voltage / line voltage output work 80VA / 100VA

26. Frequency range (fundamental) 0~1000Hz

27. Harmonic number 1 to 20 times

DC voltage output

28. Phase voltage output amplitude 0~±160V Output accuracy 0.5 level

29. Line voltage output amplitude 0 ~ 320V

30. Phase voltage / line voltage output power 70VA / 140VA

Switch

31. 10-channel digital input

32. Empty contact 1~20mA, 24V

33. Potential contact is connected to "0": 0 to +6V; "1": +11 V to +250 V

34. 8 pairs of switching outputs DC: 220 V / 0.2 A; AC: 220 V / 0.5 A

Time measurement range

35. 0.1ms ~ 9999s, measurement accuracy <0.1mS

36. volume and weight : 480×360×200mm3    19kg
