Laboratory Equipment Semi-Automatic 300/500/750j Charpy Izod Pendulum Impact Tester (JB-B)
Jinan Kason Testing Equipment Co., Ltd.- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Impact Testing Machine
- Maxcapacity：300j,500j,750j
- Accuracy Grade：1
- Load Way：Electronic Load
Base Info
- Model NO.：JB-300B,500B,750B
- Loading Method：Static Load
- Display：Needle
- Control：Manual Control
- Weight：100-500Kg
- Power Source：AC380V
- Impact Energy：150j 300j 250j 500j 750j or Customized
- Pendulum：150j 300j Each PC
- Impact Speed：5.2-5.4m,S
- Pre-Rising Pendulum：150
- Specimen Bearer Span：40-40.2mm
- Round Angel of The Jaw：R 1.0~1.5 mm
- Thickness of Impact Blade：16mm
- Transport Package：Plywood Exporting Package
- Specification：360kg 1.68CBM
- Trademark：HST
- Origin：Jinan, Shandong, China
- HS Code：9031809090
- Production Capacity：500sets,Month
Description
150ºStandard span (mm) 40 Distance between pendulum rotating center and specimen center (mm) 750 Round angle of jaws (mm) R1-1.5 Round angle of striking edge (mm) R2-2.5 or R8 Size of specimen (mm) 10 x 10 x 55 Power supply 3phs, 380V, 50Hz/60Hz or Specified by users Dimensions (mm) 2124 x 600 x 1340 2144 x 736 x 1390 2450 x 1200 x 2455 Gross weight(KG) 550 750 2300

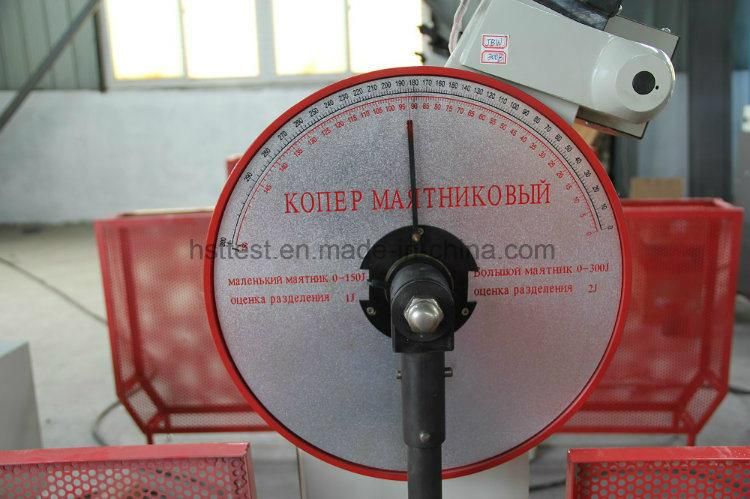

Dial Display Test Results( customized language ):

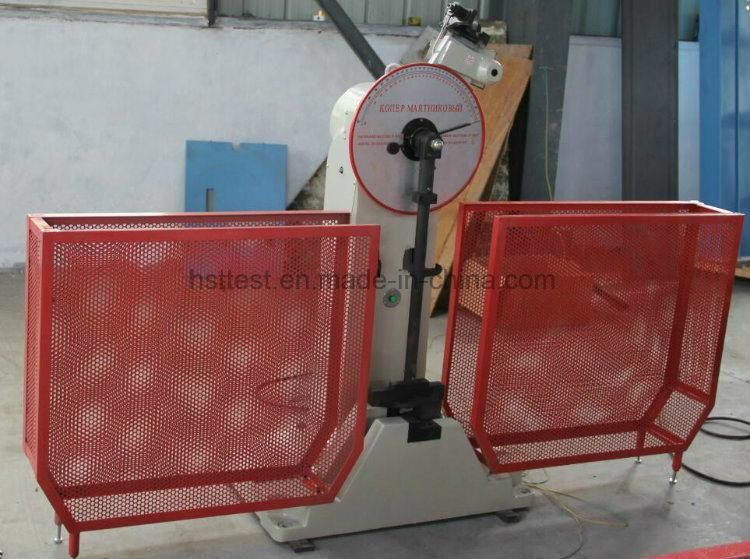

Detailed Pics and Factory Pics:

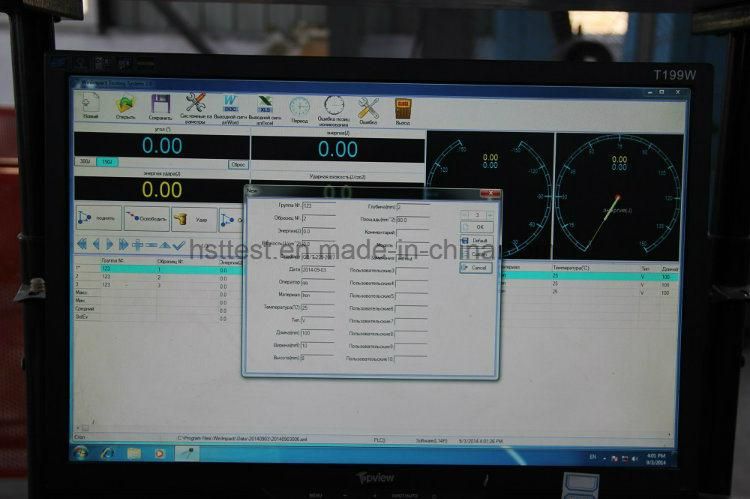

If need the computer control impact testing machine, we have professional software:
CE and ISO certifications to guarantee our high quality:

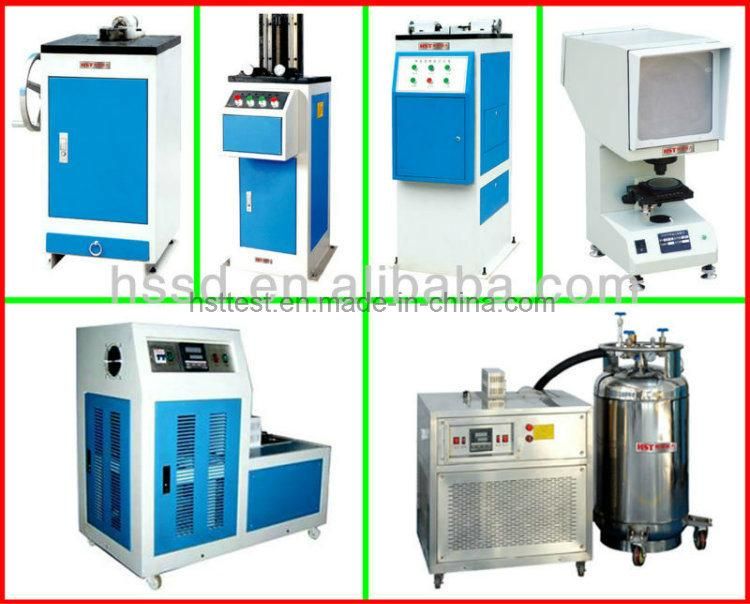

Dear Customer, we also have the below impact teters and attached machines for choice:
Dial Display impact testing machines
Digital control impact testing machines
Computer display impact testing machines
Computer automatic low temperature impact testing machines from minus 60 to 190 degree
Projector for impact specimen
Broaching machine for specimen
Impact testing low temperature chambers
Dear customers, for more informations please send enquiry directly to Sunny:Jinan Hensgrand Instrument Co., Ltd
ADD: NO. 4915, West Jingshi Road, Jinan 250012, PR CHINA.
Tel: +86-531-58618759 82351201
Fax: +86-531-81901323
Mobile: +86-15866777590
Website: http://hsttest.en.made-in-china.com
| 5.1 | Main Unit | 1 SET |
| 5.2 | Pendulum(JB-300B, 300J/150J)(JB-500B, 500J/250J) | 2 PCS |
| 5.3 | Span Specimen Plate (L = 40mm) | 1 PC |
| 5.4 | Specimen Centering Plate (L = 40mm)(U, V) | 1 PC |
| 5.5 | Stripping Attachment | 1 PC |
| 5.6 | Internal Hexagonal Wrench (S=12mm) | 1 PC |
| 5.7 | Anchor Bolts (M16x300mm) | 4 PCS |
| 5.8 | Adjustment Wedges | 4 PCS |
| 5.9 | Impact Testing Safety Guard Net | 1 SET |
| 5.10 | Full-closed enclosure(Optional) | 1 SET |
