• Model NO.：WDW-10D
• Testing Before Delivery：Yes
• After-sale Customer Service：Yes
• Stock：Yes
• Transport Package：Standard Exporting Wooden Package
• Trademark：DahoMeter
• Origin：Dongguan, China
• HS Code：9027809900
• Production Capacity：300 Sets,Month

ModelWDW-10WDW-10EMax. Load10 KNStructure

Four-column Floor Model (Upper Is Compression And Lower

Is Tensile OR Upper Is Tensile And Lower Is Compression)

Control MethodComputer Automatic ControlLoad Accuracy1 Class0.5 ClassLoad Range

2%~100% FS

(0.20KN~10KN)

0.2%~100% FS

(0.02KN~10KN)

Motor

TaiWan TECO

AC Servo Motor

Panasonic Motor,

Made In Japan

Sensor

High Precision Load Sensor,

Made In China

Import Sensor,

Made In USA

Resolution1/300000

Measuring Range Of

Deformation

2%~100%

Accuracy Indication Of

Deformation

≤±1%Disp. Indicating Relative Error≤±1%Displacement Resolution0.04um

Adjusting Range Of Control

Rate Of Load

0.005~5%FS/S

Control Precision Of Control

Rate Of Load

When rate < 0.05% FS/s, the precision is within ± 2% of setting value;

When rate ≥ 0.005%FS/s, the precision is within ± 1% of setting value.

Adjustment Scope Of

Deformation Rate

0.005~5%FN/SAccuracy Of Deformation Rate

Test Speed<0.05%FN/s, within the ±2% of the preset value,

Test Speed≥0.05%FN/s, within the ±0.5% of the preset value.

Adjusting Range Of

Displacement Rate

0.05~1000mm/min (Can be customized)

Control Precision Of

Displacement Rate

When rate < 0.5mm/min, within ± 1% of setting value;

When rate ≥ 0.5mm/min, within ± 0.5% of setting value.

Scope Of The Consistent Load

Deformation And Displacement

Control

0.5%~100%FS

Accuracy Of The Consistent Load
Deformation And Displacement

Control

Preset value≥10%FN, within the ±0.1% of preset value;

Preset value<10%FN, within the ±1% of preset value.

Tensile Space800mm (Can be customized)Compression Space800mm (Can be customized)Effective Spacing400mm (Can be customized)Load Cell Configuration

One PC (Max Load).

More load cells can be added according to customer requirement.

Extend Configuration

Large deformation extensometer,

High or low temperature test chamber, High temperature oven.

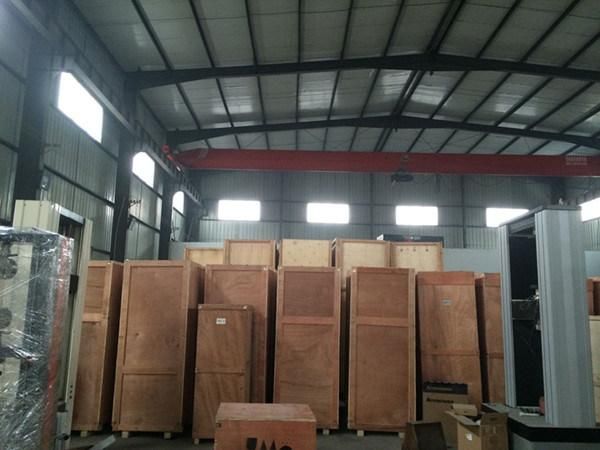

Power SupplyAC 220V±10%, 50Hz (Can be customized)GripsWedge Type, Plate Type And Other Grips As Customers' DemandDimension740*420*1720mmWeight160 KGPackaging & Shipping:

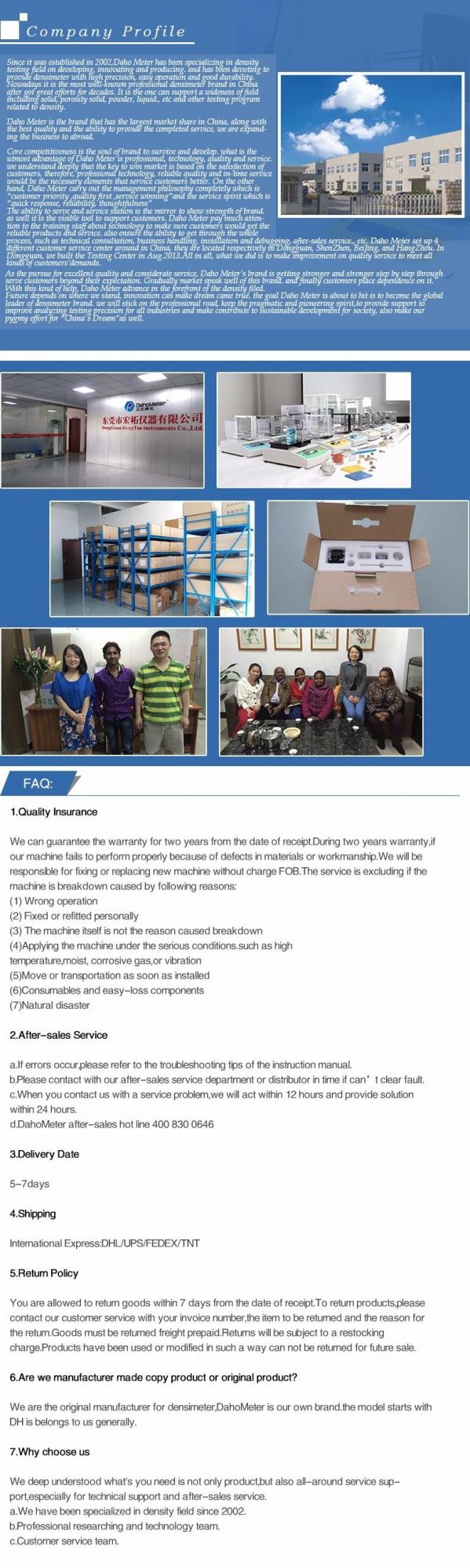

Company Information:
