Current Transformer Automatic CT PT Analyzer Instrument Transformer Testing Equipment for Gis CT Testing

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Warranty：1 Year
  • Test Standards：IEC60044-1,2,5,6 , IEC61869-2
  • Knee Point：Max 45kv
  • Voltage Output：0.1~180V (AC)
  • Current Output：0.001~5A(RMS)
  • Power Output：500va

Base Info

  • Model NO.：GDVA-405
  • Accuracy：0.02%(Typical); 0.1% (Guaranteed)
  • Turns Ratio Measurement Range：1~35000
  • Transport Package：Plywood Case
  • Specification：39kg
  • Trademark：GOLD
  • Origin：Chongqing, China
  • HS Code：9030849000
  • Production Capacity：500 Pieces,Month

Description

For Potential Transformer Testing (CT)1Turns ratio measurement1~30000,
1~2000, error<0.05%;
2000-5000, error<0.1%;
5000~30000, error<0.2%2Voltage measurement range0~200V (automatically change range in 1V/10V/70V/200V)3Voltage measurement error< ±0.1%+0.01%FS4PT phase angle measurement maximum error < 5min5PT ratio error measurement 1~2000, error 0.1%6PT Secondary burden range0~80kohm (automatically change range in 800ohm/8kohm/80kohm)7PT Secondary burden error<0.2%RDG+0.02%FS

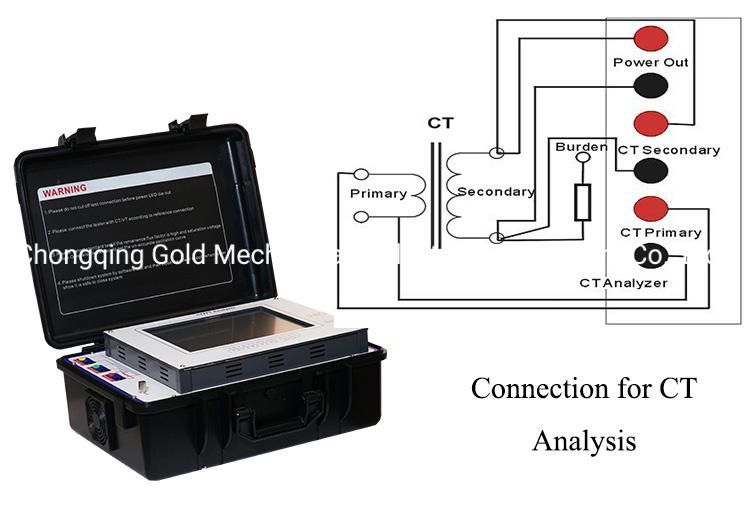

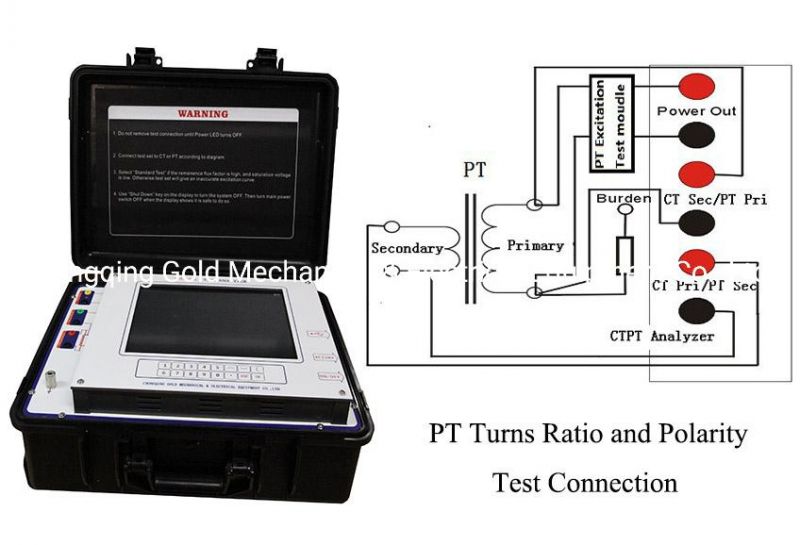

Testing Connection for GDVA-405 Automatic CT PT Analyzer

Current Transformer Automatic CT PT Analyzer Instrument Transformer Testing Equipment for Gis CT TestingCurrent Transformer Automatic CT PT Analyzer Instrument Transformer Testing Equipment for Gis CT Testing

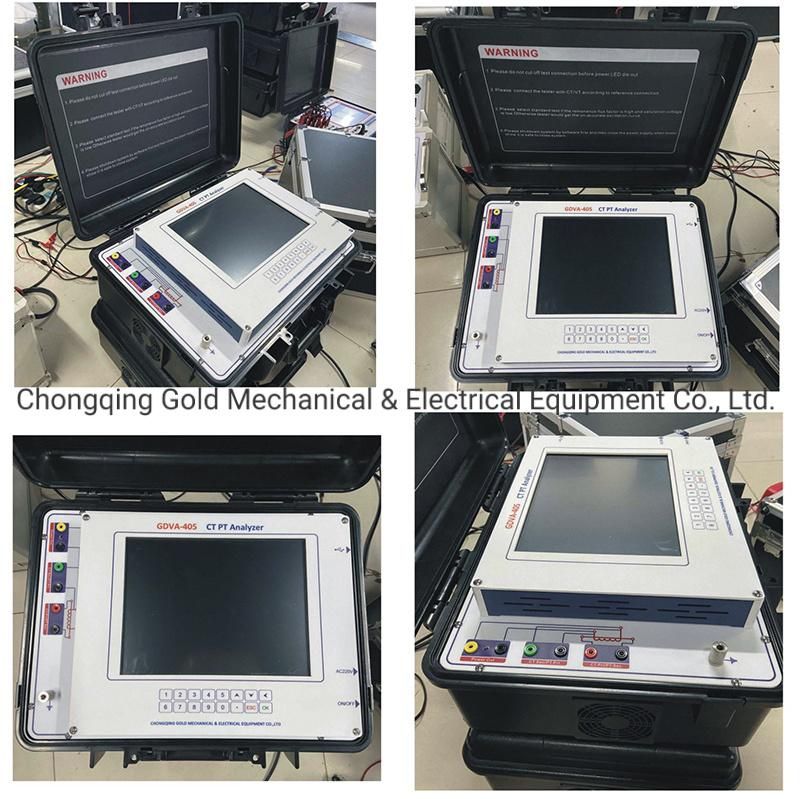

Product Pictures
