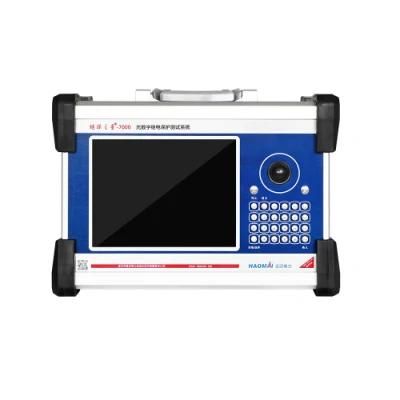

High Precision Microcomputer Secondary Injection Universal Protection Relay Test
Haomai Electric Power Automation Co., Ltd.- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Electric Power Tester
- Maxcapacity：Electric Power Tester
- Accuracy Grade：0.1
- Load Way：Electronic Load
Base Info
- Model NO.：Relaytestar-7000
- Loading Method：Dynamic Load
- Display：Digital
- Control：Computer Control
- Weight：0-100Kg
- Power Source：AC220V
- Oil Cylinder Position：No
- Transport Package：Standard Export Wooden Package
- Specification：405× 300× 185
- Trademark：RELAYTESTAR
- Origin：Hubei China
- HS Code：9030841000
- Production Capacity：5000platform,Year
Description
Overview
Product Description
Setting Range 6-Phase AC(L-N): 6x0…30A DC(L-N): 6x0…±10 A Power 6-Phase AC(L-N): 6x450VA At 30A DC(L-N): 6x120VA At 10A Accuracy AC: ±1mA(≤0.2A), ≤0.1% (0.2~30A) DC: ±5mA(0.2~0.5A), ≤0.2% (0.5~10A) Resolution 1mA Voltage Generator Setting Range 6-Phase AC(L-N): 6x0…150V DC(L-N): 6x0…±160V Power 6-Phase AC(L-N): 6x80VA At 150V DC(L-N): 6x80VA At 160V Accuracy AC: ±2mV(0.2~2V), ≤0.1% (2~150V) DC: ±10mV (0.5~5V), ≤0.2% (5~160V) Resolution 1mV Frequency Range: 0~1200Hz Accuracy:<1mHz(0~65Hz), <10mHz(65~450Hz), Resolution: 0.001Hz Phase Range: -360° ~+360° Accuracy: 0.1° Resolution: 0.01° Harmonic Superposition Order: 2~24 Times Distortion: ≤0.5% Company Profile
Current Generator
General Generators
<20mHz(450~1200Hz)
