Industrial Salt Spray Corrosion Testing Chamber
Dongguan Haida Equipment Co., Ltd.- Type:Salt Spray Testing Machine
- Accuracy Grade:0.5
- Display:Digital
- Control:Manual Control
- Weight:100-500Kg
- Power Source:AC220V
Base Info
- Model NO.:HD-E808
- Certificate:ISO9001: 2008,Ce
- Warranty Period:One Year
- Delivery Time:15 Days After Receive The Deposit
- pH:Nss Acss6.5~7.2 Cass 3.0~3.2
- Design Criteria:Cns, JIS, K5400, Z2371, ASTM
- Spray Quantity:1.0~2.0 Ml , 80cm2 , Hr
- Brine Temperature:35°c±1°c
- Test Chamber Temperature:Nss Acss 35±1°c Cass:50±1°c
- Temperature Precision:±1°c
- Power:1AC220V
- Transport Package:Strong Wooden Case
- Specification:ISO9001: 2008, CE
- Trademark:Haida
- Origin:Dongguan, China
- HS Code:9031809090
- Production Capacity:150 Sets,Month
Description
Basic Info.
Model NO. HD-E808 Certificate ISO9001: 2008,Ce Warranty Period One Year Delivery Time 15 Days After Receive The Deposit pH Nss Acss6.5~7.2 Cass 3.0~3.2 Design Criteria Cns, JIS, K5400, Z2371, ASTM Spray Quantity 1.0~2.0 Ml / 80cm2 / Hr Brine Temperature 35°c±1°c Test Chamber Temperature Nss Acss 35±1°c Cass:50±1°c Temperature Precision ±1°c Power 1AC220V Transport Package Strong Wooden Case Specification ISO9001: 2008, CE Trademark Haida Origin Dongguan, China HS Code 9031809090 Production Capacity 150 Sets/MonthProduct Description
Industrial Salt Spray Corrosion Testing ChamberSalt spray testing equipment adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on. After these anti-corrosive treatment, salt spray corrosion tester can test the corrosion resistance of their products.

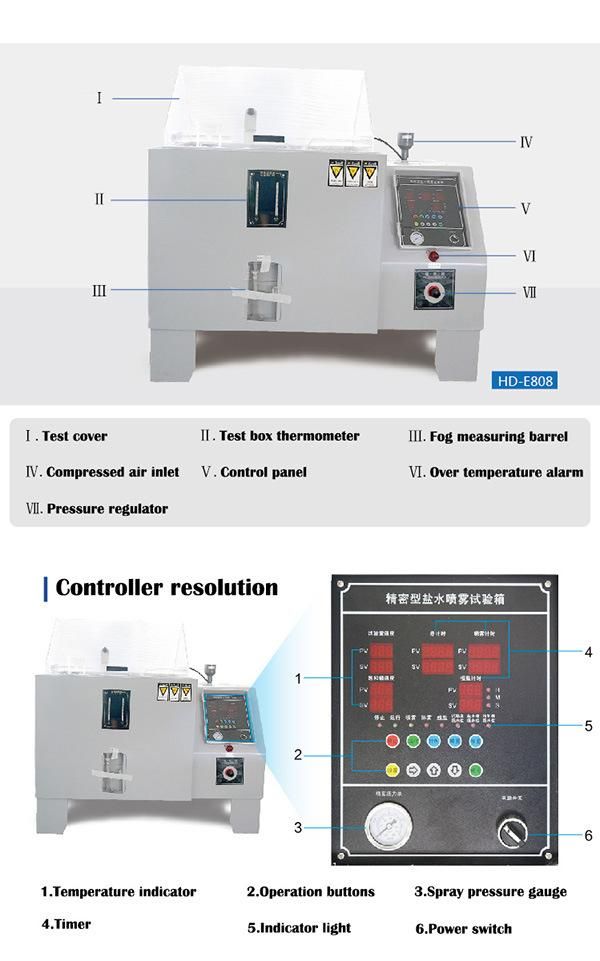

Model | HD-E808-60 Salt spray anti-corrosion tester |
Inner Box Size (L× W× H) | 60× 40× 45 cm |
Outside Box Size(L× W× H) | 107× 60× 118 cm |
Equipment Material | Both inside & outside shell of the salt spray corrosion tester adopt imported P. V. C rigid plastic board, and tank cover uses imported transparent P. V. C. rigid plastic board |
Temperature Range | 35 centigrade degrees to 55 centigrade degrees |
Temperature Fluctuations | ≤ ± 0.5 centigrade degrees |
Temperature Uniformity | ≤ ± 2 centigrade degrees |
Temperature Precision | ± 1 centigrade degrees |
Test Chamber Temperature | Salt Spray Method (NSS ACSS)35± 1 centigrade degrees Corrosion-resistant Testing Method (CASS) 50± 1 centigrade degrees |
Saturated air Barrel Temperature | Salt Spray Method (NSS ACSS)47± 1 centigrade degrees Corrosion-resistant Testing Method (CASS) 63± 1 centigrade degrees |
Brine Temperature | 35 centigrade degrees± 1 centigrade degrees |
Spray Quantity | 1.0~2.0 ml / 80cm2 / hr |
PH | Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method(CASS)3.0~3.2 |
Lab Volume | 108L |
Brine Tank Capacity | 15L |
Power | AC220V, 10A |
Multiple Safety Protection Devices | Current discharge protection, over pressure protection, over temperature protection, over load fuse protection |
Accessories | Testing Salt/ Measuring tank/ Equipment each 1 set |
Standard | CNS: 3627, 3385, 4159, 7669, 8886; JIS: D0201, H8502, H8610, K5400, Z2371; ISO: 3768, 3769, 3770; ASTM: B117, B268 |
The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
