• Model NO.：TFG1905A,TFG1910A,TFG1920A
• Waveform Length：4096 Points
• Vertical Resolution：10bits
• Certificate：Ce RoHS ISO9001
• Transport Package：Carton Package
• Specification：322*256*102 mm
• Trademark：SUIN
• Origin：China
• HS Code：8543209090
• Production Capacity：30, 000 Sets,Year

 TFG1905ATFG1910ATFG1920AFrequencyRangeSine1μHz ~ 5MHz1μHz ~ 10MHz1μHz ~ 20MHz Square, Pulse1μHz ~ 5MHz Others1μHz ~ 1MHzResolution 1μHz,6digitsAccuracy ±20ppmWaveformType 11 build-in waveform   (Sine, Square, Ramp, Pulse, etc.) + 5 user-defined arbitrary waveformsArbitraryLength4096 points Sampling Rate100 MSa/s Vertical Resolution10 bits Amplitude CharacteristicsRangeFrequency≤8MHz0 ~ 10Vpp(50Ω),    0 ~ 20Vpp(Open circuit) Frequency>8MHz0 ~ 9Vpp    (50Ω),  0 ~ 18Vpp(Open circuit)Resolution 2mVpp(Amplitude>2Vpp)  0.2mVpp(Amplitude≤2Vpp)Offset Characteristics (Ampl.   0Vpp)Range±5Vdc (50Ω), ±10Vdc (Open circuit)Resolution 2mVdcModulation Characteristics(CHA)FM,AM,PM,PWMCarrier Waveform16 waveforms, Sine,   Square, Ramp, etc. (PWM is only for Pulse)Modulating Waveform16 waveforms, Sine, Square, Ramp, etc.Modulating Frequency2mHz ~ 20kHzFSKCarrier Waveform16 waveforms, Sine, Square, Ramp, etc.Hop Frequency1μHz ~ 5MHz1μHz ~ 10MHz1μHz ~ 20MHzRate1mHz ~ 100kHzSweep Characteristics(CHA)Carrier   Waveform16 waveforms, Sine, Square, Ramp, etc.Type Linear or LogSweep Time 50ms ~ 500sBurst Characteristics(CHA)Burst Waveform 16 waveforms, Sine, Square, Ramp, etc.Burst Count 1 ~ 1000000Internal Period 1μs ~ 500sStart/Stop Phase 0° ~ 360°SYNC OutputWaveform   CharacteristicSquare, edge time ≤ 20nsOutput Level TTL compatibleCounterFrequency   Range 1Hz ~ 100MHzInput Amplitude 100mVrms ~ 7VrmsPeriod 50ms ~ 5sGeneral   CharacteristicsPower AC 100 ~ 240V, 45 ~ 65Hz, < 30VADisplay VFD displayDimension   & Weight322×256×102mm, Approx.1.5 kg

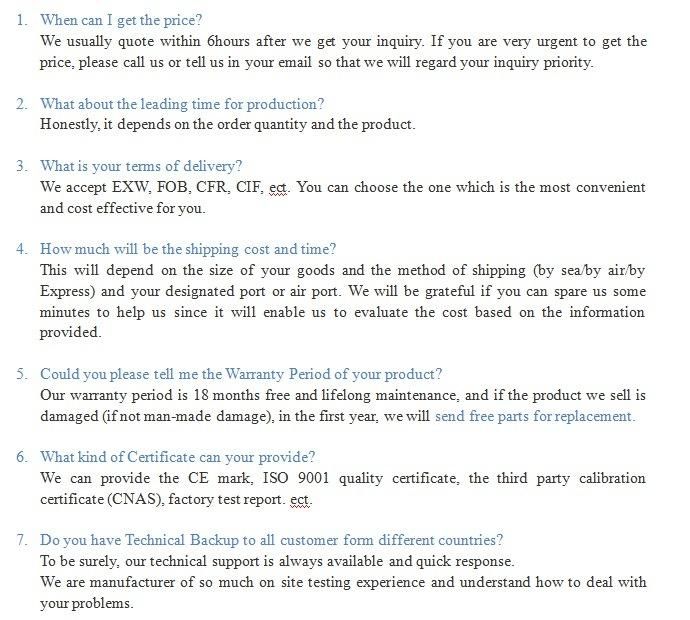

                                                                 F A Q
