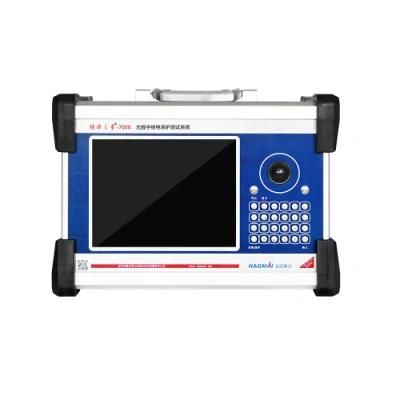

• Model NO.：Relaytestar-7000
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Transport Package：Standard Export Wooden Package
• Specification：405× 300× 185
• Trademark：RELAYTESTAR
• Origin：Hubei China
• HS Code：9030841000
• Production Capacity：5000platform,Year

Product Description

Current Generator

Setting Range

6-Phase AC(L-N): 6x0…30A

DC(L-N): 6x0…±10 A

Power

6-Phase AC(L-N): 6x450VA At 30A

DC(L-N): 6x120VA At 10A

Accuracy

AC: ±1mA(≤0.2A), ≤0.1% (0.2~30A)

DC: ±5mA(0.2~0.5A), ≤0.2% (0.5~10A)

Resolution

1mA

Voltage Generator

Setting Range

6-Phase AC(L-N): 6x0…150V

DC(L-N): 6x0…±160V

Power

6-Phase AC(L-N): 6x80VA At 150V

DC(L-N): 6x80VA At 160V

Accuracy

AC: ±2mV(0.2~2V), ≤0.1% (2~150V)

DC: ±10mV (0.5~5V), ≤0.2% (5~160V)

Resolution

1mV

General Generators

Frequency

Range: 0~1200Hz

Accuracy:<1mHz(0~65Hz), <10mHz(65~450Hz),
<20mHz(450~1200Hz)

Resolution: 0.001Hz

Phase

Range: -360° ~+360°

Accuracy: 0.1°

Resolution: 0.01°

Harmonic

Superposition Order: 2~24 Times

Distortion: ≤0.5%
