Sulfur Hexafluoride Qualitative Leak Detector

Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
  • Warranty：Warranty Certificate
  • Transport Package：Wooden

Base Info

  • Model NO.：XHJL307
  • Trademark：XZH TEST
  • Origin：China Xi′an
  • HS Code：854320100
  • Production Capacity：100 Pieces ,Year
  • Package size per unit product：23.00cm * 7.00cm * 7.00cm
  • Gross weight per unit product：10.000kg

Description

Basic Info.

Model NO. XHJL307 Trademark XZH TEST Origin China Xi′an HS Code 854320100 Production Capacity 100 Pieces /Year

Packaging & Delivery

Package size per unit product 23.00cm * 7.00cm * 7.00cm Gross weight per unit product 10.000kg

Product Description

Sulfur Hexafluoride Qualitative Leak Detector

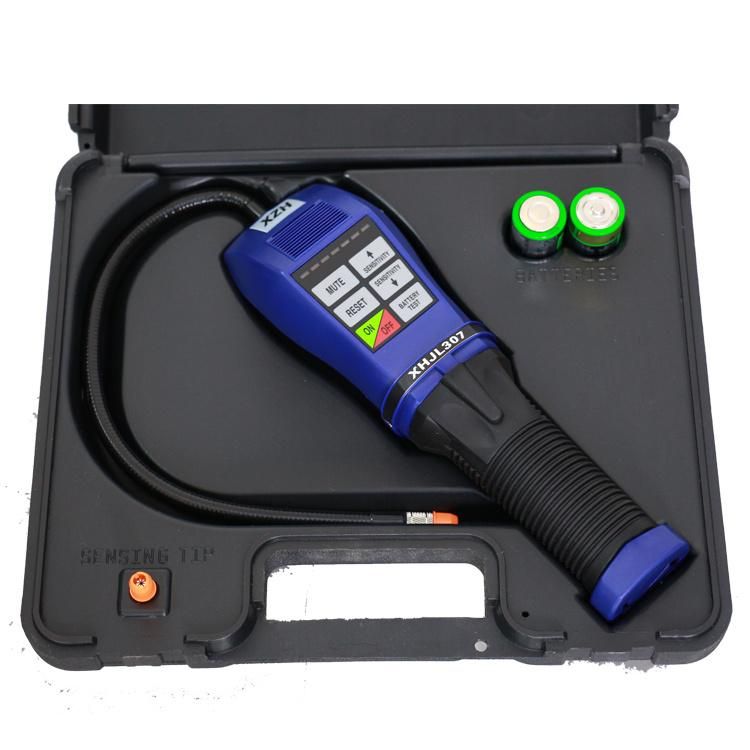

XHJL307  SF6 Leak detector

An advanced microprocessor is the heart of this unit. Digital signal processing method permits better management of the circuit and sensing tip signal than ever before. Additionally, its digital signal processing technology ensures real-time monitoring sensor tips and the battery voltage, to compensate signal pulse of even small changes timely, which  making the instrument become a stable and reliable testing tool in different environment.

 Sulfur Hexafluoride Qualitative Leak Detector

Main features

1. Microprocessor control, with advanced digital signal processing

2. Tri-color visual displayseven levels of sensitivity provide an increase of up to 64xtactile keypad controls

3. Real time sensitivity adjustment

4. Battery test function

5. Battery voltage indication

6. Certified to SAE J1627 for R134a,R12,R22

7. Detects all Halogenated Refrigerants

8. True mechanical pumping provides positive airflow through sensing tip

9. Mute feature included

10. Cordless and portable, operates on 2 "C"-cell batteries

11. Carrying case included

12. Flexible, stainless probe

13. Optional reference leak source

Main parameters

Power supply:3V DC, wo "C" cell Alkaline batteries

Maximum sensitivity:Per SAE J1627 Rating Criteria, certified for R12,R22,134a @ 0.5 oz/yr.(14gr/yr)

Ultimate sensitivity:less than 0.1 oz/yr for all halogen based refrigerants

Temperature:0-52ºC

Battery life:approximately 30h normal use

Duty cycle:continuous, no limitation

Response time:instantaneous

Reset time:one second

Warm-up time:approximately two seconds

Unit dimensions:22.9cm×6.5cm×6.5cm

Fixed probe length:35.5cm
