• Model NO.：ZLT-BS2
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Usage：Test Resistance to Insulating Tape
• Certification：ISO17025 Calibration Provided
• Warranty：One Year
• Material：Stainless Steel Cabinet
• MOQ：1 PC
• Delivery：in 25-30 Days
• Transport Package：in Plywood Carton
• Specification：IEC60454-2 clause 20, UL510 clause 6
• Trademark：ZLTJC
• Origin：Guangzhou, Guangdong, China
• HS Code：9031809090
• Production Capacity：Stock Available

Basic Info.

Model NO. ZLT-BS2 Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Usage Test Resistance to Insulating Tape Certification ISO17025 Calibration Provided Warranty One Year Material Stainless Steel Cabinet MOQ 1 PC Delivery in 25-30 Days Transport Package in Plywood Carton Specification IEC60454-2 clause 20, UL510 clause 6 Trademark ZLTJC Origin Guangzhou, Guangdong, China HS Code 9031809090 Production Capacity Stock Available

Product Description

Pressure Snesitive Adhesive Tapes Flame Test MachineProduct details:Model ZLT-BS2
This apparatus is  for testing the resistance to flame propagation for a insulating tape,according to IEC60454-2 clause 20,UL510 clause 6.
Standard Outfit:
1 protective device, comprising a three-sided metal enclosure, 305mm wide,355mm deep and 610mm high,and the top and front of the enclosure are to be open,
1 flame test, with a gas burner in accordance with 7.11 or ISO 10093,have an internal diameter of 9,5mm and shall extend 102mm above the air inlets, and a wedge to which the base of the burner can be secured at an angle of 20⁰ from vertical,in accordance with IEC 60454-2 figure 11;
1 means of securing the test specimen with longitudinal axis vertical to the centre of the enclosure, in accordance with IEC60454-2 figure 10,
1 scale to measure the flame height,
1 type K thermocouple Chromel-alumel, to indicate the temperature with digital display measuring range 816ºC or higher, built-in operable,
1 steel mandrel,3,5mm in diameter and 460mm long, and 1 mass of 2kg±20g is then attached to the free end of the tape to provide tension,

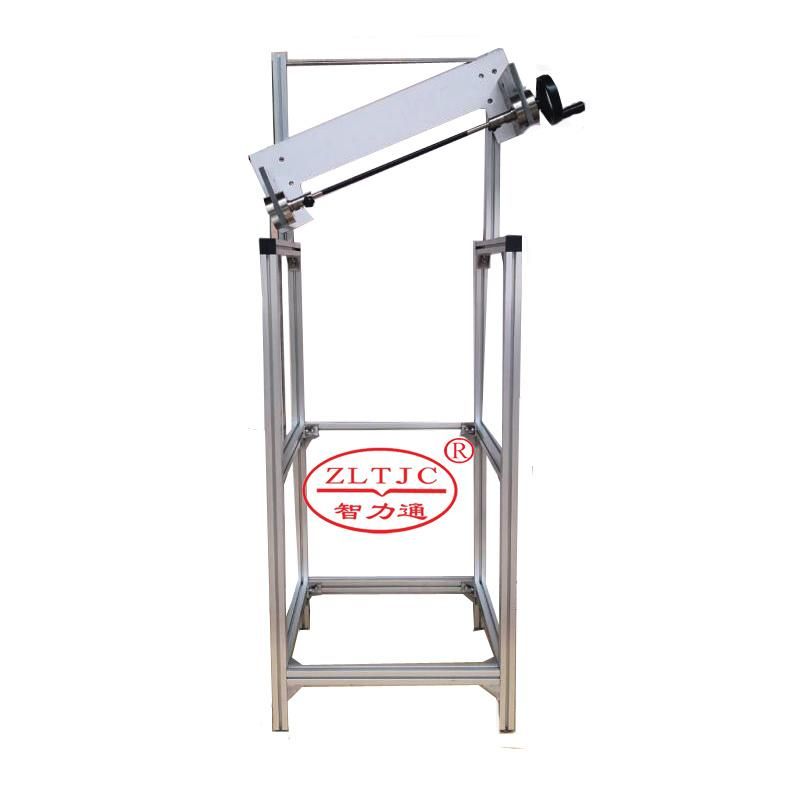

1 winding jig to support the mandrel at each end in such a manner that the mandrel can be rotated so that the tape can be wound thereon.tilting the major axis of the mandrel to the horizontal.
Power supply: 220V50Hz other voltages request.
