• Model NO.：XHSB505A
• Origin：China Xi′an
• HS Code：854320100
• Production Capacity：1000 Pieces ,Year

Basic Info.

Model NO. XHSB505A Origin China Xi′an HS Code 854320100 Production Capacity 1000 Pieces /Year

Product Description

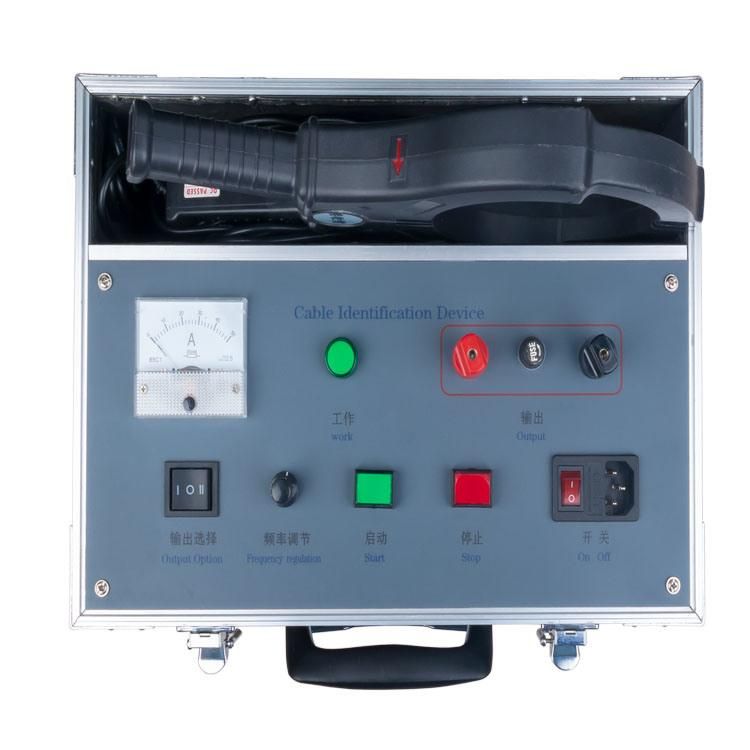

XHSB505/XHSB505D

Description:
XHSB505 based on high-voltage cable construction and installation and maintenance personnel urgently need to solve the problem of identification of multiple cable sites, with reference to foreign advanced technology, under the guidance of electromagnetic theory, using modern electronic technology and tooling process technology developed.
A new generation of XHSB505 cable identifiers was upgraded on the first generation of cable identifiers based on market feedback and customer needs. Frequency adjustment was added to adjust the speed of signal transmission to meet field requirements.
In the field of power cable installation, migration, maintenance, troubleshooting and other field operations often encountered a very difficult question: which cable is what we are looking for? Especially in many cable ducts of the same specifications, construction workers are even more helpless. The XHSB505 can quickly and accurately solve this problem.
Main features
Accurate and safe indentification
Large identification jaws for various cables
The operation is extremely simple
The instructions are clear and intuitive
The owner, accessories are portable
Receiver sensitivity adjustable.
Signal frequency adjustment
Technical data
Recognition method: Judging by the direction of hand wobble
Clamp: Φ125mm
Power: 1.5kVA (intermittent instantaneous)
Impulse current: 0-50A
Weight: 11.00kg
Dimensions: 700mm×300mm×220mm
Impulse frequency: 0.1Hz-5Hz ( adjustable)
