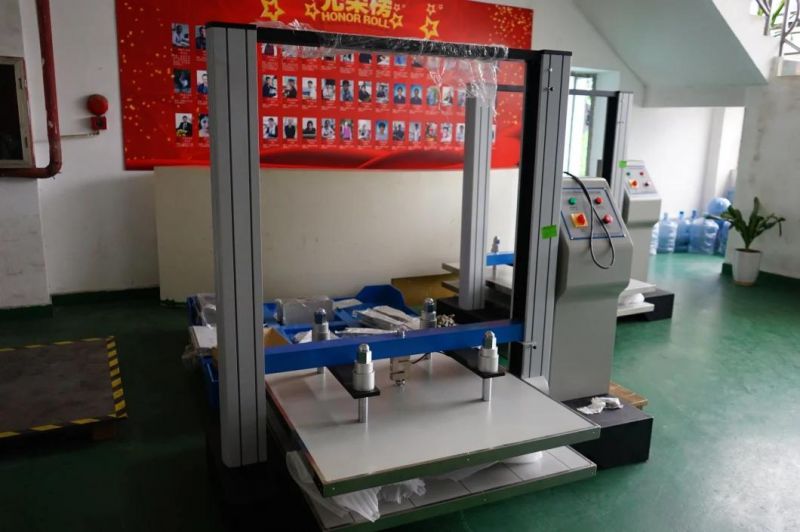

Automatic Computer Servo Control Compression Testing Machine

Dongguan Haida Equipment Co., Ltd.
  • Type：Compression Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital

Base Info

  • Model NO.：HD-A502S-1200
  • Control：Computer Control
  • Weight：500-1000Kg
  • Power Source：AC220V
  • Speed of Compression：10 ± 3 mm,Min
  • Test Space(L*W*H)：1200*1200*1200mm
  • Unit ( Switchable)：Kg, Lb, N
  • Maximum Capacity：2 Ton
  • Resolution：1,100, 000
  • Load Accuracy：≤0.5%
  • Operation Mode：PC
  • Dimension (L*W*H)：2000*1200*2030mm
  • Power：1phase, 220V, 50Hz
  • Load Cell：Celtron Sensor
  • Transport Package：Strong Wooden Case
  • Specification：Tappi-T804, JIS-20212, GB4857.3.4, ASTM-D642
  • Trademark：Haida
  • Origin：China
  • HS Code：9024109000
  • Production Capacity：50 Sets Per Month

Description

ModelHD-A502S-1200Unit (switchable)Kg, Lb, NCapacity (optional)2 TLoad Resolution1/100,000 Load Accuracy≤0.5%Test Space (L×W×H)1200×1200×1200mmSpeed of Compression10 ± 3 mm/minOperation ModePCReport ItemsSerial number, Peak value, Average value, Designated holding pressure value; all memorableStructureAC Frequency Conversion Motor ( Taiwan);
Ordinary screw rodDimension (L×W×H)2000×1200×2030mmPower1ø, 220v/ 50HzWeightApprox.730kgSafety DevicesOverload protection, overvoltage protection & limited position protection deviceStandardTAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642
Automatic Computer Servo Control Compression Testing Machine

The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.

Automatic Computer Servo Control Compression Testing Machine
