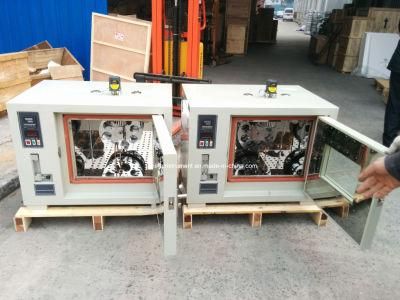

ASTM D2872 Asphalt Rfto Rolling Thin Film Oven for Bitumen Rolling Thin-Film Oven Test

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Type：Rolling Thin Film Oven Rtfo
  • Accuracy Grade：Asphalt Rolling Thin Film Oven
  • Load Way：Electronic Load
  • Display：Digital
  • Control：Manual Control
  • Weight：0-100Kg

Base Info

  • Model NO.：GD-0610
  • Power Source：AC220V
  • Oil Cylinder Position：Asphalt Rolling Thin Film Oven
  • Item Name：ASTM D2872 Asphalt Rtfot Rolling Thin Film Oven
  • Reference Standard：ASTM D2872
  • Function：Rolling Thin-Film Oven Test ASTM D2872
  • Application Fields：Physical, Chemical, Oil, Electrical Laboratory
  • Test Samples：Asphalt,Bitumen
  • Place of Use：Laboratory
  • Thin Film Oven Type：Bench Type, Desktop Type, Not Portable
  • Operation Method：Automatic Type
  • Warranty Period：1 Year
  • Gross Weight：28kg
  • Transport Package：Packed in Container
  • Specification：Refer to detailed description
  • Trademark：GOLD
  • Origin：Chongqing, China
  • HS Code：9031809090
  • Production Capacity：100 Sets, Month

Description

1Power supplyAC(220±10%)V, 50Hz2Heating power2.4kW3Working temperature163ºC4Temperature control precision±0.5ºC5Rotating speed of turn plate(15±0.2) r /min6Air flow rate(4000±200)mL /min7Timing unitAlert at 85 min8Ambient temperature(5~50)ºC9Relative humidity≤85%10Maximum power consumption2.6kW

Packing List:No.NameUnitQuantityRemark1RTFOT Asphalt/Bitumen Rolling Thin-Film OvenSet1 2sample bottlePiece8 3mercurial thermometer 150ºC~170ºC,scale mark 0.5ºCPiece1 4fuse wire 20A(Φ6×30)Piece2reserve5socket(250V 16A three-core)Piece1

Other models for choice:

 GD-0609 Bitumen RTFOT Rolling Thin-Film Oven Test ASTM D2872
 GD-0610 Bitumen RTFOT Rolling Thin-Film Oven Test ASTM D2872

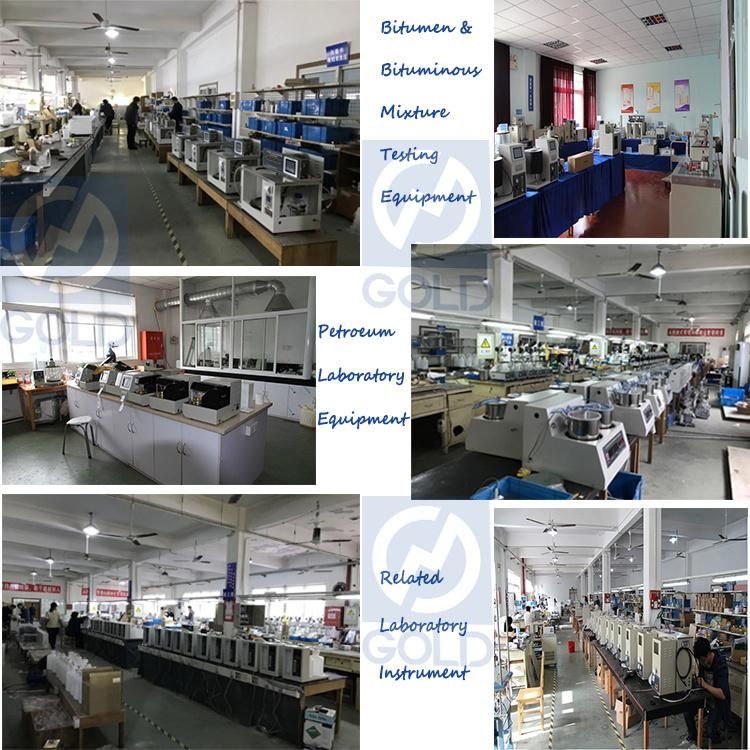

Factory Show:

ASTM D2872 Asphalt Rfto Rolling Thin Film Oven for Bitumen Rolling Thin-Film Oven Test
