- Model NO.：XHDD503D
- Cable Type：Shielded
- Power：Electricity

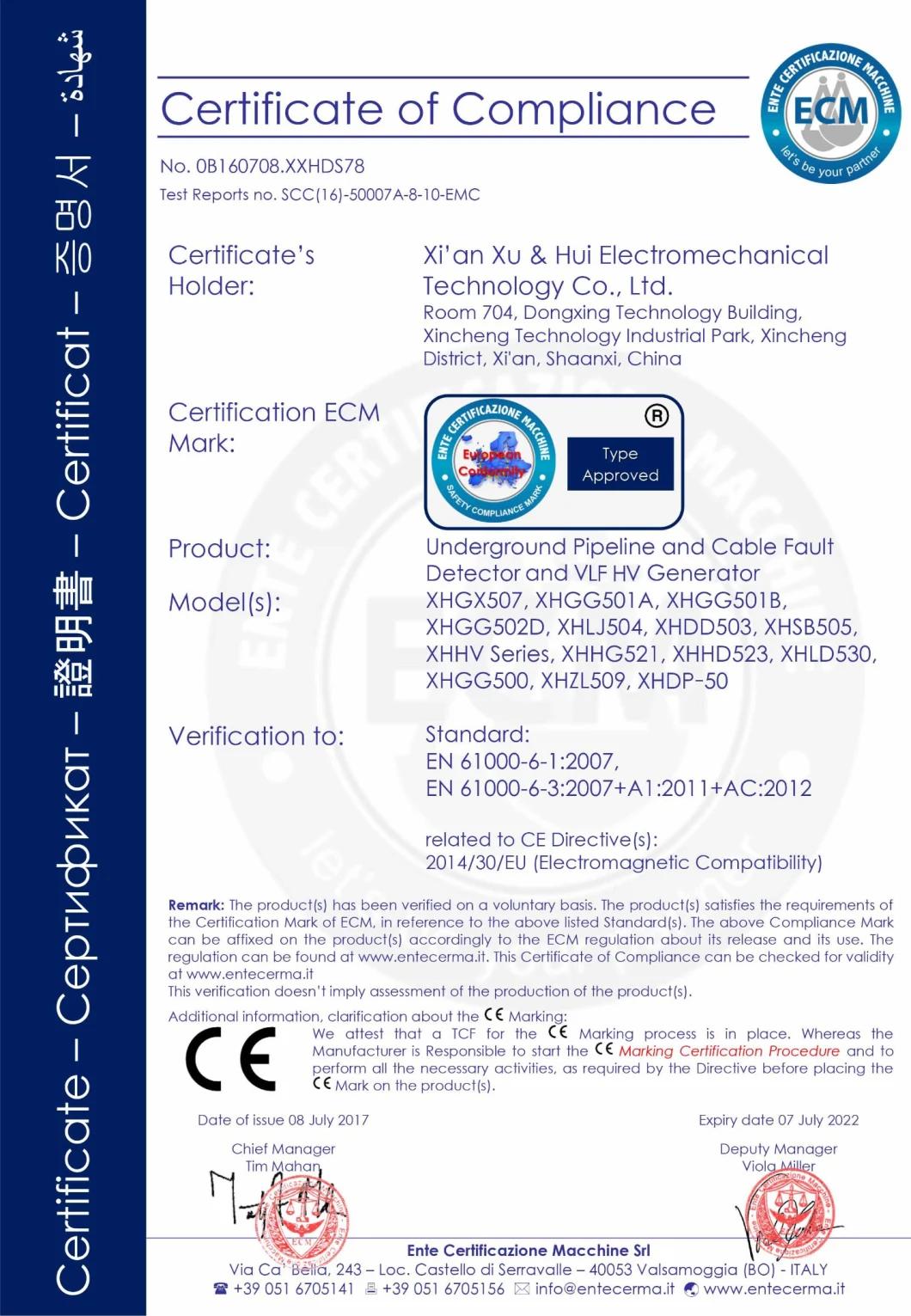

- Certification：CE
- Customized：Customized
- Color：Orange
- Transport Package：Wooden Box with Foam Inside
- Specification：350mm*280mm*170mm
- Trademark：XZH TEST
- Origin：China Xi′an
- HS Code：8543201000
- Production Capacity：2000 Pieces ,Year
Basic Info.
Model NO.
XHDD503D
Cable Type
Shielded
Power
Electricity
Certification
CE
Customized
Customized
Color
Orange
Transport Package
Wooden Box with Foam Inside
Specification
350mm*280mm*170mm
Trademark
XZH TEST
Origin
China Xi′an
HS Code
8543201000
Production Capacity
2000 Pieces /Year
Product Description

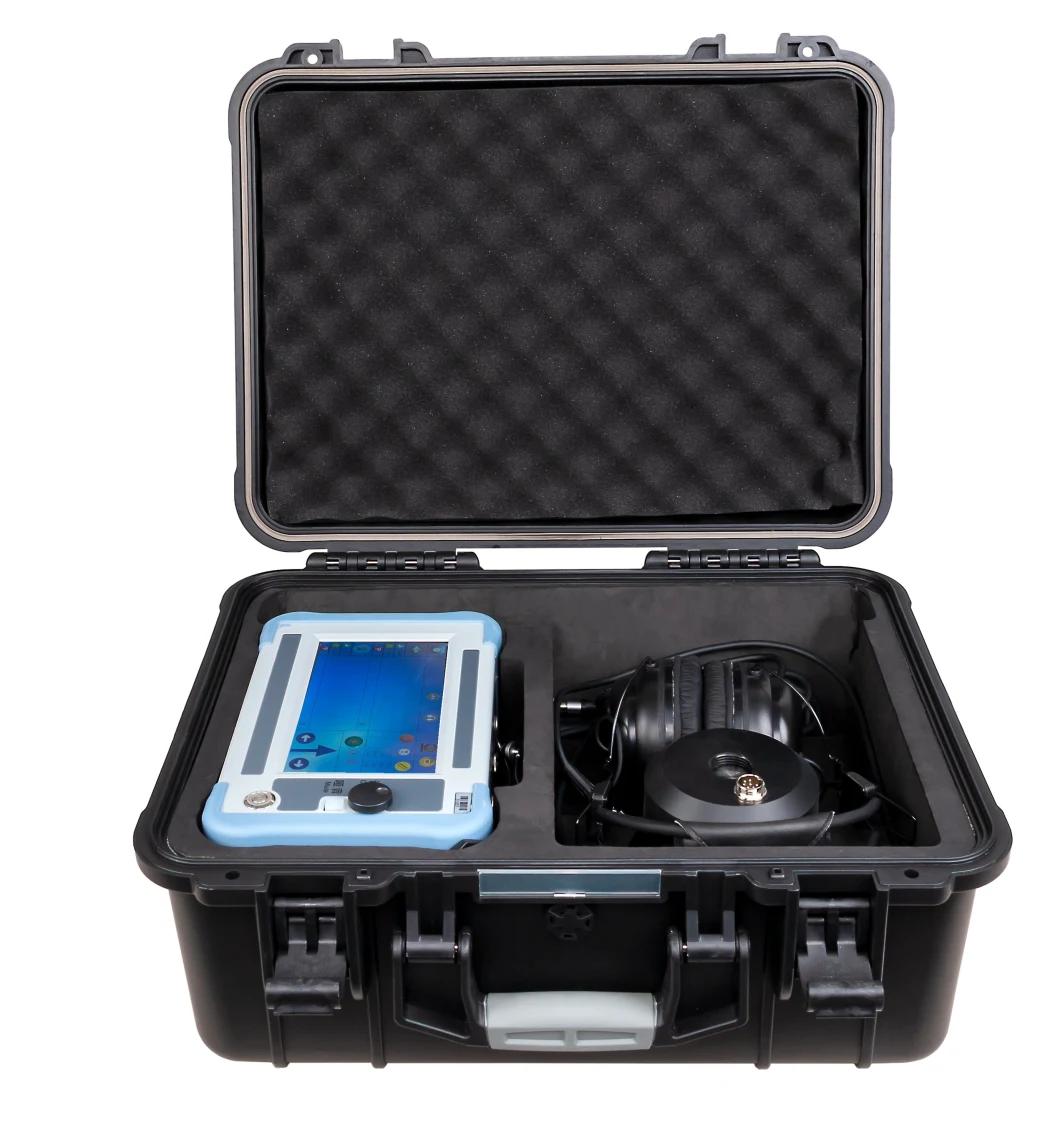

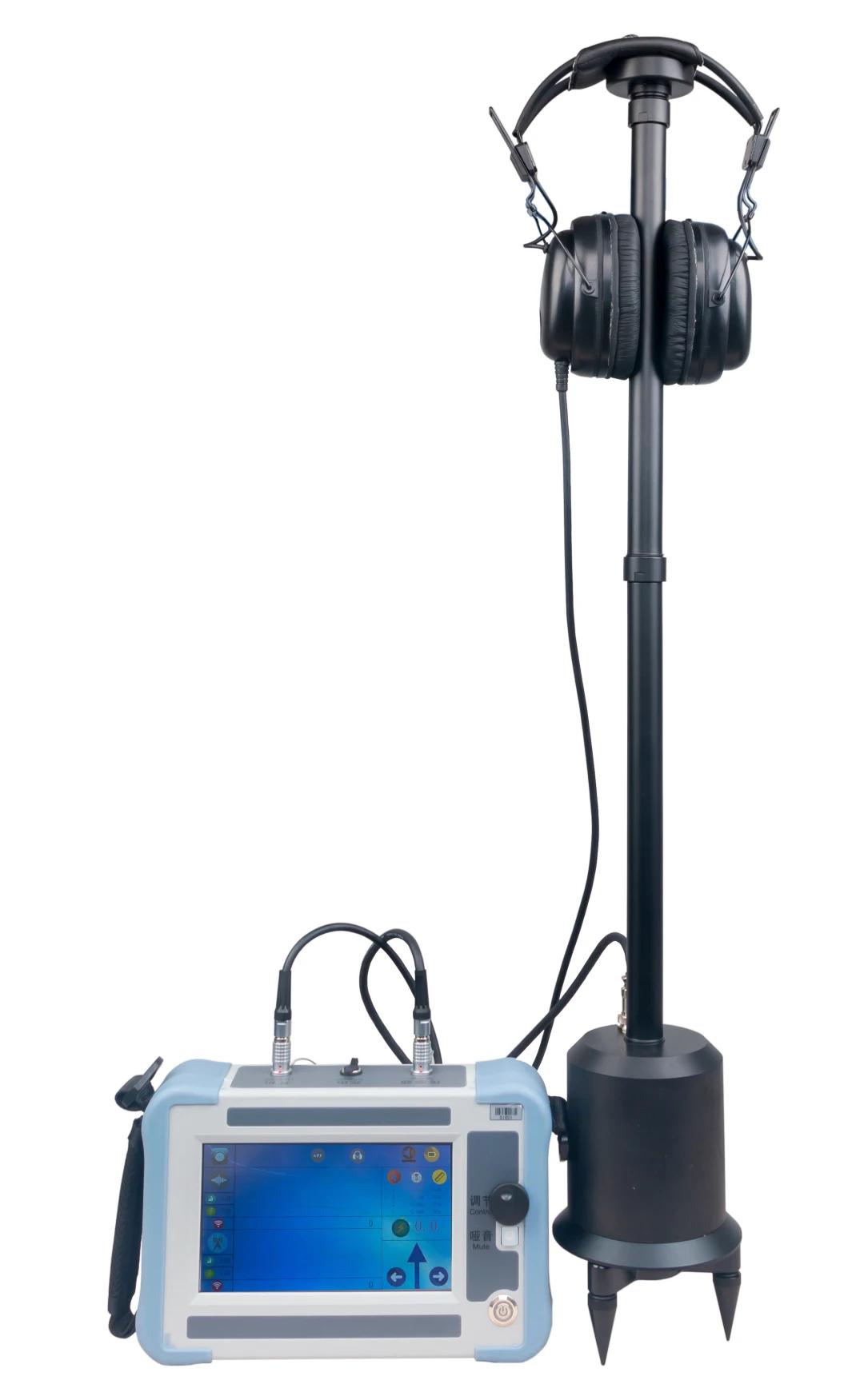

Multifunction Cable fault fixed point tester
PurposeAcousto-magnetic synchronous pointing instrument, used with high-voltage signal generator, is aportable and intelligent power cable fault pointing instrument. It adopts acoustic and magneticsynchronous locating method to accurately determine the exact location of the point cable fault.Features(1) Adopt acousto-magnetic synchronous fixed-point method.(2) Background noise reduction technology can effectively filter out environmental interferencenoise and highlight the discharge sound at the fault location.(3) Intelligent fixed-point mode, which directly gives the acousto-magnetic delay value throughthe intelligent algorithm, reducing the requirements for the tester.(4) The sound and magnetic field channel gain triggers manual adjustment, which is moreconvenient to fix the point.(5) High-performance anti-noise monitoring headphones. Adjustable parameters, selectappropriate filter parameters, and suppress environmental noise.(6) Highlight LCD to ensure visibility in sunlight.Cable fault locator(7) Built-in large-capacity lithium-ion battery power supply, equipped with fast charger.(8) Small and portable, light weight.(9) Compass path indication.Technical indicators(1) Acousto-magnetic synchronous fixed-point function:Sound channel:a) Maximum signal gain: >=80dB.b) Fixed-point accuracy: 0.1m.Magnetic field channel:a) Maximum signal gain: >80db(2) Power supply:a) Battery: Built-in lithium-ion battery pack, nominal voltage 7.4V, capacity 3400mAH.b) Use time, continuous use time> 7 hours;c) Charger: input AC220V±10%, 50Hz; nominal output 8.4V, 1Ad) Charging time: <6 hours.(3) Display mode: transflective 320×240 monochromatic liquid crystal.(4) Volume: host 200mm×195mm×120mm.(5) Quality: host 2.0kg; sensor 2.5kg(6) Operating conditions: temperature: -10ºC-40ºC, humidity 5-90%RH, altitude <4500m.
