• Model NO.：DH-DIN
• Testing Before Delivery：Yes
• After-sale Customer Service：Yes
• Transport Package：Standard Exporting Wooden Package
• Trademark：DahoMeter
• Origin：Dongguan, China
• HS Code：9027809900
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. DH-DIN Testing Before Delivery Yes After-sale Customer Service Yes Transport Package Standard Exporting Wooden Package Trademark DahoMeter Origin Dongguan, China HS Code 9027809900 Production Capacity 300 Sets/Month

Product Description

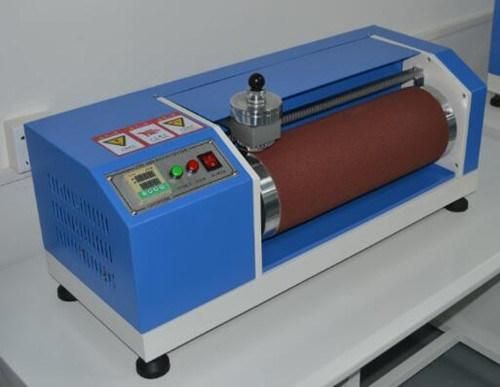

DH-DIN Professional Supplier Direct Sales Standard DIN Abrasion Resistance Testing Machine



Application

Suitable to determine the wear resistance of elastic material, rubber, tires,conveyor belts,shoe soles, soft synthetic leather and other materials.



Principle

Under a predetermined contact pressure and a given area ,the specimen with sandpaper angled to measure abrasion resistance of the specimen subjected to rubbing on a certain level of sandpaper, sandpaper affixed to the surface of the drum, samples pressed on a drum with sandpaper, and the specimen along the roller to

the lateral movement, abrasion resistance is produced at one end of the cylindrical specimen, tests the value of the mass loss of the specimen, by the density of the specimen to calculate the amount of volume abrasion.



Specifications

Roller diameter:φ150mm

Roller length:460mm

Rotate speed:40rpm

Abrasion stroke:40mm(20mm)

Abrasion speed:0.32m/sec

Dip angle:3°

Specimen diameter:φ16 mm

Thickness:6~15 mm

Testing load:5N,10N

Clamp horizontal displacement:4.2mm/roll each lap

Standard accessories:one set of sampler,two pieces of abrasive

paper(VSM60#,41*47.6CM),three pieces of standard gel(φ16*8mm),one piece of power cord.

Packaging & Shipping






Company Information

We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.


Certification
