• Model NO.：PRQ-0.5,1.6D
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Length：1100 mm
• Width：600 mm
• Height：600 mm
• Gross Weight：100 Kg
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO. CE. SGS
• Trademark：Jp
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. PRQ-0.5/1.6D Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Length 1100 mm Width 600 mm Height 600 mm Gross Weight 100 Kg Transport Package Packed in Fumigated Wood Box Specification ISO. CE. SGS Trademark Jp Origin Shanghai China HS Code 90311000 Production Capacity 1000 Sets/Month

Product Description

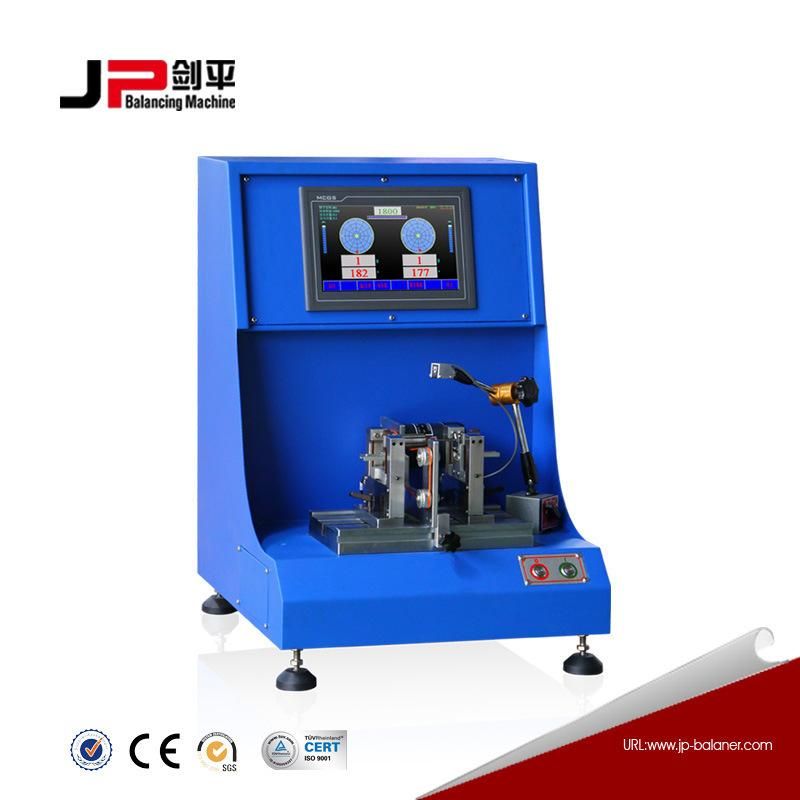

Touch Screen Soft-Bearing Balancer (PRQ-0.5/1.6D)

Production Description:

1) Single-plane or two-plane dynamic balance measurement

2) Man-machine friendly interface,touch screen operation easier and beauty

3) V-shaped ceramic support rods,a very high precision and service life

4) Secondary technical guidance,balance more efficient

5)  Light and compact design,to less space



Range of Application:

PRQ series soft bearing balancing machine is designed specially for micro-rotor,power tools and etc small shafts rotor, do large quantities balance process.Use DC speed regulation driven device. To achieve stepless speed regulation.With high sensitivity measurement supporting bearings,it  can achieve higher accuracy.Touch screen makes machine-user interaction more friendly and operation more convenient.Highly praised by the majority of users

Special Features:

1. Measuring method: 2 plane dynamic balancing measurement

2. Display mode: Touch screen

3. Type of Drive: Belt Drive

4. Soft bearing mode: Ceramic Support Rods

5. Minimum display Accuracy: 0.001g

6. 100 kinds rotor data storage

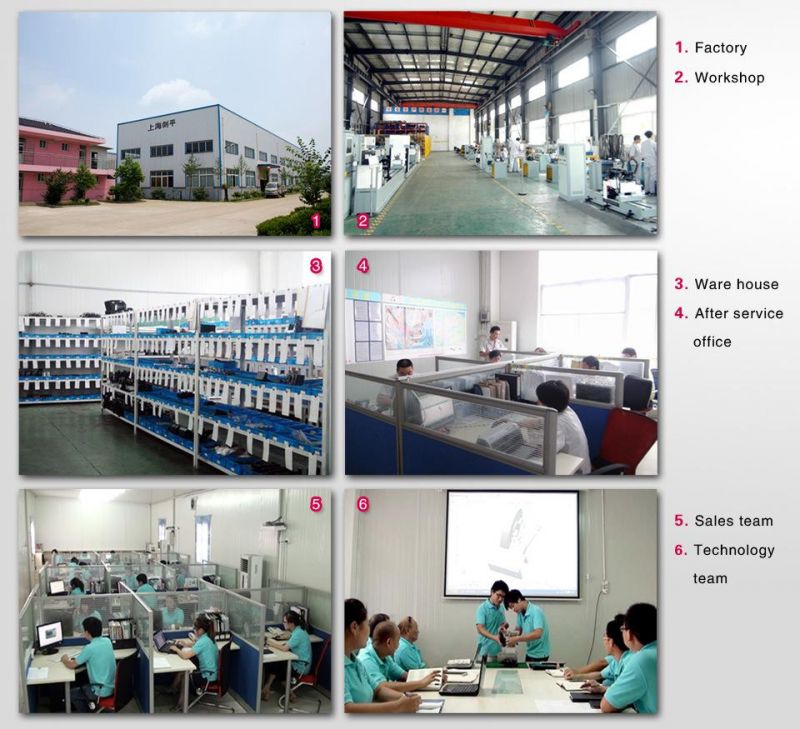

Factory Outlook:




Certificates:

Production Parameters:

Technical data at a glance	PRQ-0.5/1.6D
Max Mass of Workpiece(kg)	0.5/1.6
Max Diameter of Workpiece (mm)	Ø150
Distance Between Two Support Bearings (mm)	20-220
Journal Diameter Scope of Workpiece (mm)	2-16
Maximum Diameter of Driving Belt (mm)	Ø60
Balancing Speed (r/min)	~1470 stepless speed regulation
Motor Power (kw)	0.05 DC
Min Achievable Residual Unbalance Amount (emar)	≤0.1g.mm/Kg
Power Supply	AC220V,Single-phase,50HZ
