• Model NO.：XHYZ1669
• Certification：CE
• Customized：Customized
• Trademark：XZH TEST
• Origin：China Xi′an
• HS Code：854320100
• Production Capacity：100 Pieces ,Year

Basic Info.

Model NO. XHYZ1669 Certification CE Customized Customized Trademark XZH TEST Origin China Xi′an HS Code 854320100 Production Capacity 100 Pieces /Year

Product Description

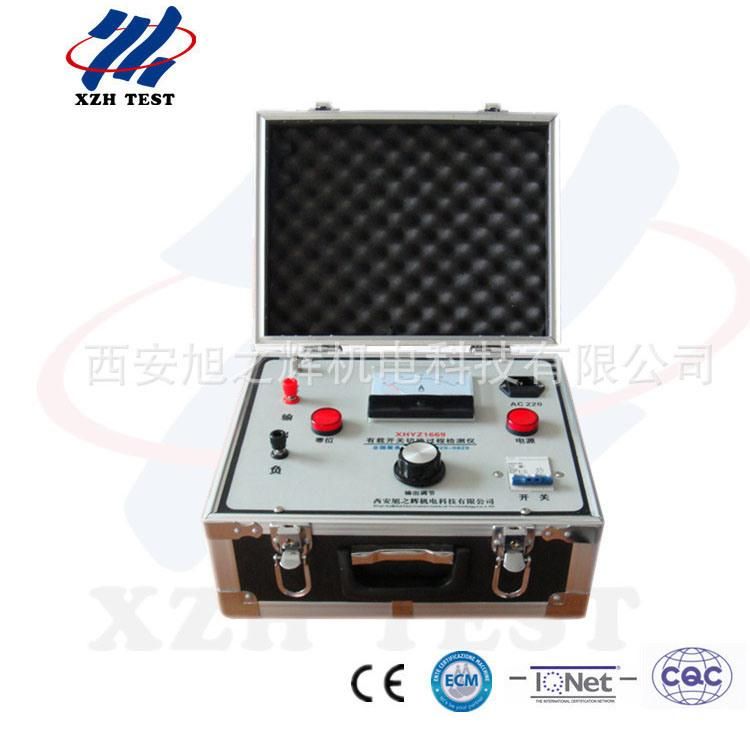

XHYZ1669 On-load switch switching process tester



Product description

XHYZ1669 On-load switch switching process tester is professional to detect whether the load switch is normal during switching, whether there is contact failure. The instrument uses an AC 220V power supply to output a continuously adjustable DC current of 0 to 20A. The instrument has multiple protections, no need worry short circuit and open circuit, which is convenient and reliable to use.



Main features

1. With the current pointer meter display, intuitive and clear, the charging and discharging process is clear to see;

2. With zero start protection, which is safe and reliable;

3. With zero indicator light display, when the potentiometer does not return to zero, it can not be output to avoid dangerous operation;

4. With short circuit protection, no need worry direct short circuit;

5. With open circuit protection, no need worry open circuit;

6. Small size, light weight and easy to carry.



Main Technical Parameters

1. Working voltage: AC220V±10%; 50Hz

2. Working environment:  Temperature: -40 °C ~ +40 °C

                             Humidity: <80% RH

3. Output current: DC 0 ~ 20A continuously adjustable

4. Output voltage: DC 0 ~ 30V continuously adjustable

5. Output power: 400W (rated power)

6. Display mode: 1.5 level current pointer meter

7. Size: 390 * 290 *180 mm
