• Model NO.：DR026SR
• Tension Speed：1-500mm,Min
• Torque Range：0-1nm
• Torque Solution：0.002n
• Torque Speed：0.1-60rpm
• Trademark：DARONG
• Origin：China
• HS Code：9024800000
• Production Capacity：100sets,Month

Basic Info.

Model NO. DR026SR Tension Speed 1-500mm/Min Torque Range 0-1nm Torque Solution 0.002n Torque Speed 0.1-60rpm Trademark DARONG Origin China HS Code 9024800000 Production Capacity 100sets/Month

Product Description

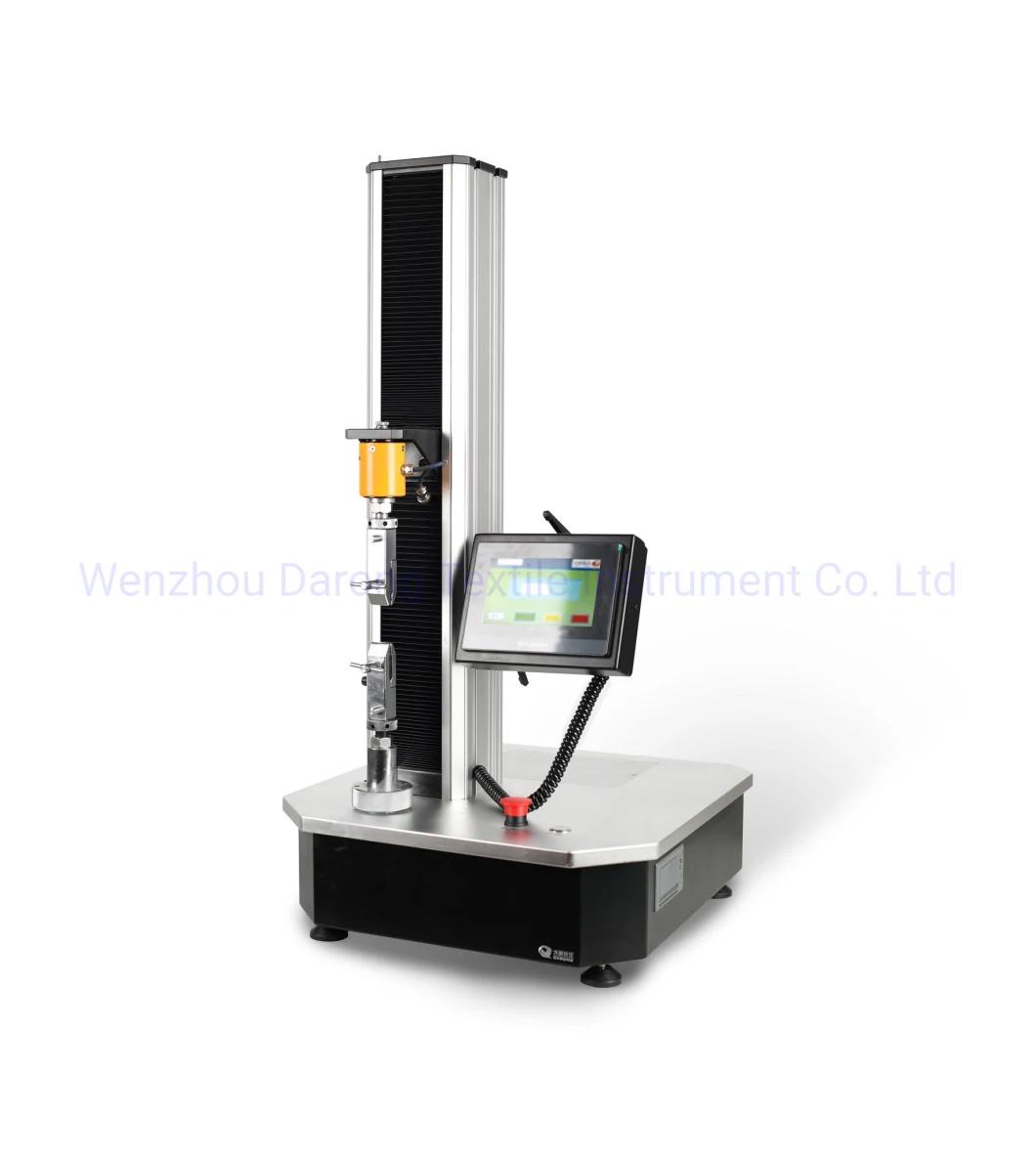

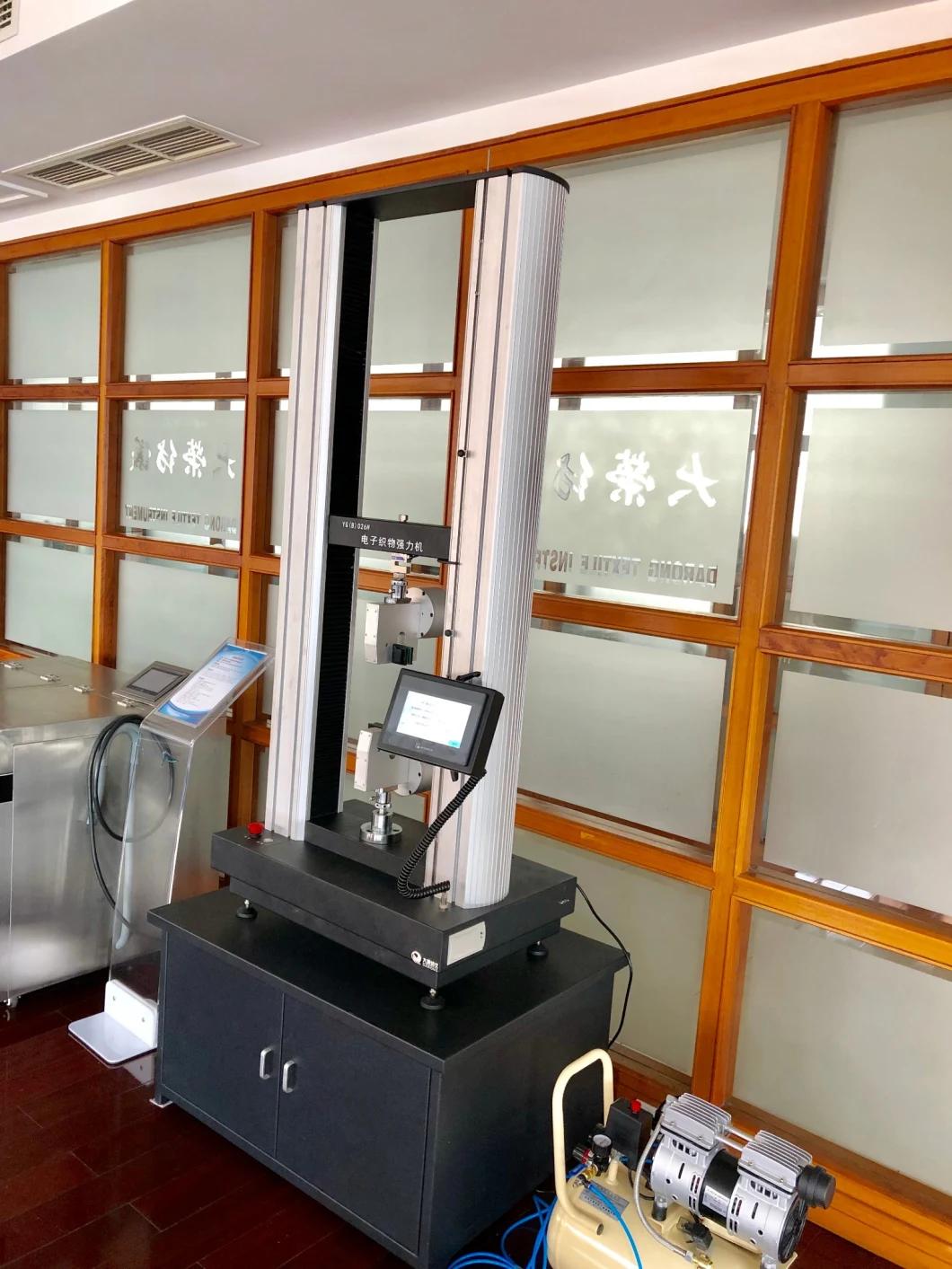

DR 026SR Children products compressive strength tester
[Scope of application] :
used for children's clothing standards, European toy safety standards, American toy safety standards, national toy safety technical standards and other standards stipulated in the tension, pressure (constant pressure, constant time) and torsion (constant pressure, constant time) test.

[Relevant standards] :
GB31701-2015 Technical Specification for Safety of Textile Products for Infants and Children
GB6675-2003 National Technical Specification for Toys
GB/T32599 main Drafting Unit of National Standards
EN71-1, BS7909, ASTM F963, 16CFR1500.51, GB/T22704, etc.
[Instrument characteristics] :
1, instrument pull, pressure, torsion integration, microcomputer control, electronic sensor, high precision ball screw, AC servo motor drive, automatic data processing and storage, can test process analysis, higher precision, automatic test completion.
2, small and exquisite, multiple sets of fixtures free combination
3. The product is a technical cooperation product with Hangzhou Entry-Exit Inspection and Quarantine Bureau. Combined with the requirements of professional testers, the test is more humanized, scientific and technological, the data is more accurate, the operation is more convenient, and the popularization is stronger, which is conducive to the further improvement of the safety and quality control level of the industry.
[ Technical parameters ]:
1, tension, pressure (constant load, constant speed, constant elongation)
Range: (0.1 ~ 500)N Scale: 0.01N
Speed :(1 ~ 500)mm/min;  Digital setting
Working range: greater than 300mm
2, torque (fixed force, fixed load time holding, fixed Angle)
Range: (0 ~ 1)N.m Scale: 0.002N.m
Speed :(0.1 ~ 60) RPM;  Digital setting
Stroke: + 300 °
3, power supply: AC220V±10% 50Hz 800W
4, overall size :(430×540×1040)mm (host L×W×H)
5, weight: 60kg
