• Model NO.：PN-CT300F
• Transport Package：Wooden Package
• Specification：SGS, ISO
• Trademark：PNSHAR
• Origin：Hangzhou, Zhejiang
• HS Code：90248000
• Production Capacity：500sets,Year

Basic Info.

Model NO. PN-CT300F Transport Package Wooden Package Specification SGS, ISO Trademark PNSHAR Origin Hangzhou, Zhejiang HS Code 90248000 Production Capacity 500sets/Year

Product Description

1. Description:

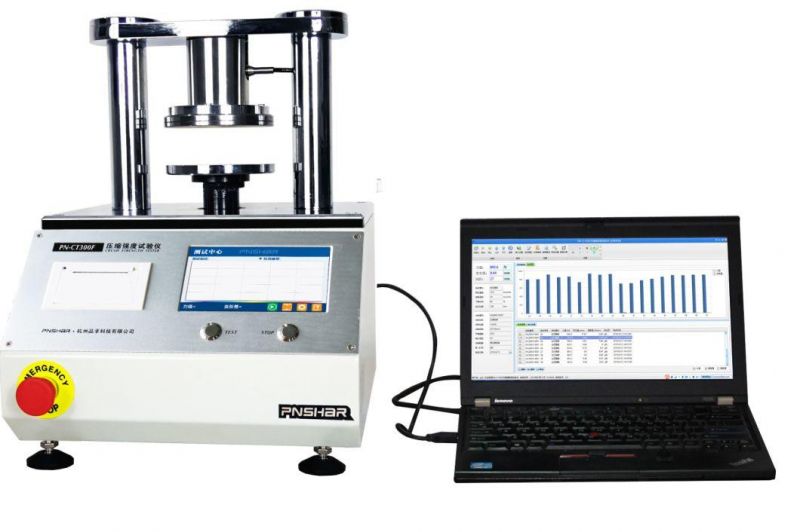

Ring Crust and Edge Compressive Testing Machine is a new type of compression testing instrument developed by our company according to the specification of national standard. With mechanical and electrical integration configuration, the instrument is well-designed using modern mechanical design theory and human engineering design criteria and micro-process. The instrument is upper pressure plate fixed type, which has high precision.

It applies to the test of Ring Crush Test (RCT), Edge Crush Test (ECT), Flat Crush Test (FCT), Pin Adhesion Test (PAT), Corrugating Medium Test (CMT).

2. Applications:
Paper, Paperboard, Corrugated cardboard, Corrugated Package.

3. Standards:
ISO 3035. ISO 3037. ISO 7263.

4. Features:
1) High speed return after finishing test
2) Imported step motor with servo control adopted
3) The test result can be measured, statistical and printed automatically and the data can be saved.
4) Thermal printer, high speed and no noise.
5) Use the modern design idea of mechanical and electrical integration, which has compact configuration, pleasing appearance and convenient maintenance.


ITEM	SPECIFICATION
Power:	AC100~240V, 2A,50Hz/ 60Hz.
Accuracy:	±1%
Indication varation:	<1%
Resolution:	0.1N
Measuring range:	(5~5000)N
Parallelism:	≤ 0.034mm
Stroke:	(2~70)mm
Test speed:	(12.5 ± 2.5) mm/min(1~30mm/min can be set)
Return speed:	(5~30) mm/min
Display:	7" touch screen display and English menu
Printer:	Thermal printing, high speed and low noise
Data output:	RS232(Standard) / USB(Optional)
Work environment:	Temp.(20±10 )°C relative humidity < 85%
Dimension:	(375×345×505 ) mm(L×W×H)
Net Weight:	About 38.6 kg
