• Model NO.：YG(B)342T
• High Voltage Charging Module：Maximum Range 30kv
• Electrostatic Attenuation Time Module：(0 ~ 99.99) Hours
• Sample Fixture Material：Copper
• Sample Fixture Inside The Exposed Area S：130mmx130mm
• Metal Shielding Cover：> 5mm
• Operating Table Size：424mm*510mm*302mm
• The Size of The Test Box：353mm*200mm*360mm
• Weight：40kg
• Transport Package：Carton
• Trademark：Darong
• Origin：China
• HS Code：9024800000
• Production Capacity：2000PCS

Basic Info.

Model NO. YG(B)342T High Voltage Charging Module Maximum Range 30kv Electrostatic Attenuation Time Module (0 ~ 99.99) Hours Sample Fixture Material Copper Sample Fixture Inside The Exposed Area S 130mmx130mm Metal Shielding Cover > 5mm Operating Table Size 424mm*510mm*302mm The Size of The Test Box 353mm*200mm*360mm Weight 40kg Transport Package Carton Trademark Darong Origin China HS Code 9024800000 Production Capacity 2000PCS

Product Description

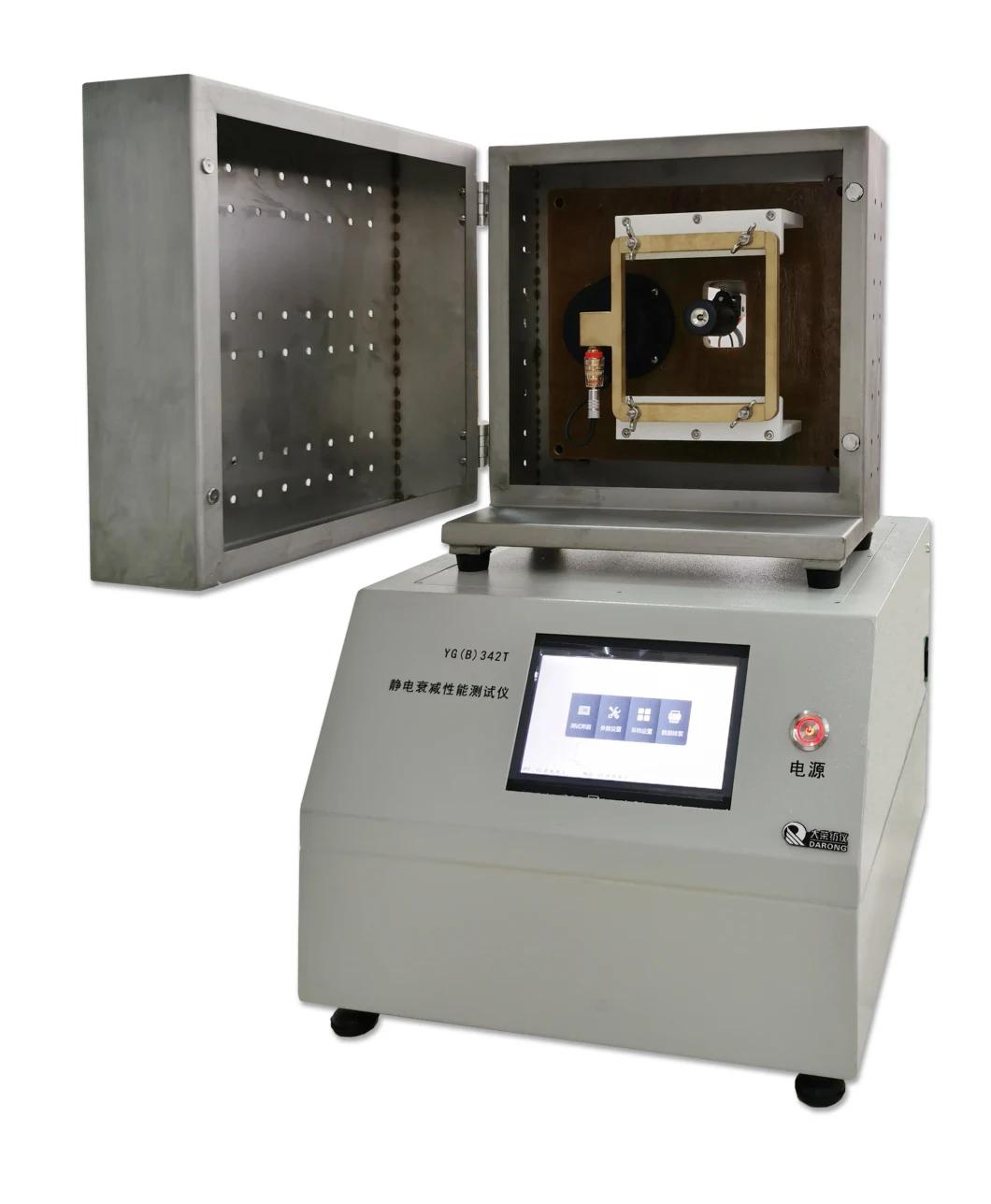

 YG(B)342T Static attenuating tester










[Scope of application] :
Test medical protective clothing material and non-woven cloth in ±5000V voltage, when the material energy grounding
The ability to eliminate the charge induced to the surface of the material, i.e. to measure the static attenuation from the peak voltage to 10%
Electrical decay time.
[Relevant standards] :
GB 19082-2009 Technical Requirements for medical disposable protective clothing
GB/T33728-2017 Evaluation of electrostatic properties of textiles -- Electrostatic attenuation method
GB2605-1996 specification for heat-sealable flexible antistatic barrier materials
Test method for electrostatic decay time of nonmanufactured cloth
IST40.2 (01)
Standard Test Method for Electrostatic Decay of Nonwoven Fabrics
Note: The details of different standards are slightly different, the following parameters of the instrument shall prevail
[Technical features] :
1. Man-machine dialogue operation interface, full touch screen operation;
2. Voltage attenuation percentage can be set, load voltage automatic adjustment, stable and reliable;
3. High precision electrostatic testing sensor, no current distortion;
4. Ultra-high positive and negative voltage stable output power supply, safe and convenient;
5. Control and test module design, test module is composed of stainless steel and non-metallic materials, can be placed separately in different test environment, safe and accurate experiment;
6. The instrument modular circuit design, can expand the remote control function.
[Technical parameters]:
1. Electrostatic voltage measurement range (0 ~ ±10)kV, accuracy is 5%, control voltage can be set
2. High voltage charging module, maximum range 30kV
3. Attenuation voltage test module, accuracy 5%, attenuation voltage percentage can be set
4. Electrostatic attenuation time module, (0 ~ 99.99) hours, error ±0.01 seconds
5. Sample fixture material: copper
6. Sample fixture inside the exposed area size: 130mm×130mm(can be customized)
7. Metal shielding cover and fixture and sample spacing: > 5mm
8. Electrostatic field meter probe and sample test surface distance :(25±1) mm
9. Working power supply: AC220V±10% 50Hz
10. Operating table size: 424mm×510mm×302mm(L×W×H)
11. The size of the test box: 353mm×200mm×360mm(L×W×H)
12. Weight: about 40kg

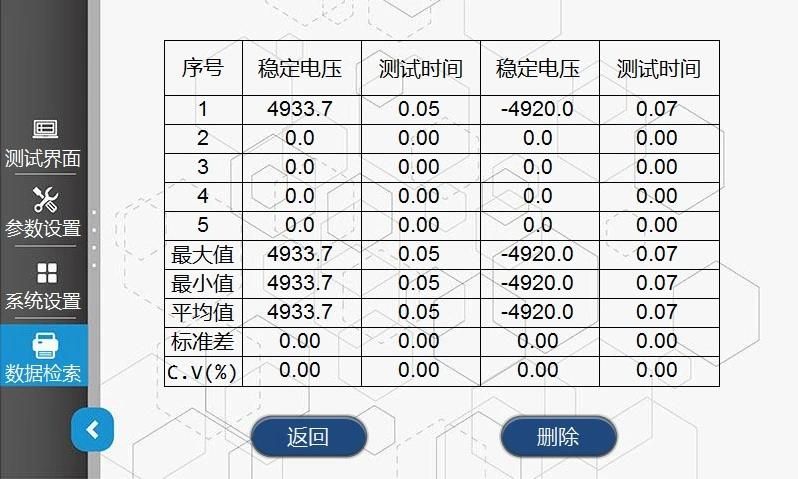

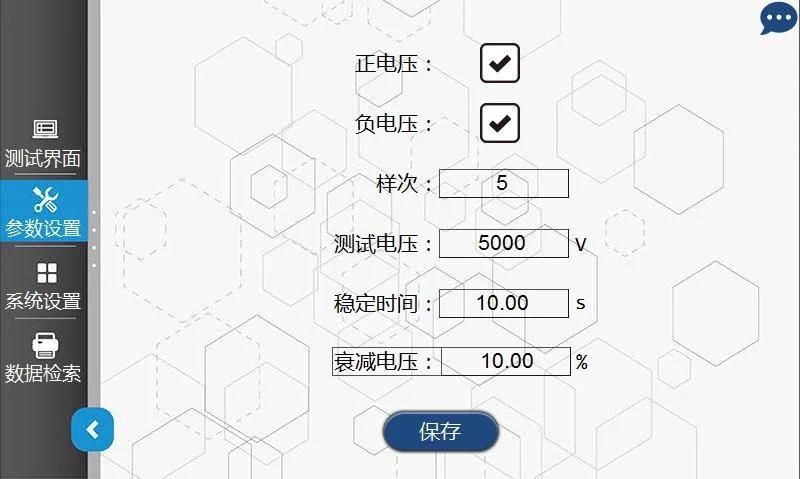

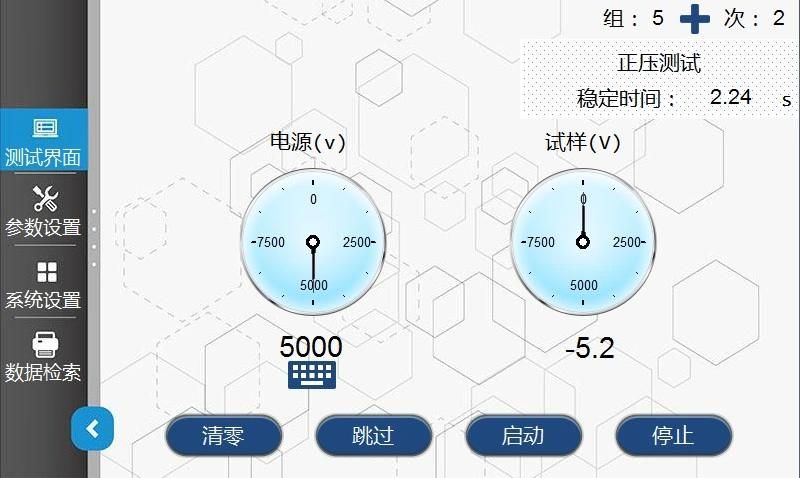

[Operation interface Example] :
