• Model NO.：HJ-2
• Power Source：AC220V
• Action Stroke：10mm (Fixed)
• Working Height Adjustment Range：100mm
• Fixture Holding Capacity：400*300mm
• Probe Installation Range：350*250mm
• Test Speed：60-300rpm
• Probe Height Adjustment：15mm
• Number of Probes：15 (Expandable to 120)
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-2 Power Source AC220V Action Stroke 10mm (Fixed) Working Height Adjustment Range 100mm Fixture Holding Capacity 400*300mm Probe Installation Range 350*250mm Test Speed 60-300rpm Probe Height Adjustment 15mm Number of Probes 15 (Expandable to 120) Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Product Application

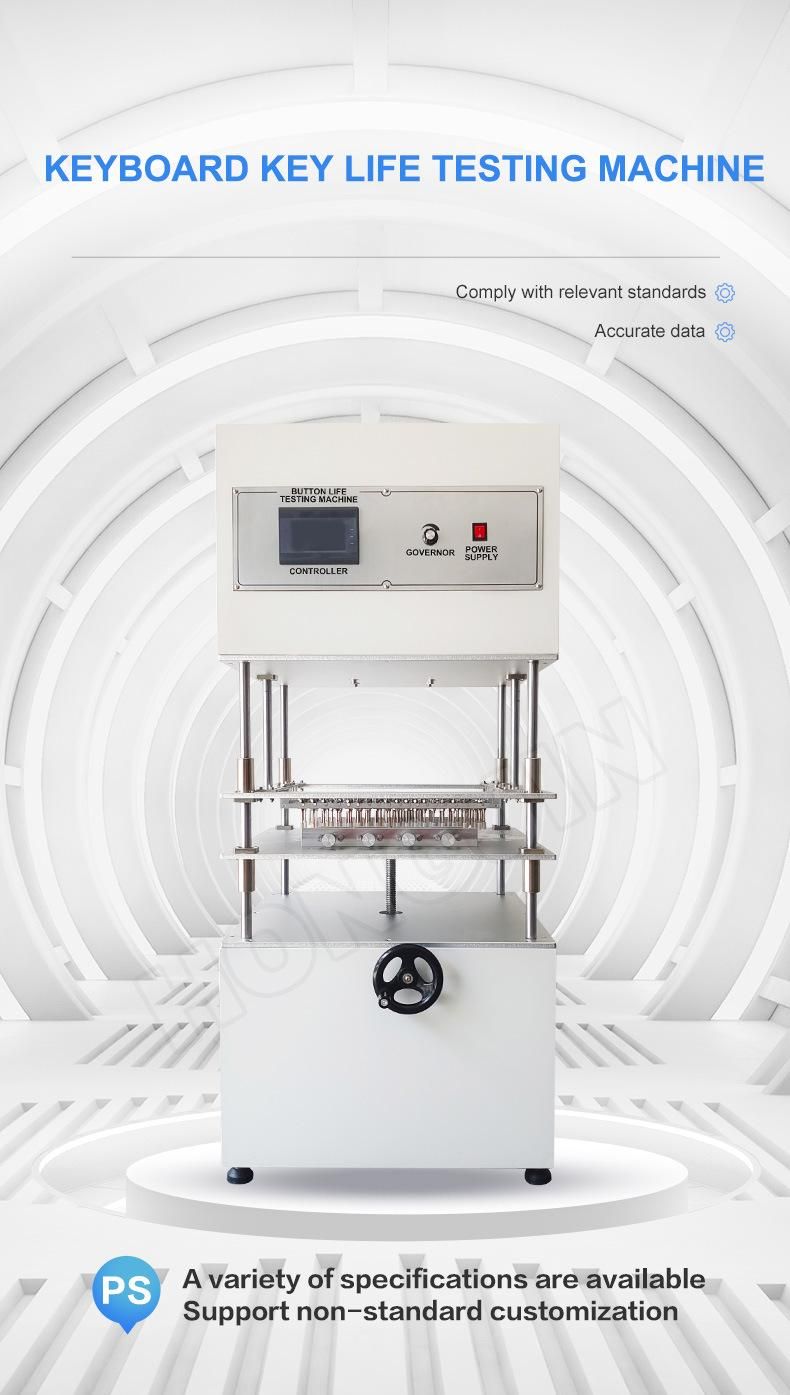

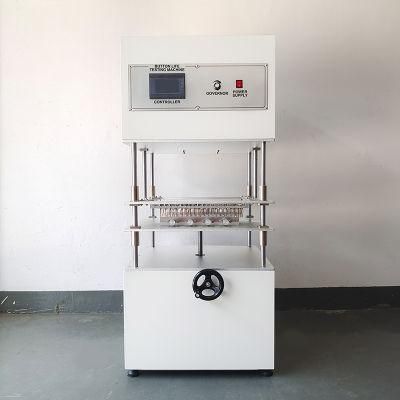

This machine is suitable for NOTE-BOOK laptop, mobile phone, walkie-talkie, electronic dictionary, computer and other buttons and various buttons and switches for life test. At the same time, it is suitable for silicone rubber manufacturers to test the life of the button

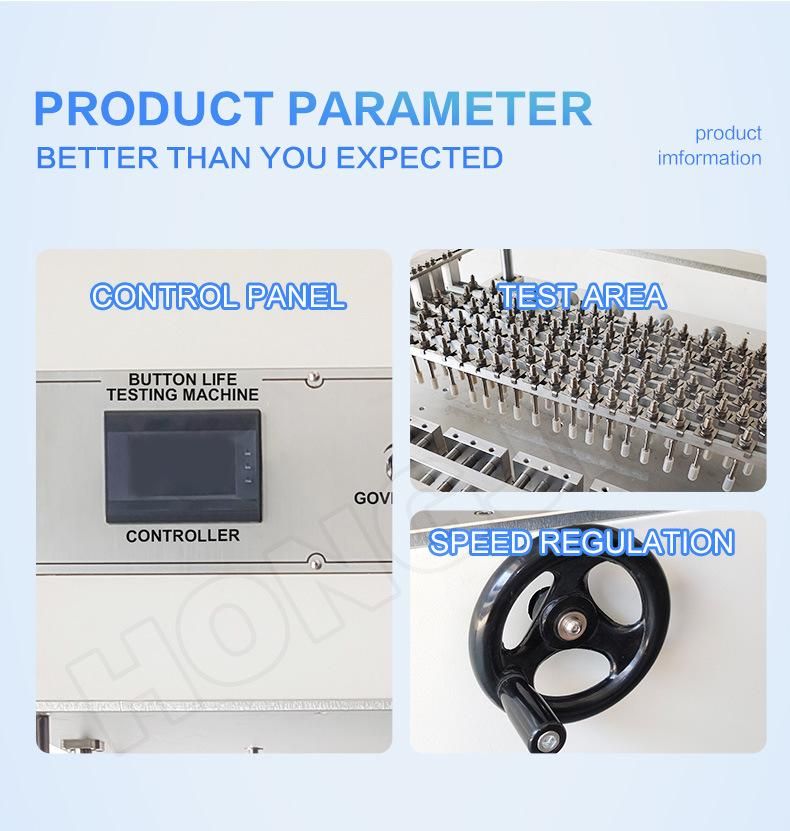

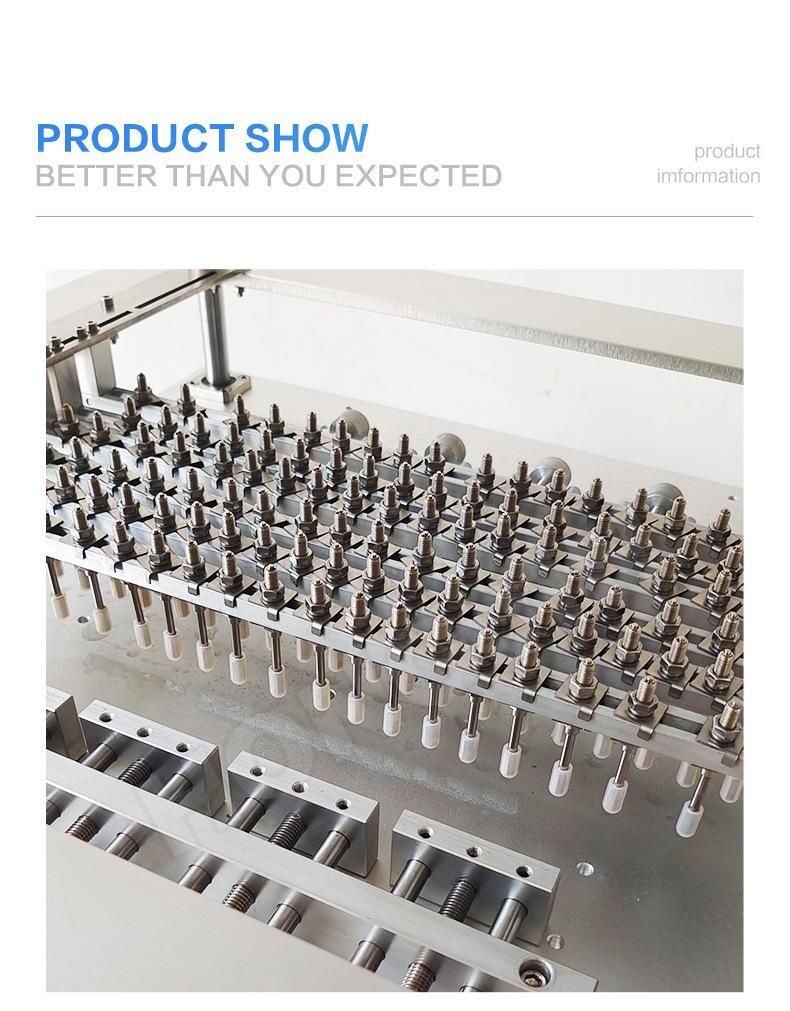

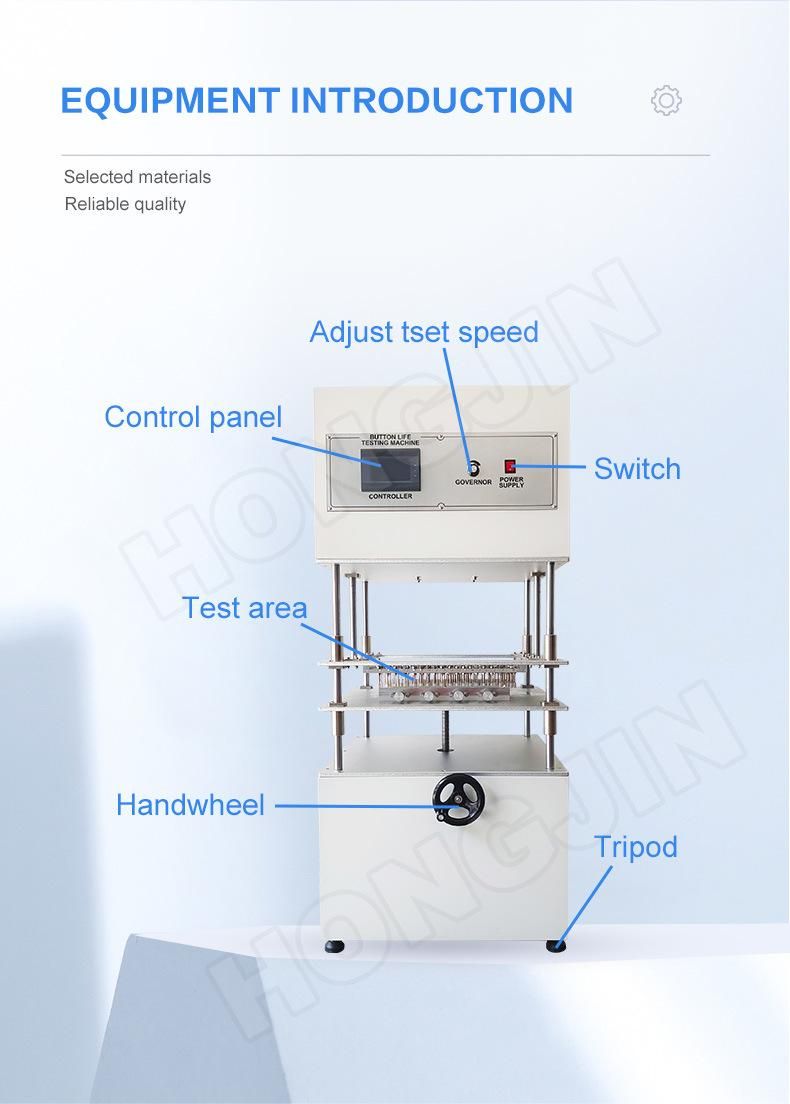

With adjustable speed, the number of times can be set arbitrarily, and several products can be tested at the same time (each product can be tested at multiple points). In addition, each button can be set to different pressures and different heights. At the same time, it adopts separate control of each test head, special fixture design, and humanized operation, which can meet the different test needs of customers.

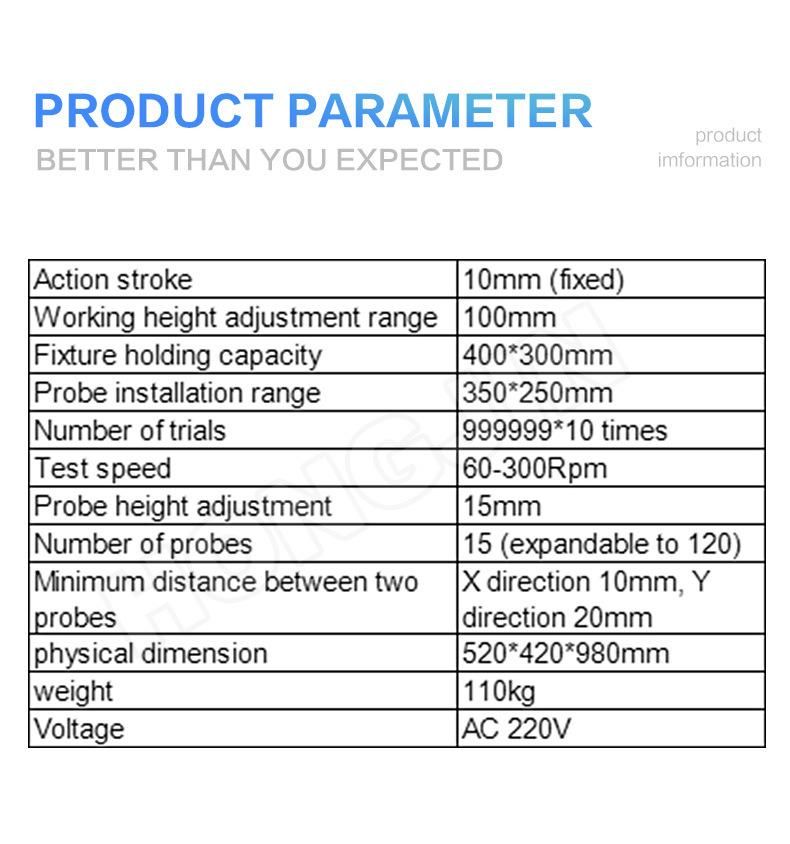

Action stroke	10mm (fixed)
Working height adjustment range	100mm
Fixture holding capacity	400*300mm
Probe installation range	350*250mm
Number of trials	999999*10 times
Test speed	60-300Rpm
Probe height adjustment	15mm
Number of probes	15 (expandable to 120)
Minimum distance between two probes	X direction 10mm, Y direction 20mm
physical dimension	520*420*980mm
weight	110kg
Voltage	AC 220V

FAQ
1.Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 12-month warranty after shipment. Generally,we offer 12 months for the FREE maintenance, while considering of sea transportation,If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem,we can send you new spare parts or provide on-site repair.

2.. What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 7-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
